11、REAR COVER COMPONENT

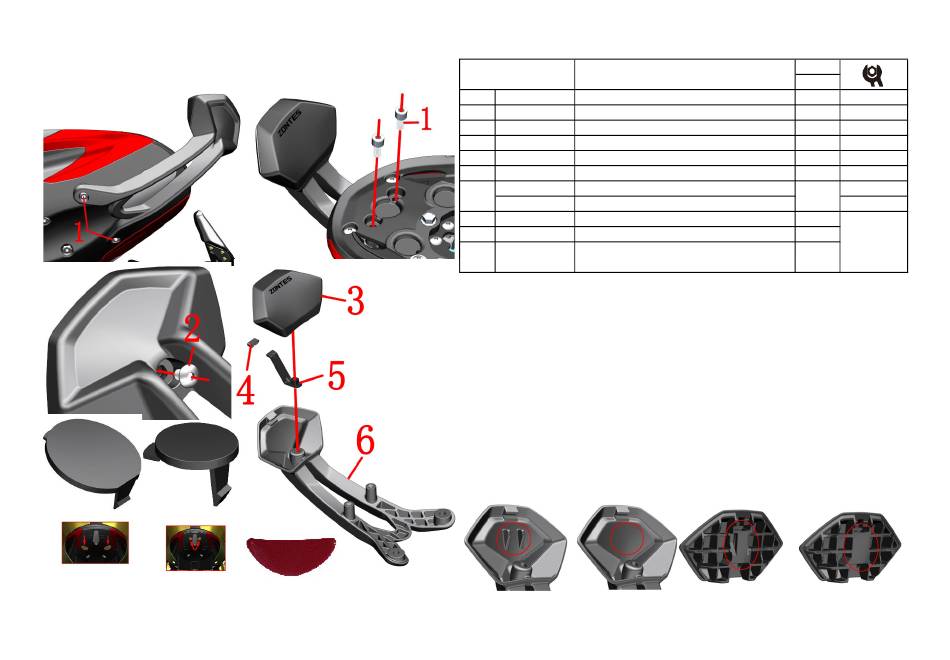

Fig.3 REAR COVER
COMPONENT
PROCEDURE:
●Backrest assembly componen
Remove the bottom two bolts ⑴.
Support the backrest assembly and remove the upper two bolts ⑴.Remove the backrest assembly from the
vehicle.
Flip to the back and remove the bolts ⑵.
Divided the backrest ⑹ and backrest rubber ⑶.
Remove the holder ⑸ from the backrest.Remove buffer ⑷ from the holder.
●without backrest
If without the backrest will send four units small cover and double tape to block up the hole of the rear backrest.
CAUTION:
●Remove the side cover, seat cushion, and cover decoration cover in advance.
●The material should be protected during discomponent to prevent damage to the paint.
●If want to change the old backrest rubber as the new one Need to polish off the two convex boss on old
backrest.
9
NO. PART NO.
1 1250205-040095 GB70.1 inner hex bolt M8×16（color Zinc）
2 1251100-101000 non-standard bolt M6×12 (304 stainless steel)
3 1244200-062000 Zt310-v rear backrest rubber
4 1244200-005000 ZT310－R buffer rubber of head cover
5 1274200-146000
Zt310-v rear backrest rubber holder
4024200-053051
Zt310-v rear backrest
6
4024200-074051 Zt310-v rear backrest (dark gray matte)
7 4044201-257051
Zt310-v rear decoration cover front cover
8 4044201-258051
Zt310-v rear decoration cover rear cover
Double sided tape for the front small cover of the rear
9 1244200-090000
decoration cover
Old backrest New backrest
CHK

Backrest assembly componen

ADJ
PART NAME QTY
4
1
1
1
1
1
2
2
4
Old backrest rubber New backrest rubber
97
CAUTION
without
backrest
