6、COOLING SYSTEM COMPONENT

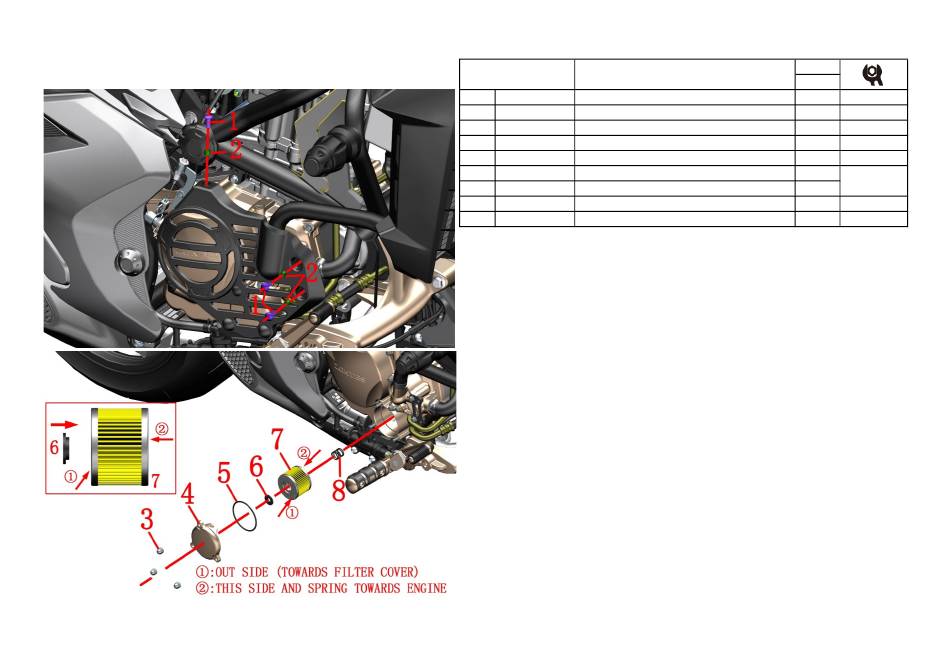

Fig.2 COOLING SYSTEM
COMPONENT
NO. PART NO.
1 1251100-102000 non-standard bolt M6×16（304 stainless steel）
2 1274100-018000 anti-hot plate sleeve, muffler
3 1251300-056093 M6 Cover type 9 degree nut
4 4050954-002000 ZT180MN Engine oil refined filter cover（Titanium）
5 1051454-004000 55×2.5 O-ring
6 1051454-005000 ZT180MN Engine oil refined filter seal ring
7 1050854-005000 ZT180 refined filter seal component
8 1050853-009000 Φ16.4×17×1.6 Spring for filter
PROCEDURE:
● Engine decorative cover assembly
Remove 3 pieces bolts ⑴ respectively,after taking off the bushing ⑵,and take off the engine decorative cover
assembly.
●Change engine oil filter
Place holder to collect wasted engine oil under right crankcase cover.
Disassemble nut ⑶ with tool. Rotate slightly engine oil refined filter cover ⑷ and take it off when it is loosen.
Take off seal ring ⑹. Change engine oil filter ⑺.
Check if seal ring ⑸ is broken. Change the seal ring ⑶ along with engine oil filter is suggested.
When reassembling, pleas check carefully if the spring ⑻, seal ring ⑹ are well installed. Engine oil filter can
not be turned over when assembling.
Torque of cover type nut ⑶ is 12±1.5N.m.
CAUTION:
●Ensure every component is well assembled.
●To change engine oil filter and seal ring⑸ at the same time is suggested.
●Engine oil filter can not be turned over when assembling.
● Note that the seal ring ⑹ is facing the fine filter with the "OUT SIDE (TOWARDS FILTER COVER)" side.
It is forbidden to install reverse or leak.
●【1】The ZT180 refined filter seal component already included oil filter、55×2.5 O-ring ⑸ and ZT180MN
Engine oil refined filter seal ring⑹ .
CHK

Change engine oil filter

ADJ
PART NAME QTY
3
3
3
1
1
1
1
1
51
CAUTION
12±1.5N.m
after-sale
【1】
