5、FOOT PEDAL COMPONENT

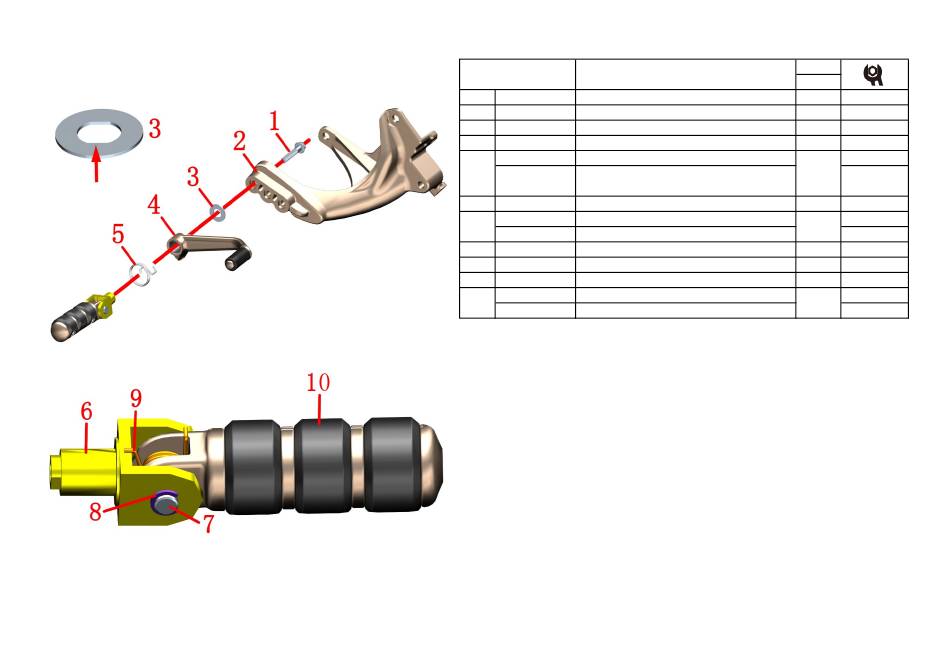

Fig.5 FOOT PEDAL
COMPONENT
NO. PART NO.
1 1250105-150093 GB5789M8×45（environmental color）
2 1274200-093000 ZT310-V Front right pedal bracket
3 1251500-048000 ZT250－S Foot pedal holder washer
1274200-178000 ZT310-V The second generation brake pedal
4
ZT310-V The second generation brake pedal (dark
1274200-293000
gray)
5 1260100-232000 Brake pedal torsion spring(Environmental color zinc)
1274100-035000 ZT250－S Foot pedal holder
6
1271200-161000 ZT250－S Foot pedal holder (dark gray)
7 1274100-012000 ZT250－S foot pedal pin axle
8 1264100-006000 ZT250－S foot pedal spring
9 1264100-004000 ZT250－S R, front pedal spring
1274200-224000 ZY310-V Front right pedal assembly
10
4064200-006051 ZY310-V Front right pedal assembly (dark gray matte)
PROCEDURE:
●Front right pedal bracket component
Refer to the steps above of removing the pedal bracket component.
Use the seelve to remove the bolt ⑴ , Take off the bearing gasket ⑶ ,brake pedal ⑷ ,brake pedal torsion spring
⑸ and the order of front right pedal assembly.
●Front right pedal component
Remove the circlip ⑻,after taking off pin ⑺, separate the pedal bearing ⑹, torsion spring ⑼ and front right
pedal assembly ⑽ .
CAUTION:
●The bearing washer and the boss of the support should be placed and assembled.
●The pedal torsion spring and the brake pedal torsion spring pay attention to the installation direction.
CHK
Front right footrest component
ADJ
PART NAME QTY
1
1
1
1
1
1
1
1
1
1
42
CAUTION
25N.m
