ZT310(230W)
PROCEDURE:
●Horn
Take off the plug of horn① take the horn ⑶ by one hand use tool rotate the screw ⑴ by another hand
remove the holder⑵ then take off the horn.
●Flameout switch
Find and take off the plug of the flameout swich
. Using the inner hexagon tool, remove the bolts ⑻、the holder ⑹ and the flameout switch ⑺ .
●Rectifier
Find and remove the rectifier plug, remove the bolt ⑽, remove the outlet pipe bracket ⑾; remove the
bolt ⑼ and remove the rectifier ⑿. Note that the rectifier is not universal.
●Ignition coil
First remove the oxygen sensor cable tie from the high pressure package bracket ⒀. Then pull out the
metal shield cap of the ignition coil ⒂ from the spark plug ⒄ on the engine, and then remove the bolt ⒃
with a Phillips screwdriver to remove the coil ⒂. Remove the bolt ⒁ and remove the high pressure
package bracket ⒀.
press and take off the cable clip cut ribbon
⑹ ⑷

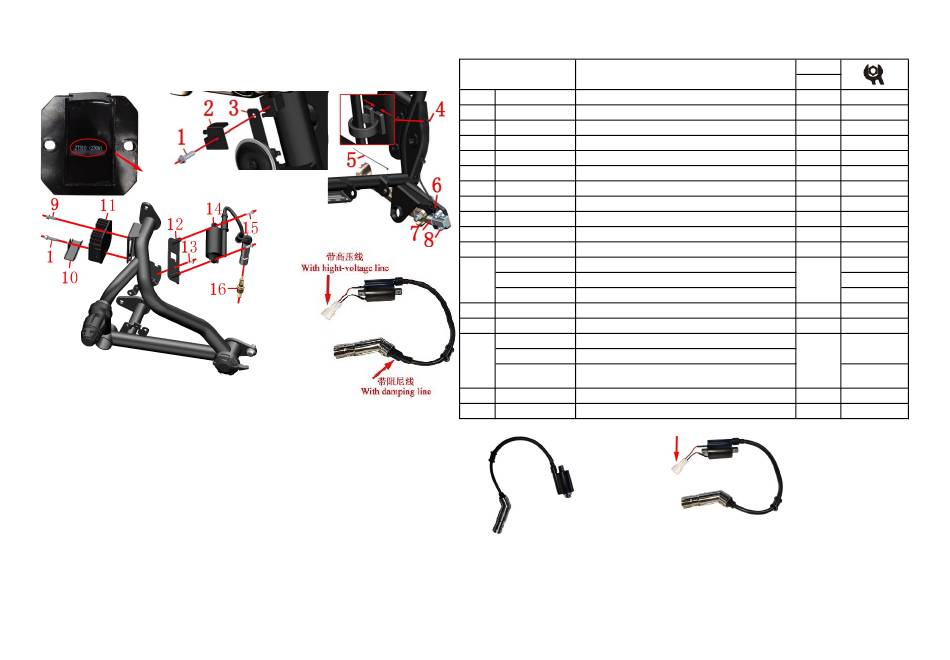

1、FRAME COMPONENT
Fig.2 FRAME&ELECTRONIC
PARTS COMPONENT
NO. PART NO.
1 1251100-061093 M6×22 Screw bolt
2 1274200-033000 ZT310－R No.2 holder of front disc oil pipe
3 1184200-004000 ZT310 Horn
4 1274100-017000 ZT250－S Cable clip
5 1224100-037000 0 level antiflaming binding（black 3.6×295）
6 1274100-095000 ZT250－S Holder of flameout switch cable
7 1184100-012000 ZT250－S Flameout switch
8 1250205-040095 GB70.1M8×16 Screw
9 1251112-001093 M6×16 Hexagon flange bolts (color zinc)
10 1274200-183000 ZT310-V outlet pipe bracket
1184200-033000 ZT310－R Rectifier（Lithium）
11
1184200-133000 ZT310 Rectifier（230W）
1184200-174000 ZT310 rectifier (five wire)
12 1274200-141000 ZT310-V high voltage package bracket
13 1251100-101000 Non-standard bolt M6×12（304 stainless steel）
1184200-108000 ZT310 EFI ignition coil
1184200-104007 ZT310 EFI ignition coil (with high voltage line)
14
ZT310 EFI ignition coil (with high-voltage wire/with
1184200-177000
damping wire)
15 1250201-032093 GB818M5×16 bolt
16 1050954-017000 LDK8RTIP－0.8 sparking plug
⑸
ZT310 EFI ignition coil
CAUTION：
● The ignition coil needs to distinguish whether it has a high voltage line. If your vehicle uses an ignition coil
without a high-voltage line, you must replace the main wiring harness with an ignition coil with a high-voltage
line.
● 【1】The back of rectifier printed "ZT310(230W)" for the large magnetic motor version.
CHK
Electronic parts COMPONENT-2
ADJ
PART NAME QTY
1
1
1
2
2
1
1
2
1
1
1
1
1
1
2
1
ZT310 EFI ignition
coil (with high
voltage line)
8
CAUTION
【1】
Old
New
