Zontes ZT310-V Service Manual page 25

3、INTAKE SYSTEM COMPONENT

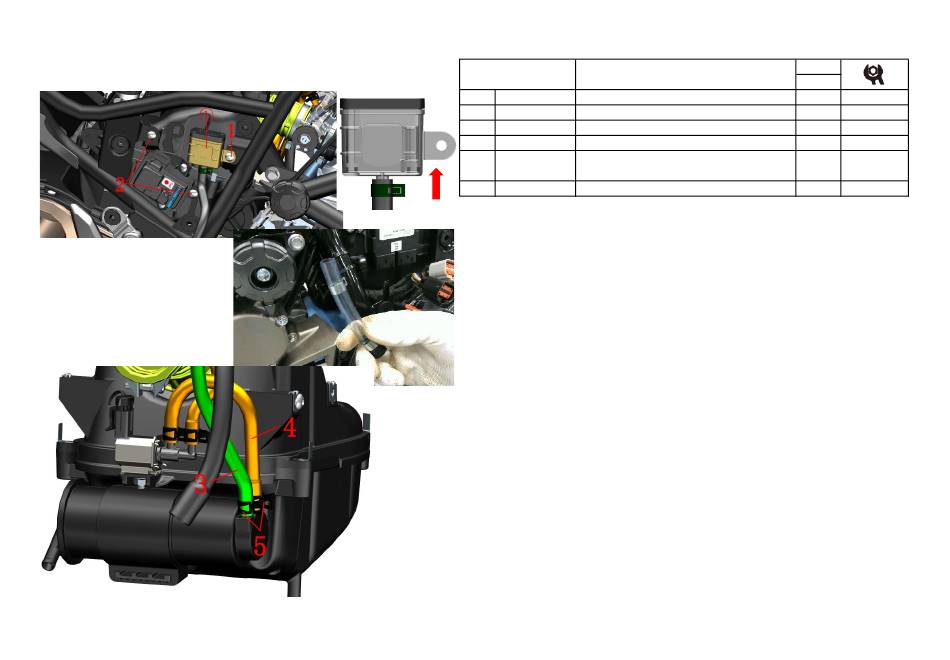

Fig.10 INDUCTION
SYSTEM COMPONENT
NO. PART NO.
1 1251100-102000 Non-standard bolt M6×16（304stainless steel）
2 1251100-101000 Non-standard bolt M6×12（304stainless steel）
3 1244200-095000 ZT310-V carbon Tank adsorption Tube (Φ 5 × Φ 11)
Intake Manifold of Solenoid Valve for ZT310-V
4 1244200-096000
carbon Tank (Φ 5 × Φ 11 / Φ 7 × Φ 13)
5 1274200-088000 ZT310 water pipe clamp（φ10.5）
PROCEDURE:
●Right side
Remove the bolt ⑴ at the right disc brake oil cup; move the disc brake oil cup to the side to ensure that the oil
cup cover faces upward.
Remove the two bolts ⑵ of the right PKE mainframe bracket, and arrange the cables.
●Air filter
Clamp the hoop with pliers ⑸ and remove the boss on the canister. Pull out the suction tube ⑶ and pull out the
intake pipe ⑷.
Place a rag under the air filter and use a needle-nose pliers to pull out the waste tubing at the bottom.
CAUTION:
● Always keep the disc brake oil cup cover facing up.
● When pulling out the tube, you should not directly clamp it with a nipper pliers to prevent leakage or oil
leakage.
CHK
Replace the air filter element (Bosch) 2
ADJ
PART NAME QTY
1
2
1
1
2
24
CAUTION
