5、FOOT PEDAL COMPONENT

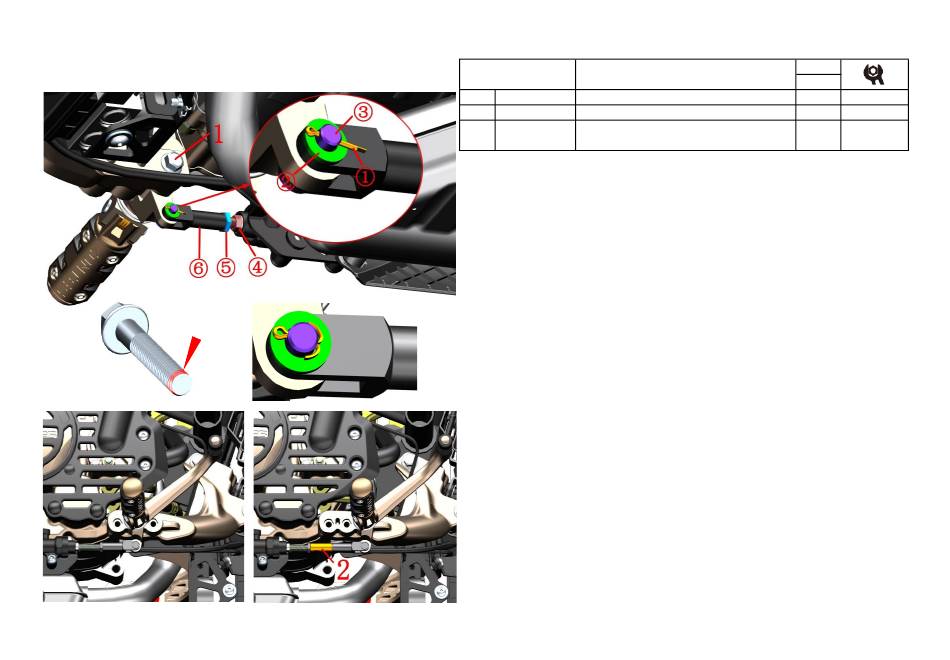

Fig.3 FOOT PEDAL
COMPONENT
NO.
PART NO.
1
1250105-150093 GB5789M8×45(environmental color)
ZT310-V rear brake main pump piston push rod
2
1274200-170000
extension rod
PROCEDURE:
●Move forward to one mounting hole for the front right pedal.
Take the cotter pin① straight and take off it,after taking off the gasket② and then take off the pin③.
After pulling out the front right pedal bracket component, use the 12# plum wrench to remove the bolt ⑴ inside
of front right pedal bracket.
Install the front right pedal assembly one hole forward, apply a proper amount of threaded rubber to the
threaded head of the bolt ⑴ and tighten it.
Loosen the lock nut⑤,adjust the brake pedal to the suitable height and fasten it with one hand, rotates the fork
joint ⑥ to the proper position to replace the pin ③, the gasket ② and the split pin ① with the other hand; the
cotter pin needs to bend the two legs to both sides.
Confirm the position and lock the nut ⑤. If it is not suitable to adjust the height of the brake pedal on the
previous page, rotate the adjusting screw ④ to fine-tune.
●Move forward to tao mounting holes for the front right pedal.
It is the same as the step of above,The difference is that an extra length rod ⑵ is required between the fork joint
⑥ and the lock nut ⑤. This extension is shipped with one standard per vehicle.
CAUTION:
●Ensure the motorcycle is well supported during manipulation. Avoid falling accident.
●The height of brake pedal should be ajusted to a suitable range. Otherwise the durance of braking shoe and
plate would be influenced. In severe case, ineffective braking is possible.
Front right pedal mounting position adjustment 3
PART NAME
40
CHK
ADJ
QTY
CAUTION
1
25N.m
1
