7、FRONT FORK COMPONENT

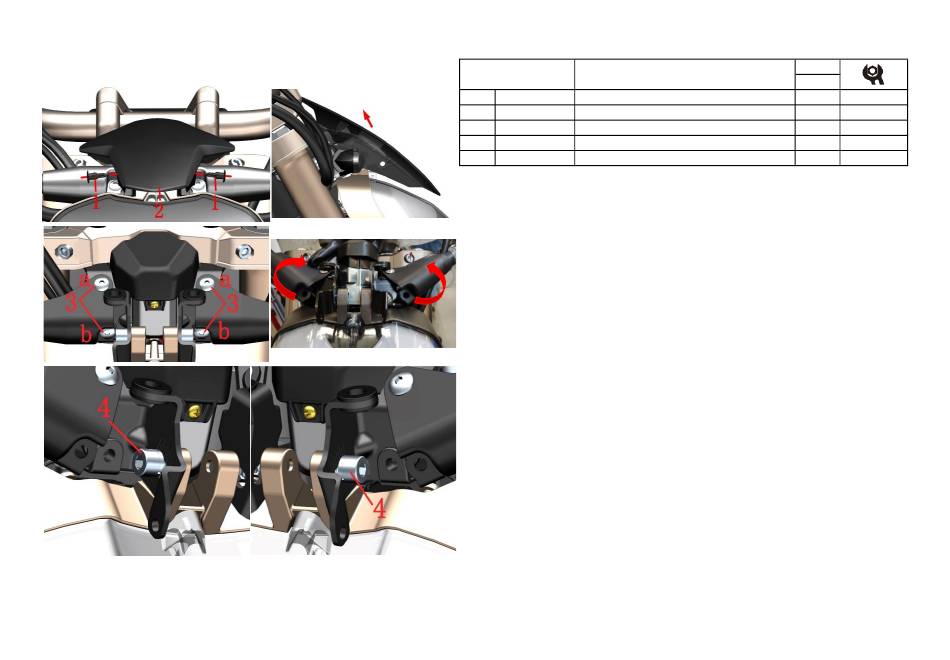

Fig.2 FRONT FORK
COMPONENT
NO.
PART NO.
1
1224100-010000 ZT250-S swell nail
2
1224200-117000 Decorative hood over ZT310-V headlamp
3
1251100-102000 non-standard bolt M6×16(304 stainless steel)
4
1250205-040095 GB70.1 inner hex bolt M8×16(color Zinc)
PROCEDURE:
●Decorative hood over headlamp
Remove the center of the expansion screw ⑴ and remove it.
Pull the headlight cover ⑵ in the direction of the arrow。
●Light height adjustment
Remove the two bolts ⑶ at b; loosen the two bolts ⑶ at a. Rotate the two turn signal assemblies up to expose
the head of the bolt ⑷.
The driver rides the motorcycle and the motorcycle is upright. The other person inserts a6#the inner hexagon
will loosen the bolts ⑶ on both sides and adjust the light to the proper position to lock.
Note that tick marks aligned on both sides.
CAUTION:
●Light height adjustment should be noted as follows:
High or too high light levels can affect safe driving. The height of the lights should be properly adjusted
according to whether there are changes in the weight of the occupants and the driver.
It is forbidden to adjust the light height during riding. It is advisable to adjust the road with a smooth road
surface and a straight line distance of about 150 meters without affecting traffic safety at night.
CHK

Light height adjustment

ADJ
PART NAME
QTY
2
1
4
2
61
CAUTION
