Zontes ZT310-V Service Manual page 91

9、SIDE COVER COMPONENT

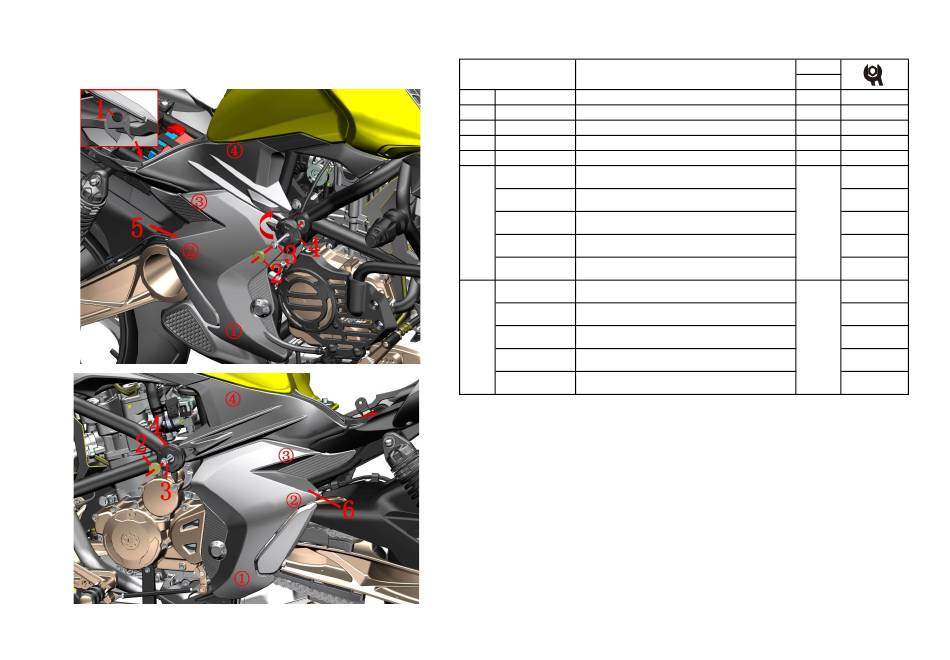

Fig.1 SIDE COVER
COMPONENT
NO. PART NO.
1 1224100-010000 ZT250-S Expansion nail
2 1244100-061000 ZT250 anti-water rubber of frame
3 1250105-018091 GB5789 M8×70（white zinc）
4 4044201-256051 ZT310－V Bumper decorative ball（Dark gray matte）
ZT310－V Right side cover（Dark gray matte/Red
4044201-301051
stickers/V310）
ZT310－V Right side cover（Dark gray matte/Yellow
4044201-303051
stickers/V310）
ZT310－V Right side cover（Dark gray matte/Black
5
4044201-297051
stickers/V310）
ZT310－V Right side cover（Dark gray matte/White
4044201-305051
stickers/V310）
ZT310－V Right side cover（Dark gray matte/Purple
4044201-299051
stickers/V310）
ZT310－V Left side cover（Dark gray matte/Red
4044201-300051
stickers/V310）
ZT310－V Left side cover（Dark gray matte/Yellow
4044201-302051
stickers/V310）
ZT310－V Left side cover（Dark gray matte/Black
6
4044201-296051
stickers/V310）
ZT310－V Left side cover（Dark gray matte/White
4044201-304051
stickers/V310）
ZT310－V Left side cover（Dark gray matte/Purple
4044201-298052
stickers/V310）
PROCEDURE:
●Side cover
First remove the seat cushion and then remove the expansion screw ⑴ at the joint between the right side cover
⑸ and the tail cover.Remove the water stopper ⑵ and loosen the bolt ⑶ with the T12 socket without completely
removing it.Pull the decorative ball ⑷ out and turn it clockwise, stagger the groove on the right side cover.Pull
out the right side cover in the order of ①-②-③-④.
Remove the left side cover ⑹ using the same steps as above.
CAUTION:
●When inserting，install the staples by④-③-②-①; finally install the expansion screw.
