8、FUEL TANK COVER COMPONET

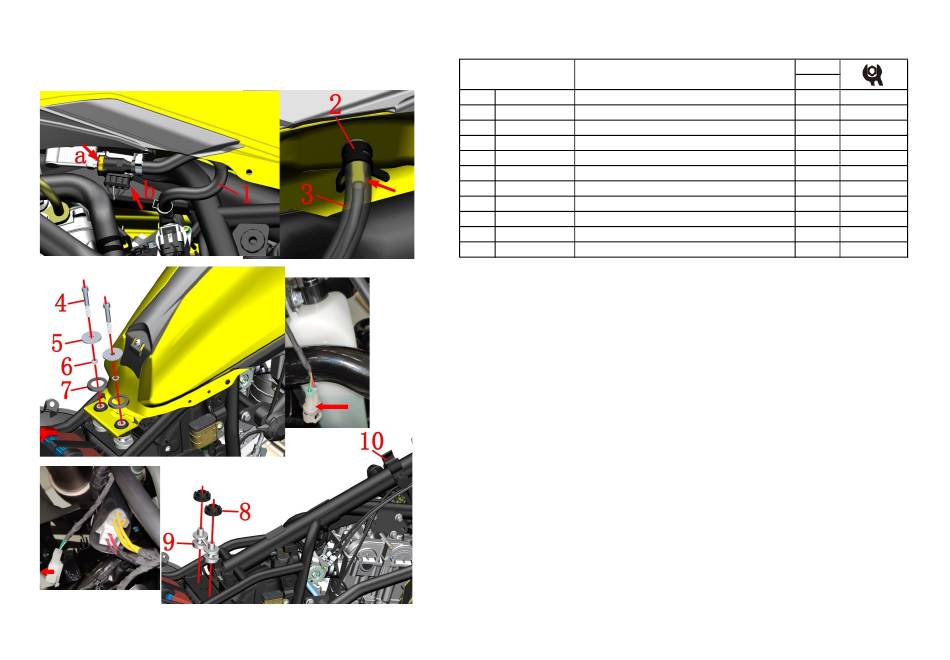

Fig. 1 FUEL TANK
COVER COMPONET
NO. PART NO.
1 1050954-027000 ZT310－V EFI high pressure tubing assembly
2 1274200-088000 ZT310 water pipe hoop (φ10.5)
3 1244200-095000 ZT310－V carbon canister adsorption tube (φ5×φ11)
4 1250205-043093 Gb70.1m8×55 (environmental color)
5 1251900-028093 ZT250－R fuel tank flat pad φ9×φ37.5×2
6 1251500-081000 Non－Standard flat pad φ13×φ8.2×1.5 ( color zinc)
7 1244100-020000 ZT250－S fuel tank pressure rubber
8 1244100-053000 ZT250－S second generation fuel tank gasket
9 1274100-080000 ZT250－R seat cushion fixing block
10 1244100-019000 ZT250－S tank inner limit rubber
PROCEDURE:
●Fuel tank assembly
Open the fuel tank cover first, and do not close it during the subsequent disassembly.If you accidentally close it,
you can find the fuel tank lock plug near the auxiliary water tank. After connecting, re-open the fuel tank cover.
Place the oil pan on the left side under the high pressure oil pipe ⑴, and press the limit buckle at the direction
fuel tank
indicated by the arrow a to pull out at the rear of the car.
lock plug
Use a pair of pliers to clamp the hoop slightly at the bottom of the right tank and move it down about 30mm,
leaving the boss on the tank snorkel.Adsorption tube ⑶ Remove from the fuel tank.
Remove the bolts ⑷, remove the flat pads ⑸ and ⑹; and press the glue ⑺.The flat pad ⑹ was added in mid-
August 2019 to prevent excessive compression of the tank rubber and rubber.
Pull the fuel tank assembly slightly behind the rear and lift the rear of the fuel tank assembly up.Do not lift too
high to prevent fuel from escaping from the snorkel.Unplug the cable plug b of the oil pump.
Remove the fuel tank gasket ⑻, the seat cushion fixing block ⑼, and the tank liner limit rubber from the
frame.
CAUTION:
● The fuel tank should be protected during the disassembly process to prevent damage to the paint surface.
● Before disassembling the fuel tank assembly, it is recommended to use the oil pump to pull out the fuel or use
off the fuel
● Fireworks, telephone calls should not be allowed near the motorcycle -removal workshop to prevent
accidents.
● A small amount of fuel leaks when pulling out the high pressure tubing subassembly, and should prevent the
fuel from dripping to the outside of the engine or the muffler.
CHK

Fuel tank assembly

ADJ
PART NAME QTY
1
1
1
2
2
2
2
2
1
1
82
CAUTION
24N.m
【1】
