8、FUEL TANK COVER COMPONET

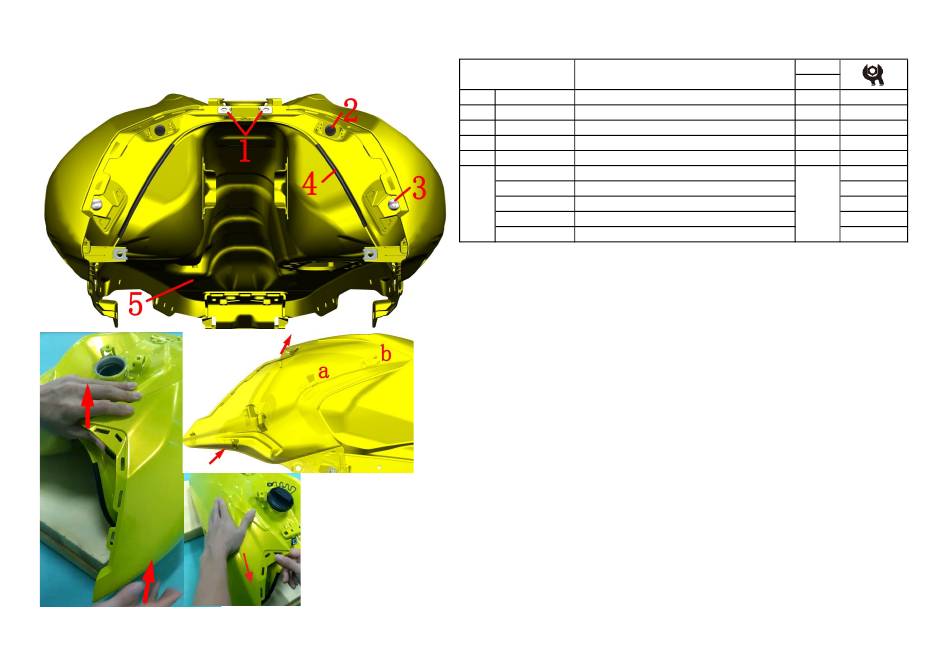

Fig. 7 FUEL TANK
COVER COMPONET
NO. PART NO.
1 1251300-063093 Splint m6×11×15 ( color zinc)
2 1224100-010000 ZT250－S expansion nail
3 1251100-101000 Non－Standard bolt m6×12 (304 stainless steel)
4 1240300-021000 HJ125－6 shroud glass strip (1.5m)
4034200-010015 ZT310－V bright red fuel tank
4034200-010031 ZT310－V bright yellow fuel tank
5
4034200-010021 ZT310－V bright black fuel tank
4034200-010002 ZT310－V bright white fuel tank
4034200-010061 ZT310－V bright purple fuel tank
PROCEDURE:
● Fuel tank decoration cover assembly
Remove the 4 plywood nuts ⑴
Remove the two expansion pins ⑵
Remove the two bolts ⑶.
As shown in the lower left corner, first push the upper part of the decorative cover upwards with the left thumb,
and tap the right hand diagonally upwards to remove the left decorative cover assembly from the fuel tank.
Remove the right decoration cover assembly in the same way.
Remove the strips on the left and right sides ⑷.
CAUTION:
● The parts should be protected during the disassembly process to prevent damage to the paint surface.
● Pay attention to the direction of force, and then remove the trim cover from the tank liner and then remove it.
● When installing, first fasten the buckles at both a and b, and then tap it diagonally downward.
CHK
Fuel tank trim cover assembly 1
ADJ
PART NAME QTY
4
2
2
0.17
1
88
CAUTION
Bright red
Bright yellow
Bright black
Bright white
Bright purple
