About the ConnectCore 6UL SBC Express
USB device with micro AB USB connector (shared with one USB host port)
o
SISO IEEE 802.11 a/b/g/n/ac + Bluetooth 4.2 dual mode interface with on-board antenna
o
Expansion:
l
Expansion connector that can accommodate Raspberry PI Hat boards
o
Three Grove connectors providing digital, ADC, and I2C connectivity
o
User interface:
l
One user LED
o
One user button
o
Dimensions:
l
87 mm x 63 mm
o

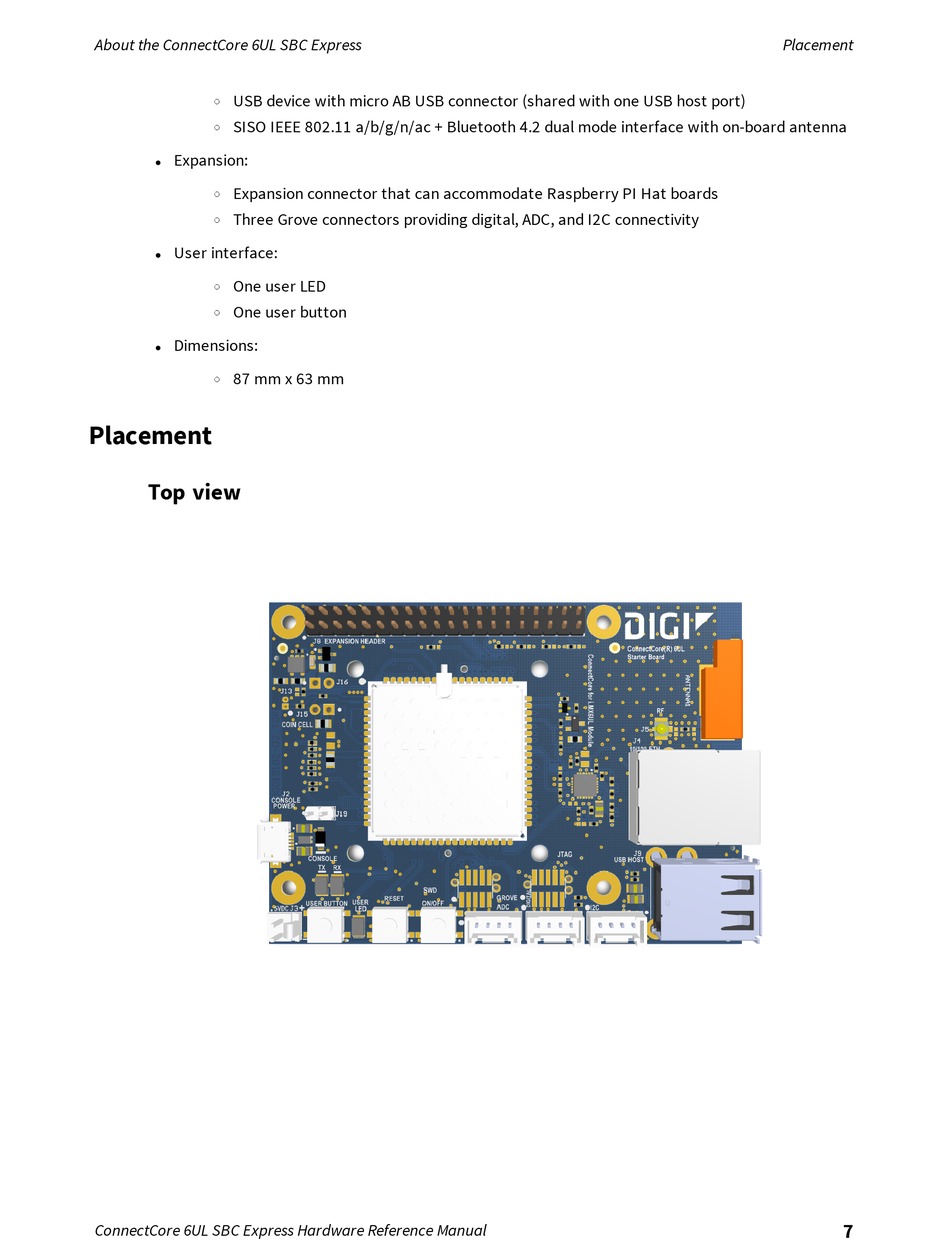

Placement
Top view
ConnectCore 6UL SBC Express Hardware Reference Manual
Placement
7
