Power and reset buttons

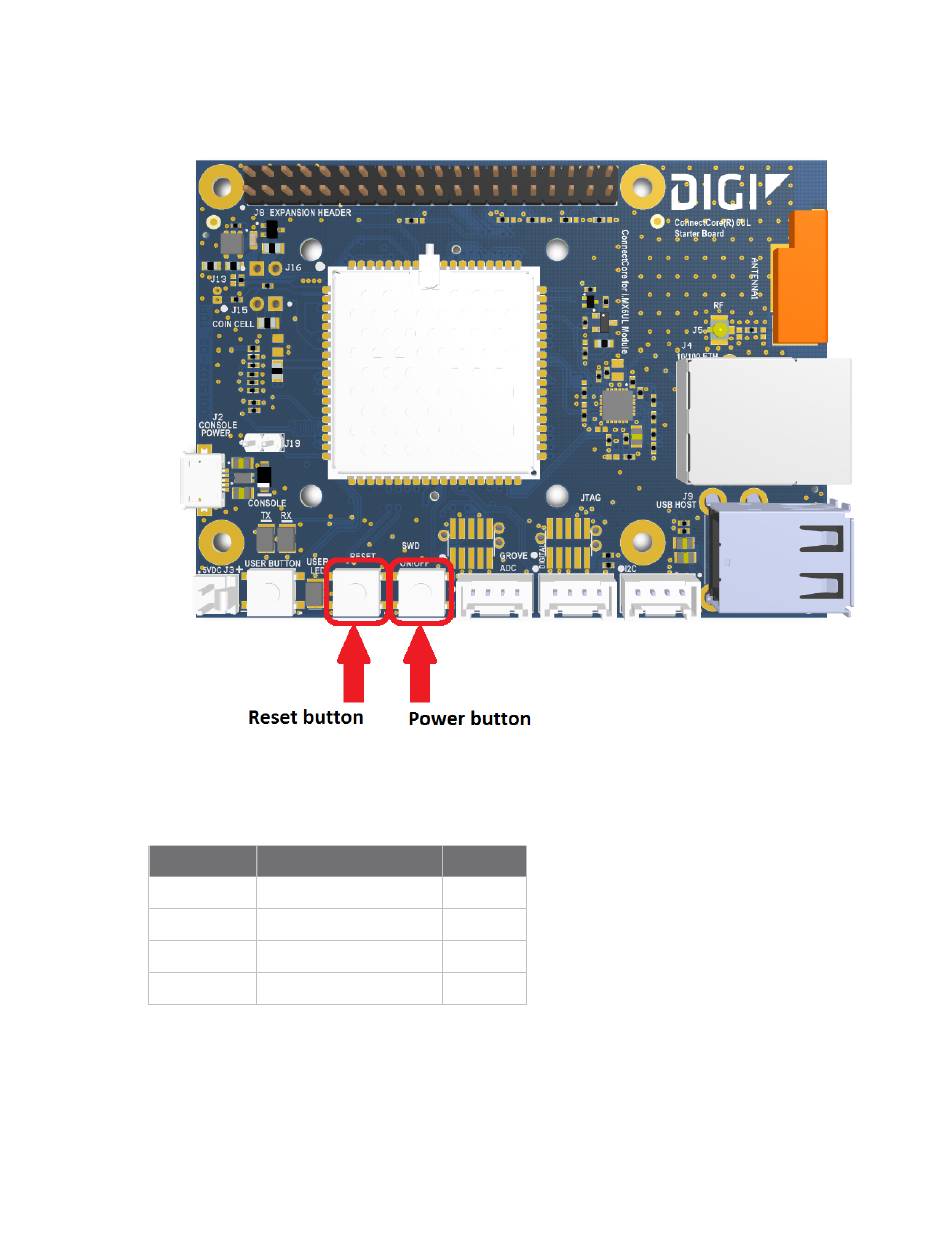

The power button on the ConnectCore 6UL SBC Express is connected to the on-module MCA, which
provides the following functionality:
Board status Power button action
OFF
Short press
ON or SLEEP
Long press for 5 seconds Power off
SLEEP
Short press
ON
Short press
You can also reset the ConnectCore 6UL System-on-module by pressing the Reset button on
the ConnectCore 6UL SBC Express.
ConnectCore 6UL SBC Express Hardware Reference Manual
Response
Power on
Wake up
Sleep
Power and reset buttons
15
