Digi ConnectCore 6UL Hardware Reference Manual page 20
Sbc express
Hide thumbs
Also See for ConnectCore 6UL:
- Hardware reference manual (135 pages) ,
- Hardware design manuallines (16 pages)
Table of Contents
Advertisement
Interfaces
Pin Signal name
5
GND
6
NC
7
NC
8
NC
9
GND
10
MCA_RESET_N
Note
J18 SWD connector manufacturing part number: SAMTEC FTSH-105-01-F-DV
The second option is the ARM 10-pin standard-compliant Tag Connect footprint on the bottom
n

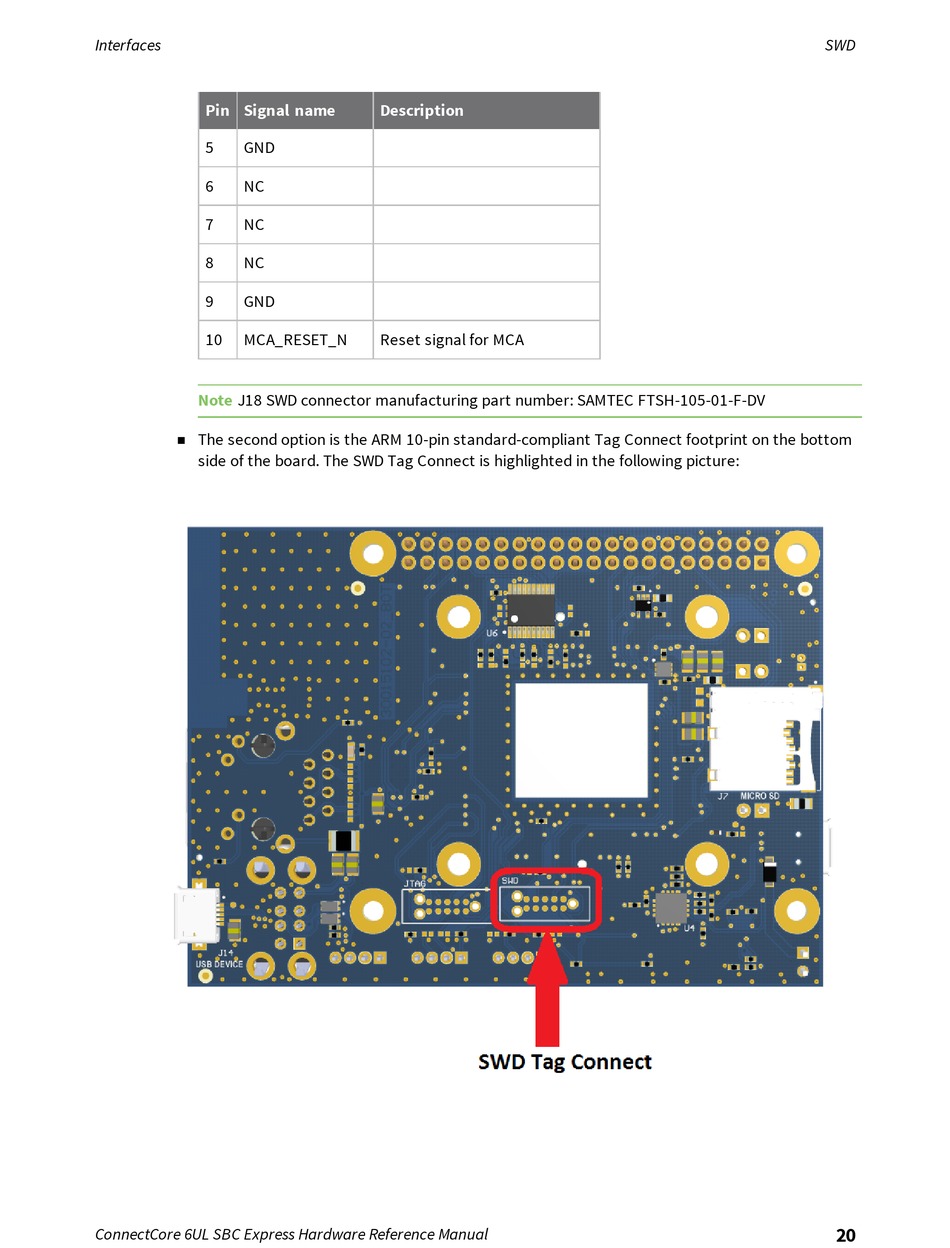

side of the board. The SWD Tag Connect is highlighted in the following picture:
ConnectCore 6UL SBC Express Hardware Reference Manual
Description
Reset signal for MCA
SWD
20
