Interfaces
USB device

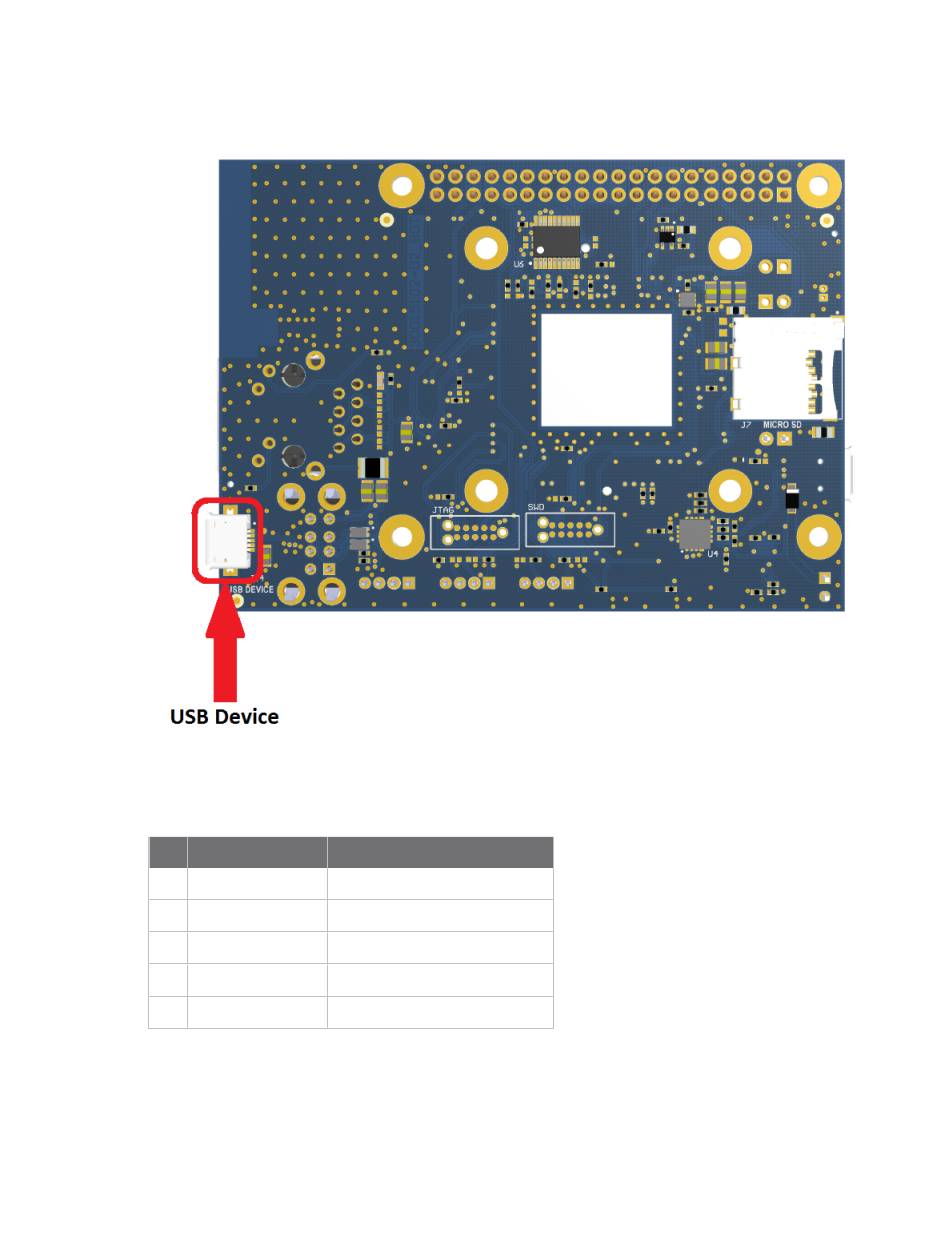

The ConnectCore 6UL SBC Express has a micro-AB type receptacle for a USB device connection. The
following table shows the pinout of the USB device connector:
Pin Signal name
1
NC
2
USB_OTG1_FIL_N USB differential data signal (-)
3
USB_OTG1_FIL_P USB differential data signal (+)
4
NC
5
GND
ConnectCore 6UL SBC Express Hardware Reference Manual
Description
USB device
