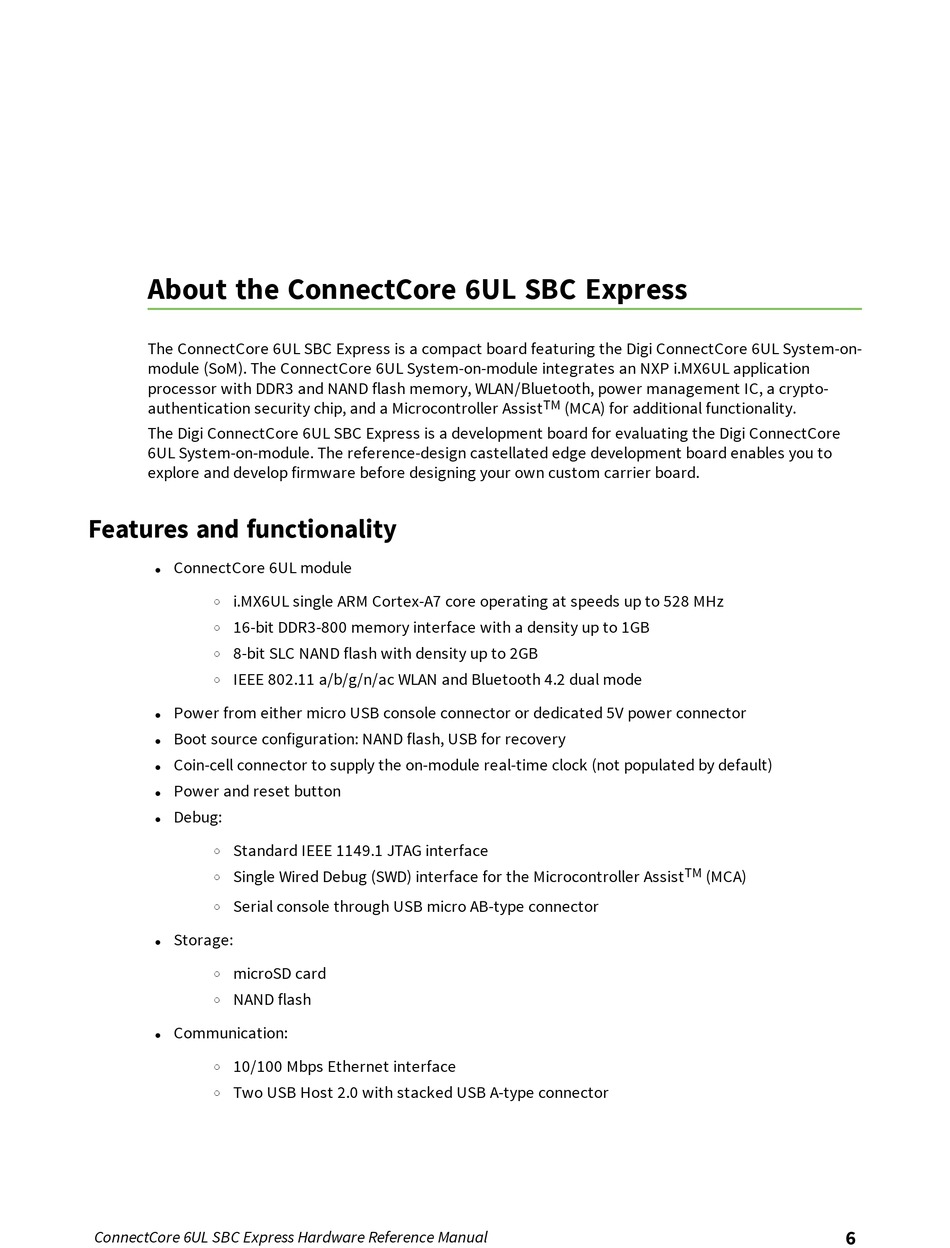

About the ConnectCore 6UL SBC Express

The ConnectCore 6UL SBC Express is a compact board featuring the Digi ConnectCore 6UL System-on-
module (SoM). The ConnectCore 6UL System-on-module integrates an NXP i.MX6UL application
processor with DDR3 and NAND flash memory, WLAN/Bluetooth, power management IC, a crypto-
authentication security chip, and a Microcontroller Assist
The Digi ConnectCore 6UL SBC Express is a development board for evaluating the Digi ConnectCore
6UL System-on-module. The reference-design castellated edge development board enables you to
explore and develop firmware before designing your own custom carrier board.

Features and functionality

ConnectCore 6UL module
l
i.MX6UL single ARM Cortex-A7 core operating at speeds up to 528 MHz
o
16-bit DDR3-800 memory interface with a density up to 1GB
o
8-bit SLC NAND flash with density up to 2GB
o
IEEE 802.11 a/b/g/n/ac WLAN and Bluetooth 4.2 dual mode
o
Power from either micro USB console connector or dedicated 5V power connector
l
Boot source configuration: NAND flash, USB for recovery
l
Coin-cell connector to supply the on-module real-time clock (not populated by default)
l
Power and reset button
l
Debug:
l
Standard IEEE 1149.1 JTAG interface
o
Single Wired Debug (SWD) interface for the Microcontroller Assist
o
Serial console through USB micro AB-type connector
o
Storage:
l
microSD card
o
NAND flash
o
Communication:
l
10/100 Mbps Ethernet interface
o
Two USB Host 2.0 with stacked USB A-type connector
o
ConnectCore 6UL SBC Express Hardware Reference Manual
TM
(MCA) for additional functionality.
TM
(MCA)
