Interfaces

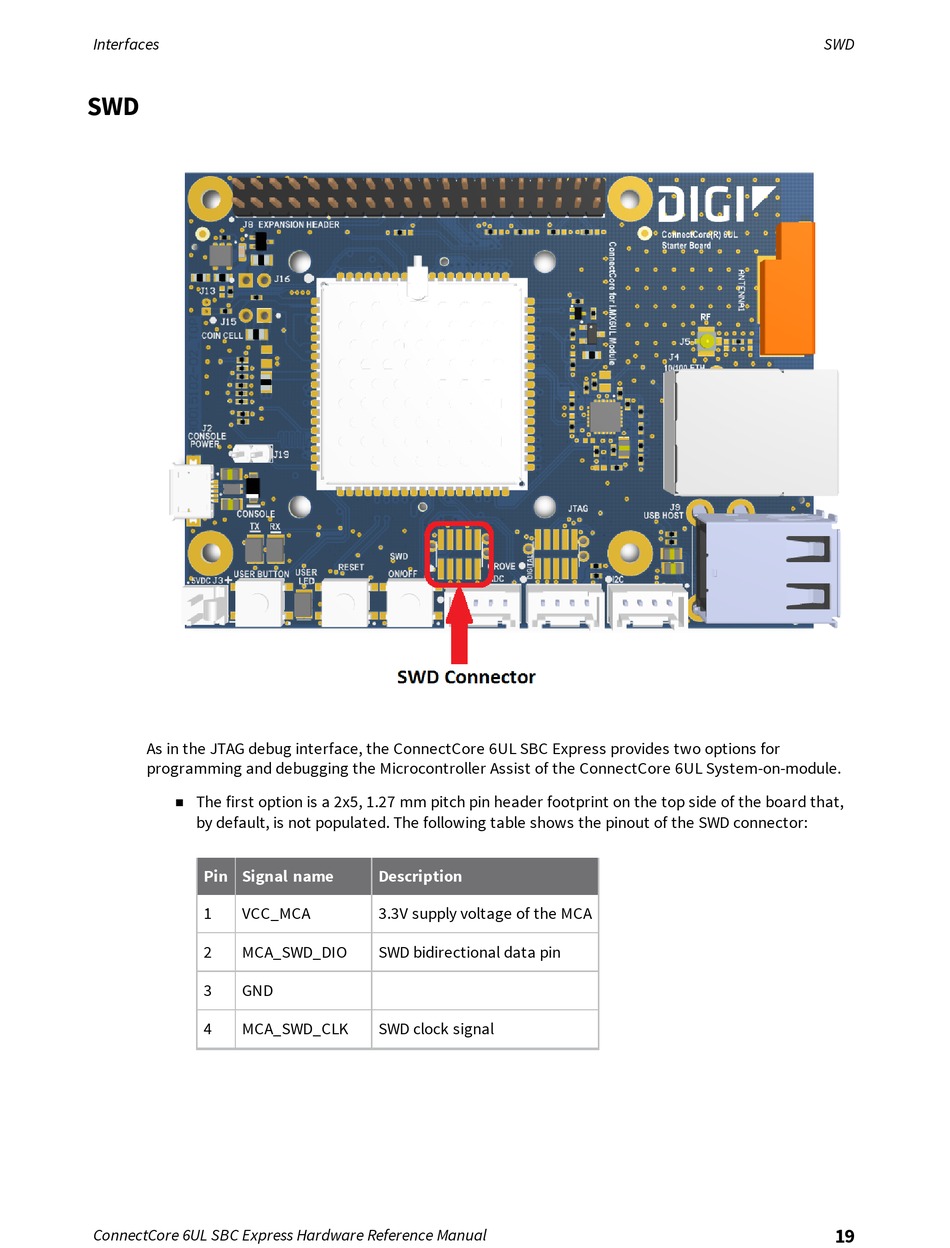

SWD

As in the JTAG debug interface, the ConnectCore 6UL SBC Express provides two options for
programming and debugging the Microcontroller Assist of the ConnectCore 6UL System-on-module.
The first option is a 2x5, 1.27 mm pitch pin header footprint on the top side of the board that,
n
by default, is not populated. The following table shows the pinout of the SWD connector:
Pin Signal name
1 VCC_MCA
2 MCA_SWD_DIO
3 GND
4 MCA_SWD_CLK
ConnectCore 6UL SBC Express Hardware Reference Manual
Description
3.3V supply voltage of the MCA
SWD bidirectional data pin
SWD clock signal
SWD
19
