Usb Host - Digi ConnectCore 6UL Hardware Reference Manual

Interfaces

USB host

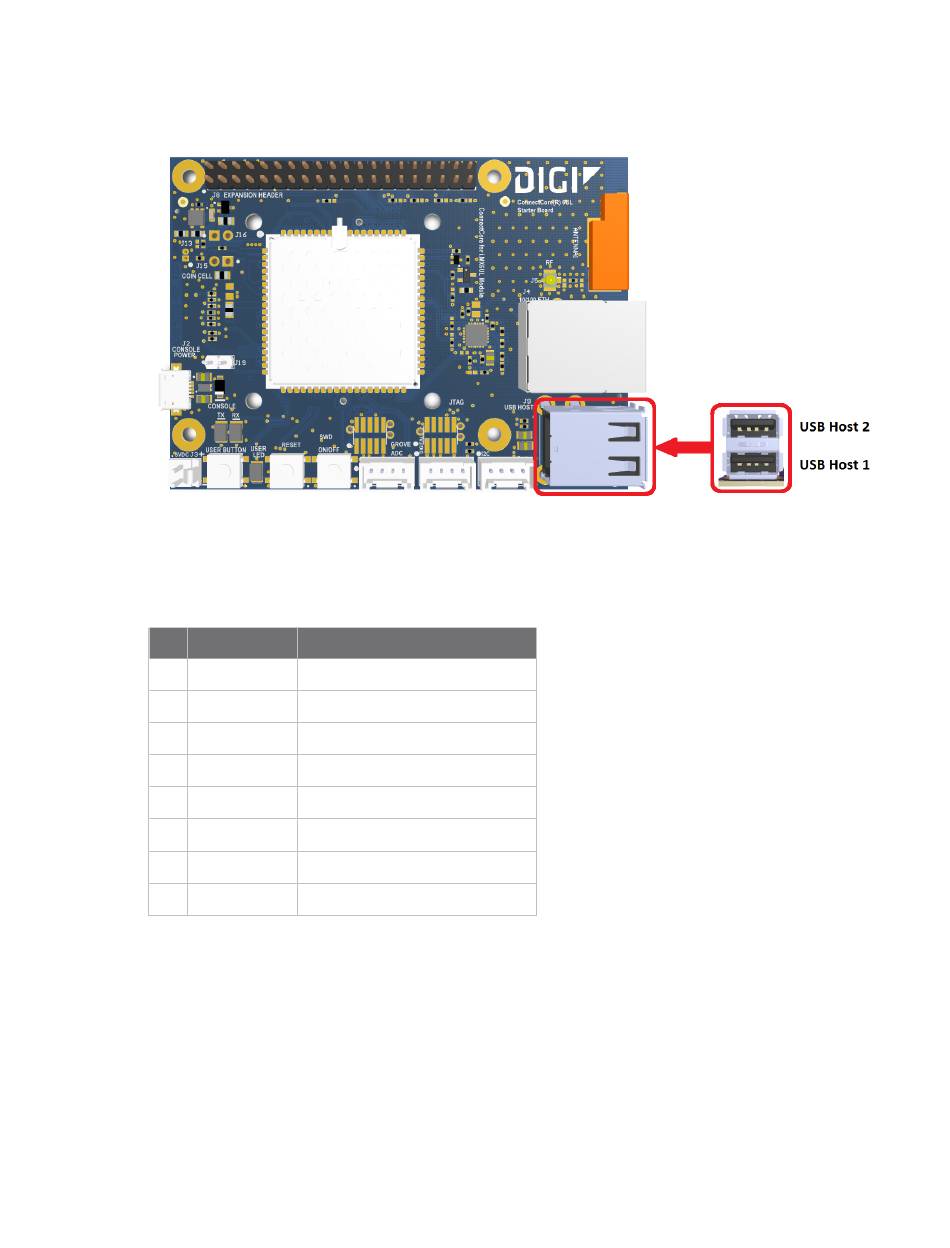

Two USB host interfaces are located on the right side of the ConnectCore 6UL SBC Express over a
stackable dual USB A-type connector. Both USB hosts can operate at high, full, and low speed. The
following table shows the pinout of the dual stackable USB host connector:
Pin Signal name
A1 VIN
A2 USB_OTG2_N USB 2 differential data signal (-)
A3 USB_OTG2_P USB 2 differential data signal (+)
A4 GND
B1 VIN
B2 USB_OTG1_N USB 1 differential data signal (-)
B3 USB_OTG1_P USB 1 differential data signal (+)
B4 GND
ConnectCore 6UL SBC Express Hardware Reference Manual
Description
5V power line
5V power line
USB host
27
