Interfaces
MicroSD

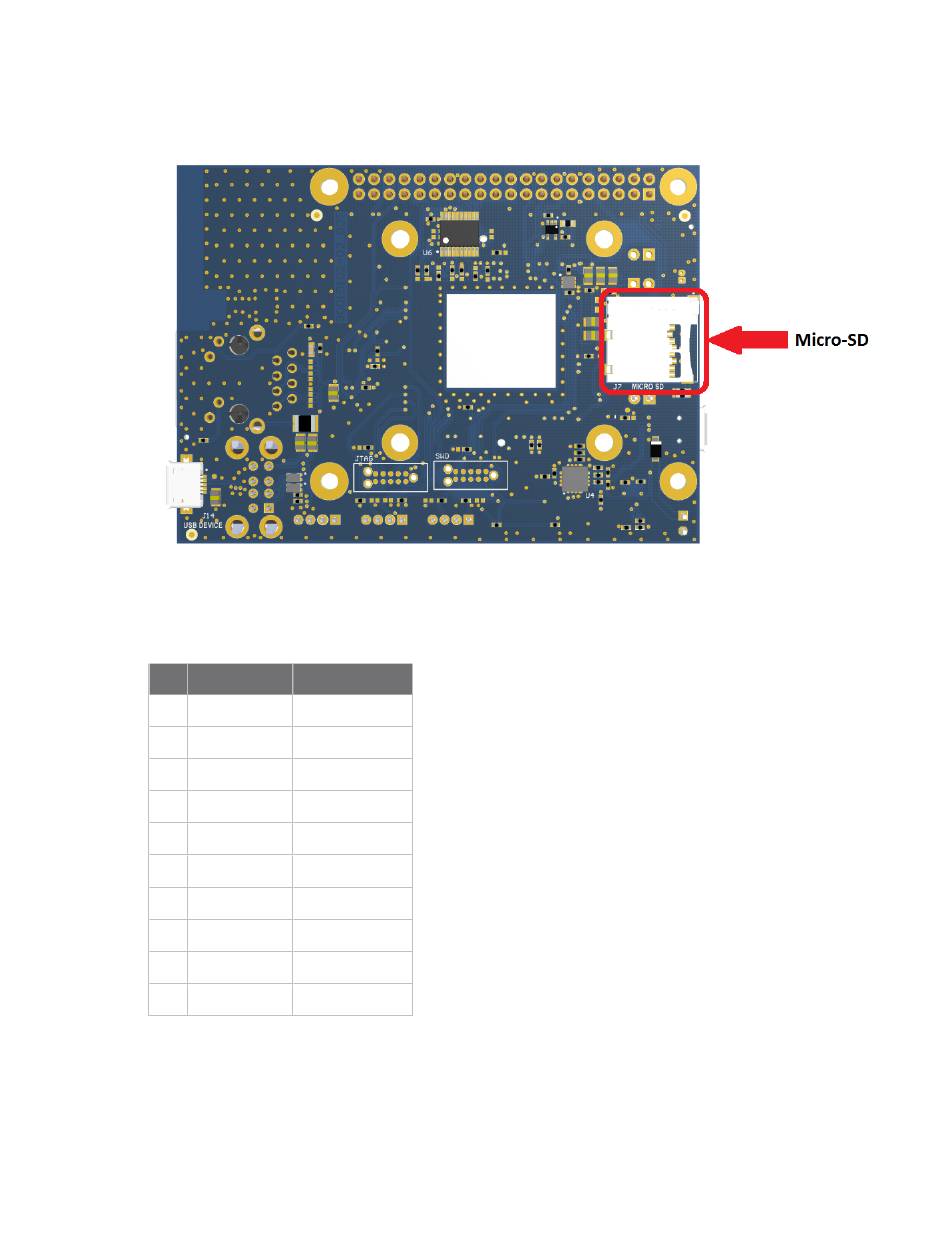

A microSD connector is located on the bottom of the board. This interface is connected to the USDHC2
controller of the i.MX6UL CPU. The following table shows the pinout of the microSD socket:
Pin Signal name Description
1
SD2_DATA2
2
SD2_DATA3
3
SD2_CMD
4
3V3
5
SD2_CLK
6
GND
7
SD2_DATA0
8
SD2_DATA1
9
GND
10
GND
ConnectCore 6UL SBC Express Hardware Reference Manual
Serial data 2
Serial data 3
Command line
3.3V power line
Serial clock
Serial data 0
Serial data 1
MicroSD
