4. Connect the MOD8 cable to the controller. Earlier you connected the other end of the

same cable to the back of the overlay.

5. Connect the DB9 end of the SMART USB adapter cable to the controller. You'll

connect the other end of this cable to your computer when you complete the

installation.

If you ordered a straight-through DB9-to-DB9 serial cable with your interactive

whiteboard, connect one end to the controller. You'll connect the other end of this

cable to a serial port on your computer when you complete the installation.

NOTE: You can order a straight-through DB9-to-DB9 serial cable from SMART

Technologies. To do this, contact Technical Support (page 39).

If you ordered the WC2 Wireless Serial Adapter (Part No. WC2-NA) with your

interactive whiteboard, connect one radio to the controller. To do this, follow the

instructions that came with your kit. You'll connect the second radio to the computer

later.

6. To complete the installation see page 27.

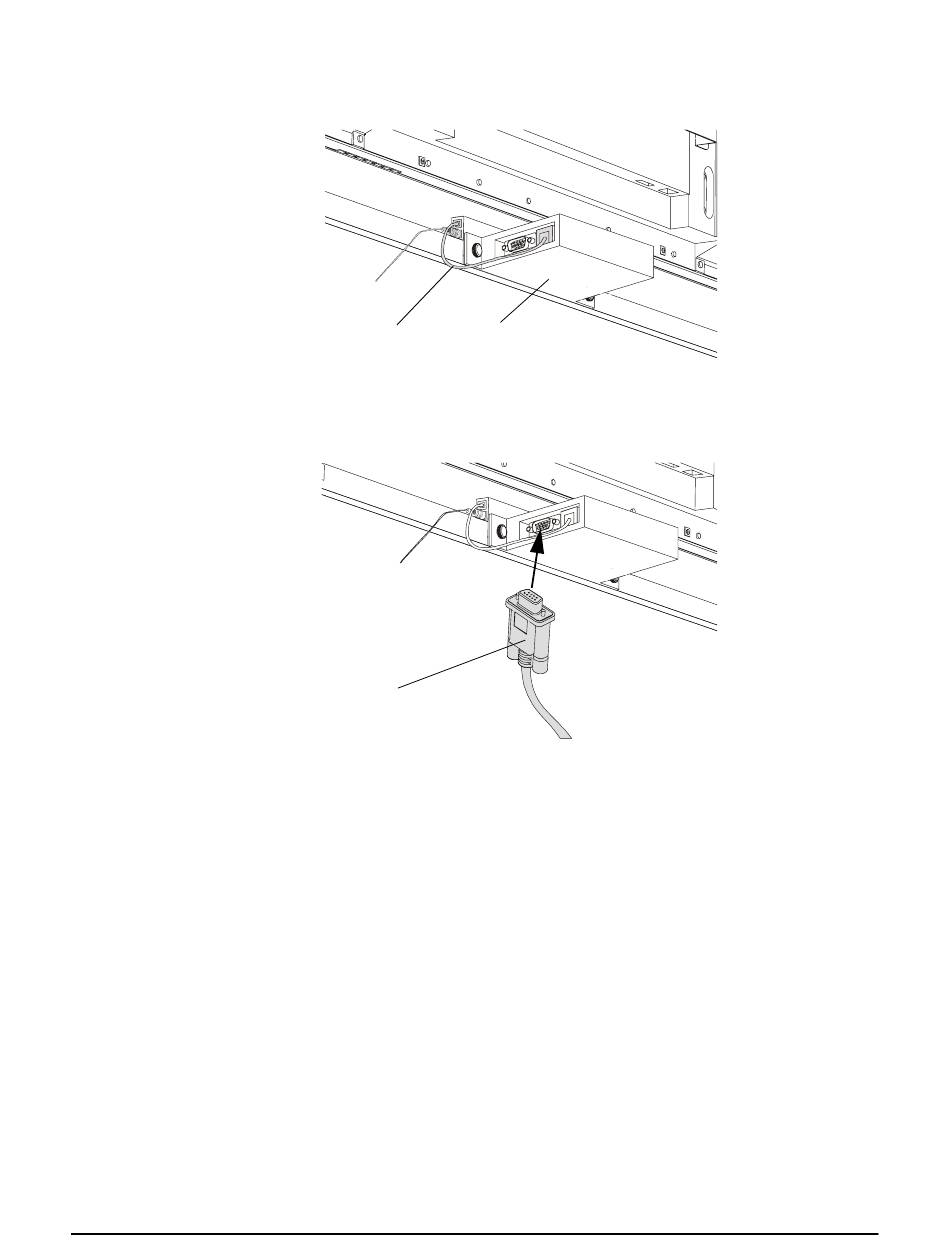

Controller

MOD8 Cable

DB9 Connector

Installing the Interactive Whiteboard
