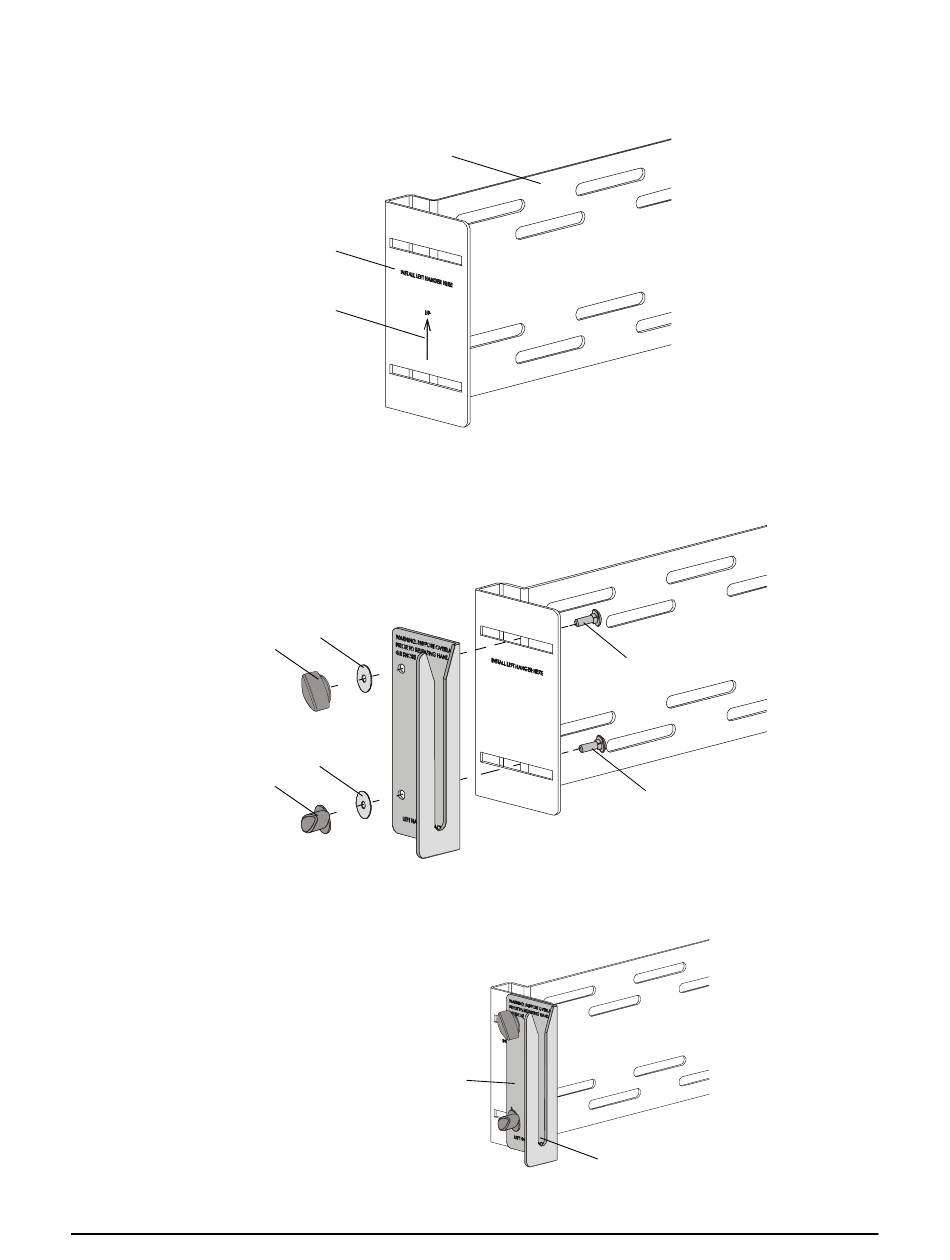

1. Place the center section of the mounting bracket on a flat surface with the arrows

pointing upwards and the text 'Install Left Hanger Here' on your left.

2. Attach the left hanger bracket to the left side of the center section of the mounting

bracket using t-handles, washers and carriage bolts.

T-handle

NOTE: When you install a hanger bracket on the correct side, the U-shaped slot

opens at the top of the bracket.

3. Attach the second hanger bracket in the same way.

Mounting Bracket

Centre Section

Text

Up Arrow

Washer

Hanger bracket

Installing the Interactive Whiteboard

Carriage Bolt

U-shaped slot
