Summary of Contents for SMART kapp42

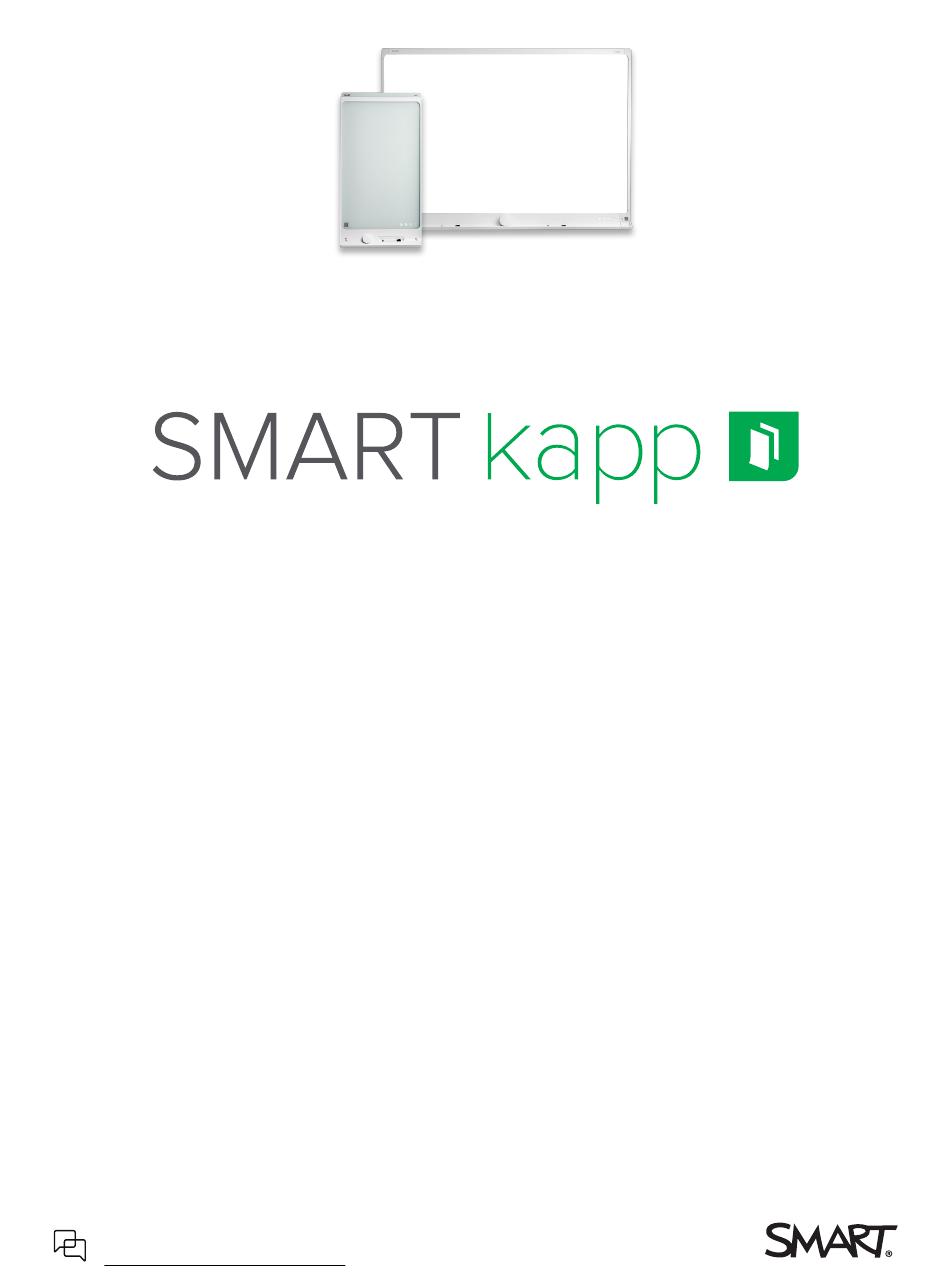

Page 1 User guide kapp42 kapp84 Was this document helpful? smarttech.com/docfeedback/170769...
Page 2 Google and used according to terms described in the Creative Commons 3.0 Attribution License. The Bluetooth word mark is owned by the Bluetooth SIG, Inc. and any use of such marks by SMART Technologies ULC is under license. All other third-party product and company names may be trademarks of their respective owners.
Page 3 The capture board includes instructions for installation on metal and wood stud walls and certain masonry wall types only. A SMART hardware kit is available for these types of installation. In the event that you need to install the board on reinforced concrete walls, walls with plaster lath finishing or other types of walls, refer to your local building authority for instructions, recommendations and safe work practices.
Page 4 About the SMART kapp 84 board About the SMART kapp app Other documentation and resources Chapter 2 Using the SMART kapp app Installing the app and starting it for the first time Connecting and disconnecting the app Writing, erasing and viewing notes...
Page 5 This chapter introduces you to your SMART kapp board and this guide. About this guide This guide explains how to use your SMART kapp board. It includes the following information: How to use your board and the SMART kapp app ...
Page 6 Chapter 1 Welcome About the SMART kapp 42 board You can use the SMART kapp 42 board to collaborate with others in a simple but powerful way. Write ® and draw on the as you would on a regular dry erase board. You can then connect a Bluetooth enabled mobile device to the board by scanning a Quick ...
Page 7 Apple App Store or Google Play store to download the SMART kapp app. After you download and install the app, you can use it to connect to the board and share content with others.
Page 8 Alternatively, you can mount the board using a standard VESA 600 mm × 400 mm mounting bracket. About the SMART kapp app The SMART kapp app enables you to connect your mobile device to a SMART kapp board and then do the following: ...
Page 9 Tutorial and Help When you first start the SMART kapp app on your mobile device, a tutorial opens. This tutorial explains how to connect your mobile device to the board and share and save your notes (see Installing the app and starting it for the first time on page ...
Page 10 Installing the app and starting it for the first time ™ You can download and install the SMART kapp app by visiting the Apple App Store or Google Play , or you can install the app on your mobile device by scanning your board’s QR code or by tapping its NFC tag.
Page 11 1. Do one of the following: Visit the Apple App Store or Google Play on your mobile device and search for SMART kapp. Start the QR code scanning app on your mobile device, and then hold your mobile device’s rear-facing camera over your board’s QR code to scan it.
Page 12 On an Android mobile device, tap Menu , select Settings, and then select Tutorial. Connecting and disconnecting the app The SMART kapp app enables you to connect your mobile device to a SMART kapp board and then do the following: ...
Page 13 To connect by QR code 1. Start the SMART kapp app on your mobile device. 2. Hold your mobile device’s rear-facing camera still over the board’s QR code so that the QR code appears in the center of the app screen.
Page 14 Tip The Board ID is located by the QR code. 2. Start the SMART kapp app on your mobile device. 3. On an Apple mobile device, tap Settings On an Android mobile device, tap Menu , and select Settings.
Page 15 Writing, erasing and viewing notes You can write and erase notes on the SMART kapp board just like you do on a traditional dry erase board. You can view your notes on the board or in the app.
Page 16 As you zoom in or out, grid lines appear on the writing surface to indicate the level of magnification. Saving and working with snapshots As you write notes on a SMART kapp board, you might want to save snapshots of your notes from time to time during the session.
Page 17 Chapter 2 Using the SMART kapp app Saving snapshots to the app To save a snapshot 1. Start or connect to a session (see Connecting and disconnecting the app on page 12). 2. Press Capture on the board.
Page 18 Chapter 2 Using the SMART kapp app To view snapshots in previous sessions 1. If you’re currently in a session, disconnect (see Disconnecting on page 14). 2. On an Apple mobile device, tap Sessions On an Android mobile device, tap Sessions The Sessions screen appears.
Page 19 Chapter 2 Using the SMART kapp app 3. On an Apple mobile device, tap Export On an Android mobile device, tap Menu , and then select Share as Image or Share as PDF. 4. Select the app you want to use to export the snapshots.
Page 20 Chapter 2 Using the SMART kapp app To delete a snapshot from a previous session 1. If you’re currently in a session, disconnect (see Disconnecting on page 14). 2. On an Apple mobile device, tap Sessions On an Android mobile device, tap Sessions The Sessions screen appears.
Page 21 Chapter 2 Using the SMART kapp app Sharing sessions During a session, you can use the SMART kapp app to invite up to 250 people to view your notes on their mobile or desktop devices. Note You can share notes only as long as the SMART kapp app is running on your mobile device and your mobile device is connected to a board.
Page 22 Securing shared sessions In the SMART kapp app, you can add password security to protect your sessions before you send out a link sharing them. This means that others will have to use the password you set to join your shared session.
Page 23 Connecting to another session If another person shares a session with you, you can connect to that session using the SMART kapp app on your mobile device. Once connected, you can do everything in the other person’s session that you can do in your own sessions: ...
Page 24 1. From your mobile device, open the email that the session’s host sent you. 2. Tap the link in the email. If you have the SMART kapp app installed, the app opens and displays the notes the other person is sharing.
Page 25 Chapter 2 Using the SMART kapp app docs.smarttech.com/kb/170769...
Page 26 This chapter explains how to maintain the SMART kapp board for years of use. Cleaning the SMART kapp board With proper care, the SMART kapp board will provide years of trouble-free service. SMART recommends you clean the board monthly to help ensure optimal performance.
Page 27 Cleaning the frame and corner sensors The SMART kapp board uses cameras located in the corners of the frame and reflective tape along the inside of the frame to capture your writing. Although the cameras are protected by windows, dust or dry erase residue can build up on frame’s reflective tape and in the corners, impairing the board’s...
Page 28 Transporting the SMART kapp board When you need to uninstall the SMART kapp board from its mobile stand or wall mount and transport it to another location, make sure you use the original packaging to repack the board. This packaging was designed with optimal shock and vibration protection.
Page 29 Transport the board only in original or replaced packaging. Transporting the board without correct packaging voids the warranty and could lead to product damage. For instructions on how to repack the board for transportation, see How to package a SMART kapp 42 for return.
Page 30 Chapter 3 Maintaining the SMART kapp board ® ™ Remarx Staples dry erase markers, bullet tip ® Melissa & Doug dry erase markers Caution The following pens are not recommended for use with the board. ®...
Page 31 This chapter explains how to troubleshoot common issues with the SMART kapp board and the SMART kapp app. What the indicator lights mean SMART kapp boards have four indicator lights. The indicator lights are in the bottom-right corner of SMART kapp 42 boards and on the pen ledge of SMART kapp 84 boards. Startup...
Page 32 (after startup) that might prevent the board from compatible markers. working properly. Use only SMART’s circular kapp eraser. Do not use a third-party eraser of a different shape or size. Ensure there are no obstructions to the optical capture system within the board’s frame.
Page 33 Bluetooth The board isn’t connected to a mobile If you previously connected the mobile device. device, ensure the SMART kapp app is running and the device is within the The board was previously connected to board’s Bluetooth communication a mobile device but the SMART kapp range.
Page 34 [N/A] or a mobile device. Troubleshooting the app The following are issues that you might encounter while using the SMART kapp app and SMART kapp board. Your mobile device Make sure no other mobile devices are connected to the board. (The board doesn’t connect to...
Page 35 Chapter 4 Troubleshooting The SMART kapp The SMART kapp app displays this message when dirt on the board’s frame app displays the obscures the sensors. To fix this, clean the board’s cameras and frame. “Object blocking frame” message. ...
Page 36 Certification and compliance Federal Communication Commission Innovation, Science and Economic interference statement Development Canada This device complies with Part 15 of the FCC Rules. Operation is This device complies with RSS-247 of the ISED. Operation is subject to the following two conditions: (1) This device may not subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept cause harmful interference, and (2) this device must accept...
Page 37 20 cm de distance entre la source de rayonnement et votre corps. Hardware environmental compliance SMART Technologies supports global efforts to ensure that electronic equipment is manufactured, sold, and disposed of in a safe and environmentally friendly manner.
Page 38 SMART Technologies smarttech.com/support smarttech.com/contactsupport docs.smarttech.com/kb/170769...
