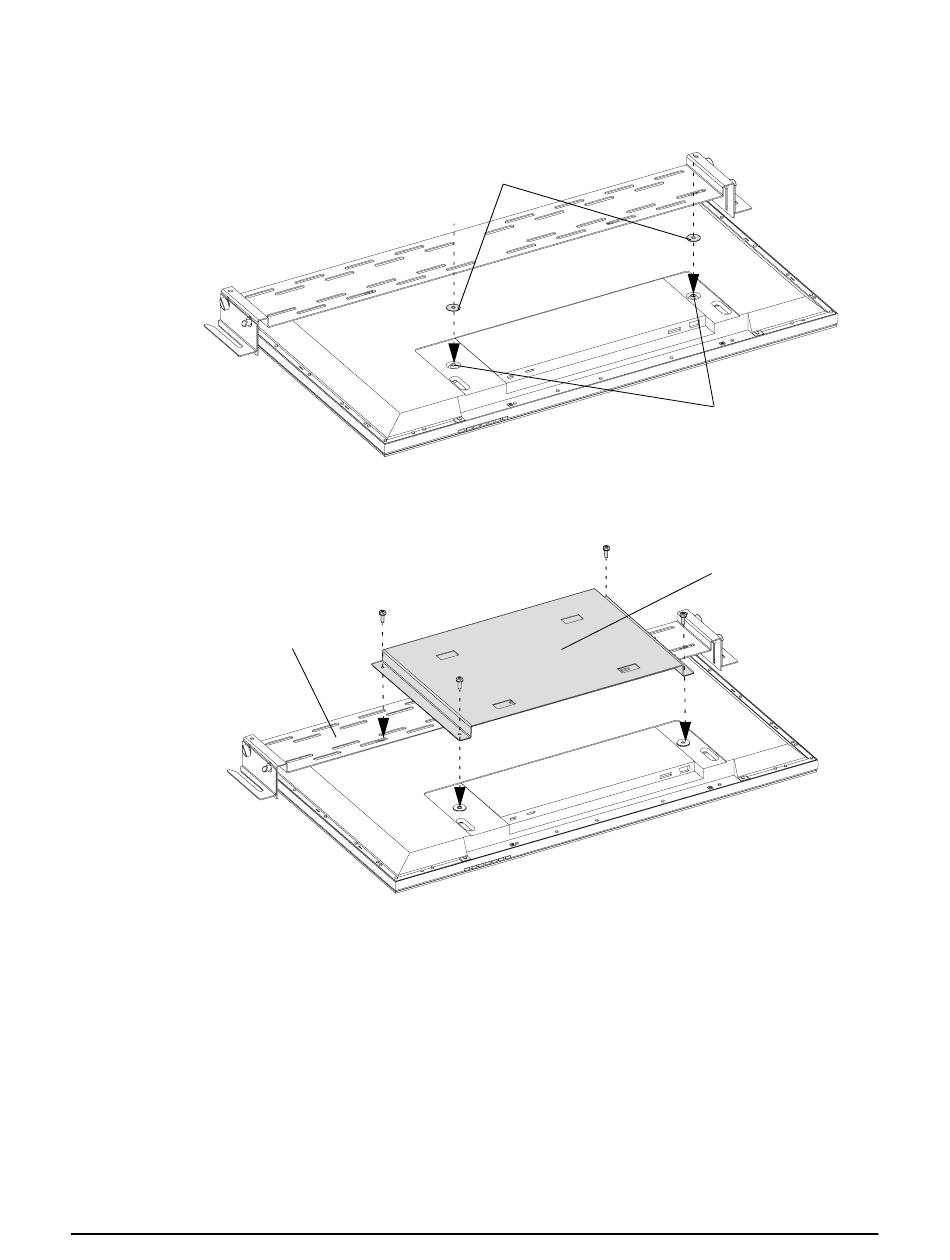

9. Add a supplied washer to each of the exposed adapter plate bolt holes (except for the

two holes covered by the mounting bracket). This is to compensate for the thickness

of the mounting bracket.

10. Attach the adapter plate over the mounting bracket and the washers using the bolts

you removed in step 5.

Mounting Bracket

NOTE: The bolt type varies between different flat-panel displays. You may have

received an appropriate tool for attaching these bolts with your flat-panel display.

Installing the Interactive Whiteboard

Washers

Adapter plate

bolt holes

Adapter Plate
