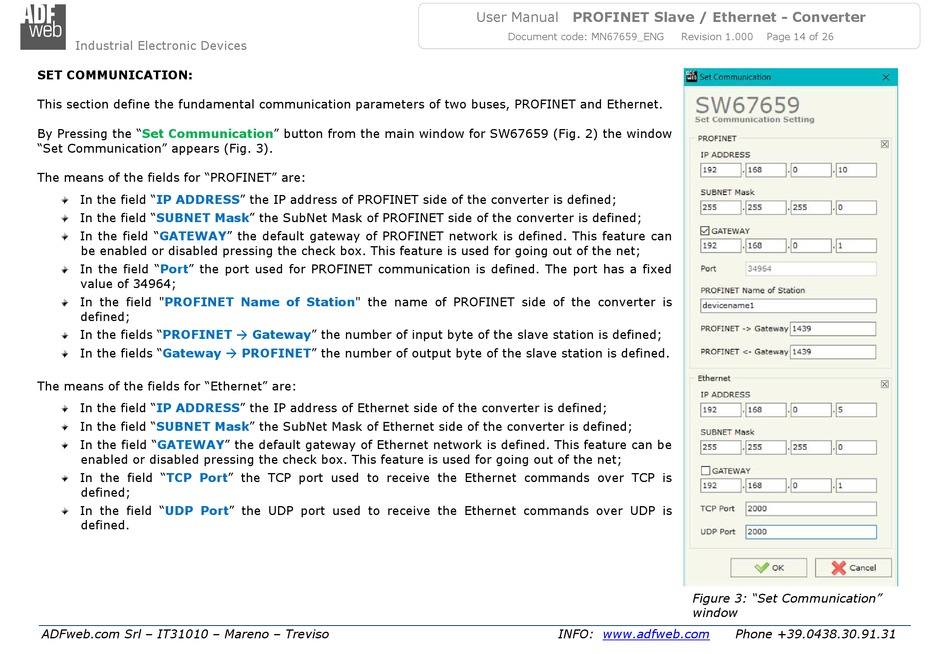

Set Communication - ADF Web HD67659-A1 User Manual

Industrial Electronic Devices

SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, PROFINET and Ethernet.
By Pressing the "Set Communication" button from the main window for SW67659 (Fig. 2) the window
"Set Communication" appears (Fig. 3).
The means of the fields for "PROFINET" are:
In the field "IP ADDRESS" the IP address of PROFINET side of the converter is defined;
In the field "SUBNET Mask" the SubNet Mask of PROFINET side of the converter is defined;
In the field "GATEWAY" the default gateway of PROFINET network is defined. This feature can
be enabled or disabled pressing the check box. This feature is used for going out of the net;
In the field "Port" the port used for PROFINET communication is defined. The port has a fixed
value of 34964;
In the field "PROFINET Name of
defined;
In the fields "PROFINET 
In the fields "Gateway 
The means of the fields for "Ethernet" are:
In the field "IP ADDRESS" the IP address of Ethernet side of the converter is defined;
In the field "SUBNET Mask" the SubNet Mask of Ethernet side of the converter is defined;
In the field "GATEWAY" the default gateway of Ethernet network is defined. This feature can be
enabled or disabled pressing the check box. This feature is used for going out of the net;
In the field "TCP Port" the TCP port used to receive the Ethernet commands over TCP is
defined;
In the field "UDP Port" the UDP port used to receive the Ethernet commands over UDP is
defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Station" the name of PROFINET side of the converter is
Gateway" the number of input byte of the slave station is defined;
PROFINET" the number of output byte of the slave station is defined.
User Manual PROFINET Slave / Ethernet - Converter
Document code: MN67659_ENG
INFO: www.adfweb.com
Revision 1.000 Page 14 of 26
Figure 3: "Set Communication"
window
