FUNCTION MODES:

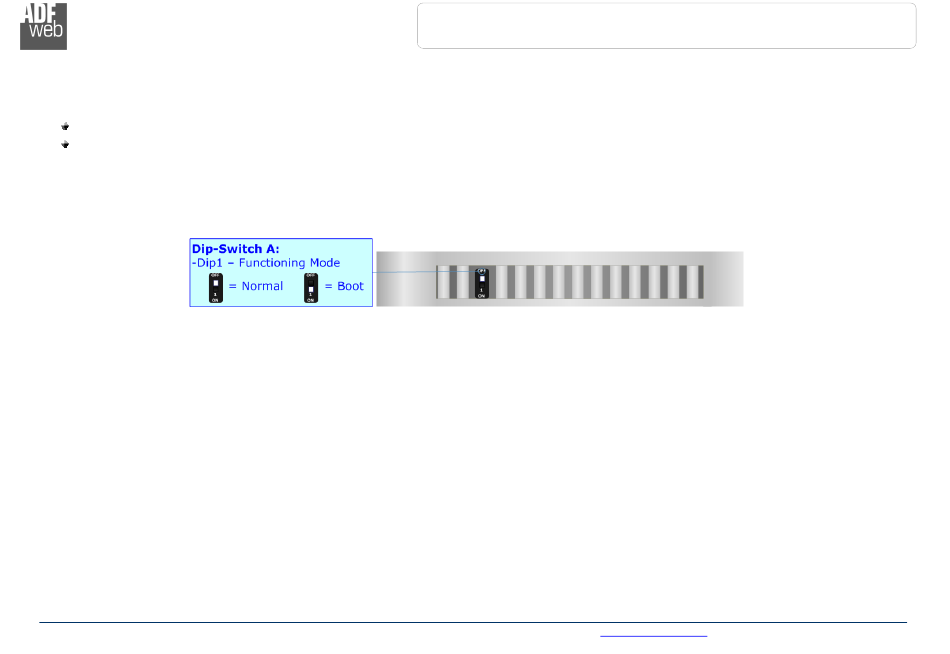

The device has got two functions mode depending of the position of the Dip1 of 'Dip-Switch B':
The first, with Dip1 in Off position (factory setting), is used for the normal working of the device.
The second, with Dip1 in On position, is used for upload the Project/Firmware.
For the operations to follow for the updating (see 'UPDATE DEVICE' section).
