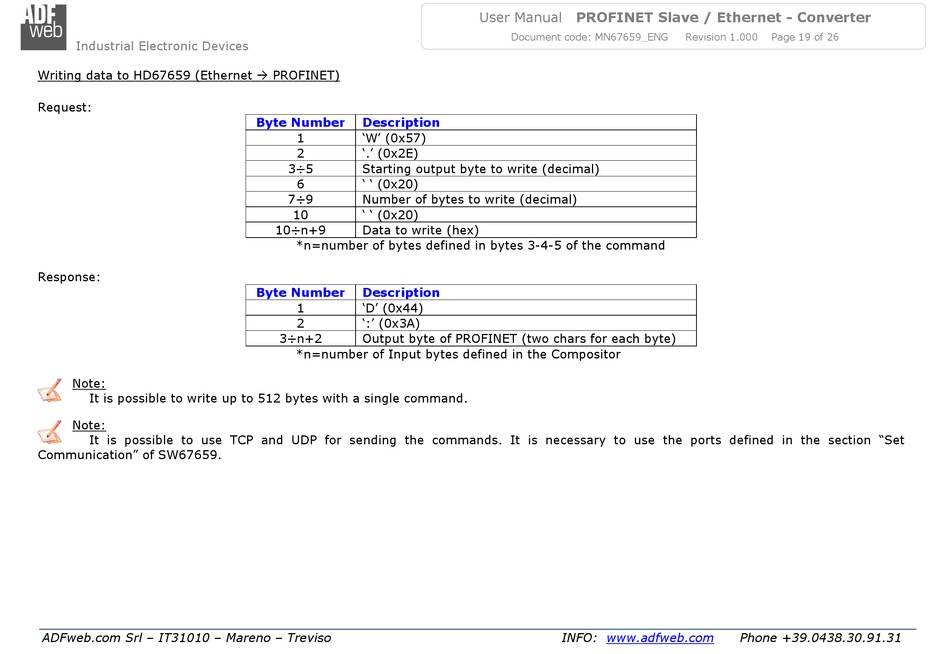

Writing data to HD67659 (Ethernet PROFINET)
Request:
Response:
Note:
It is possible to write up to 512 bytes with a single command.
Note:
It is possible to use TCP and UDP for sending the commands. It is necessary to use the ports defined in the section "Set
Communication" of SW67659.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Byte Number
Description
1
'W' (0x57)
2
'.' (0x2E)
3÷5
Starting output byte to write (decimal)
6
' ' (0x20)
7÷9
Number of bytes to write (decimal)
10
' ' (0x20)
10÷n+9
Data to write (hex)
*n=number of bytes defined in bytes 3-4-5 of the command
Byte Number
Description
1
'D' (0x44)
2
':' (0x3A)
3÷n+2
Output byte of PROFINET (two chars for each byte)
*n=number of Input bytes defined in the Compositor
User Manual PROFINET Slave / Ethernet - Converter
Document code: MN67659_ENG
INFO:
www.adfweb.com
Revision 1.000
Page 19 of 26
