Industrial Electronic Devices
User Manual
Revision 1.000
English
PROFINET Master / DeviceNet Slave –
Converter
(Order Code: HD67B75-A1)
for Website information:
www.adfweb.com?Product=HD67B75
for Price information:
www.adfweb.com?Price=HD67B75-A1
Benefits and Main Features:
Very easy to configure
Wide supply input range
Electrical isolation
Industrial temperature range:
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual PROFINET Master/ DeviceNet Slave
Document code: MN67B75_ENG
For others PROFINET products see also the following link:
Converter PROFINET to
www.adfweb.com?Product=HD67078
www.adfweb.com?Product=HD67090
www.adfweb.com?Product=HD67178
www.adfweb.com?Product=HD67600
www.adfweb.com?Product=HD67601
www.adfweb.com?Product=HD67602
www.adfweb.com?Product=HD67603
www.adfweb.com?Product=HD67604
www.adfweb.com?Product=HD67605
www.adfweb.com?Product=HD67606
www.adfweb.com?Product=HD67607
www.adfweb.com?Product=HD67608
www.adfweb.com?Product=HD67609
www.adfweb.com?Product=HD67610
www.adfweb.com?Product=HD67611
www.adfweb.com?Product=HD67612
www.adfweb.com?Product=HD67613
www.adfweb.com?Product=HD67614
www.adfweb.com?Product=HD67615
www.adfweb.com?Product=HD67660
www.adfweb.com?Product=HD67679
www.adfweb.com?Product=HD67719
www.adfweb.com?Product=HD67818
www.adfweb.com?Product=HD67848
www.adfweb.com?Product=HD67952
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 1.000
Pagina 1 di 26
(M-Bus)
(M-Bus Wireless)
(SNMP Manager)
(NMEA2000)
(RS232/RS485)
(Modbus Master)
(Modbus Slave)
(PROFIBUS Master)
(PROFIBUS Slave)
(CAN)
(CANopen)
(DeviceNet Master)
(DeviceNet Slave)
(J1939)
(Modbus TCP Master)
(Modbus TCP Slave)
(SNMP Agent)
(DMX)
(NMEA 0183)
(EtherNet/IP Slave)
(BACnet Slave)
(BACnet Master)
(KNX)
(DALI)
(MQTT)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADF Web HD67B75-A1
Summary of Contents for ADF Web HD67B75-A1

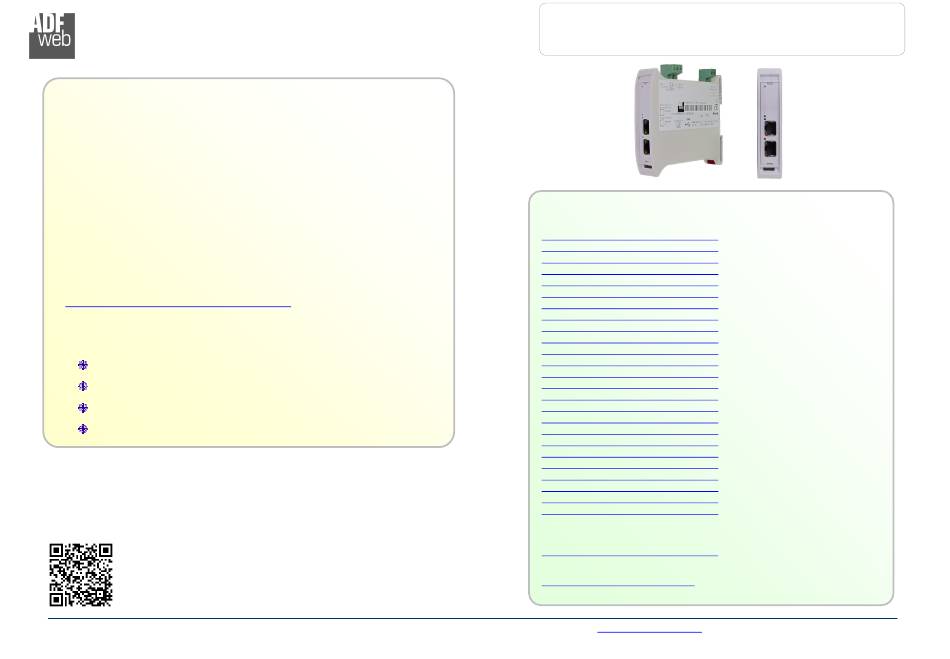

- Page 1 Pagina 1 di 26 Industrial Electronic Devices User Manual Revision 1.000 English PROFINET Master / DeviceNet Slave – Converter For others PROFINET products see also the following link: (Order Code: HD67B75-A1) Converter PROFINET to www.adfweb.com?Product=HD67078 (M-Bus) for Website information: www.adfweb.com?Product=HD67090 (M-Bus Wireless) www.adfweb.com?Product=HD67B75 www.adfweb.com?Product=HD67178...
-
Page 2: Table Of Contents
User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 2 di 26 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that INDEX you need to check that the following document is: UPDATED DOCUMENTATION Updated REVISION LIST... -
Page 3: Security Alert
User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 3 di 26 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for each individual application, legal and safety regulation. -
Page 4: Example Of Connection
User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 4 di 26 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 5 di 26 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67B75-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 6: Characteristics
Pagina 6 di 26 Industrial Electronic Devices CHARACTERISTICS: The HD67B75-A1 is a PROFINET / DeviceNet Converter. It has the following characteristics: Triple isolation between CAN - Power Supply, CAN - Ethernet, Power Supply - Ethernet. Two-directional information between DeviceNet bus and PROFINET bus;... -
Page 7: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67B75-A1 Caution: Not reverse the polarity power HD67B75-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 8: Function Modes
User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 8 di 26 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch A’: The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip2 of Dip-Switch A’... -
Page 9: Leds
User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 9 di 26 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode ON: Device powered... -
Page 10: Profinet
PROFINET: The PROFINET connection must be made using Connector3 and/or Connector4 of HD67B75-A1 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. -
Page 11: Can
User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 11 di 26 Industrial Electronic Devices CAN: For terminate the CANopen line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch C’ is at ON position. Cable characteristics: DC parameter: Impedance... -
Page 12: Use Of Compositor Sw67B75
User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 12 di 26 Industrial Electronic Devices USE OF COMPOSITOR SW67B75: To configure the Converter, use the available software that runs with Windows called SW67B75. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 13: New Project / Open Project
User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 13 di 26 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “PROFINET Master / DeviceNet Slave - Converter”... -
Page 14: Software Options
User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 14 di 26 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 15 User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 15 di 26 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 16: Set Communication
User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 16 di 26 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, PROFINET and DeviceNet. By Pressing the “Set Communication” button from the main window of SW67B75 (Fig. -
Page 17: Profinet Access
User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 17 di 26 Industrial Electronic Devices PROFINET ACCESS: By Pressing the “PROFINET Access” button from the main window for SW67B75 (Fig. 2) the window “Definition of PROFINET Devices Present in Network”... - Page 18 User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 18 di 26 Industrial Electronic Devices The means of the fields below are: If the field “Name of Station” is checked, the name of the PROFINET slave is defined; In the field “IP Address”...
- Page 19 User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 19 di 26 Industrial Electronic Devices By clicking on “Modules” button, it is possible to import the modules for the selected PROFINET slave device. The window “Definition Module and/or Submodules of PROFINET Device”...
- Page 20 User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 20 di 26 Industrial Electronic Devices The means of the checkboxes inside the table are: If the field “Map Only Data” is checked, only the data of the modules are mapped into the DeviceNet arrays. Otherwise, for each module there will be the status of IN and OUT areas too (1 byte);...
-
Page 21: Update Device
User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 21 di 26 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. - Page 22 User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 22 di 26 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67B75 device. Warning: If Fig.
-
Page 23: Mechanical Dimensions
User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 23 di 26 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 8: Mechanical dimensions scheme for HD67B75-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 24: Ordering Informations
Enclosure Type A: 1M, 35mm DIN Rail mounting Device Family HD67B75: PROFINET Master / DeviceNet Slave - Converter Order Code: HD67B75-A1 PROFINET Master / DeviceNet Slave - Converter ACCESSORIES: Order Code: AC34001 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V AC Order Code: AC34002 35mm Rail DIN - Power Supply 110V AC 50/60Hz –... -
Page 25: Disclaimer
User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 25 di 26 Industrial Electronic Devices DISCLAIMER All technical content within this document can be modified without notice. The content of the document content is a recurring audit. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 26: Warranties And Technical Support
User Manual PROFINET Master/ DeviceNet Slave Document code: MN67B75_ENG Revision 1.000 Pagina 26 di 26 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: 1) Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
