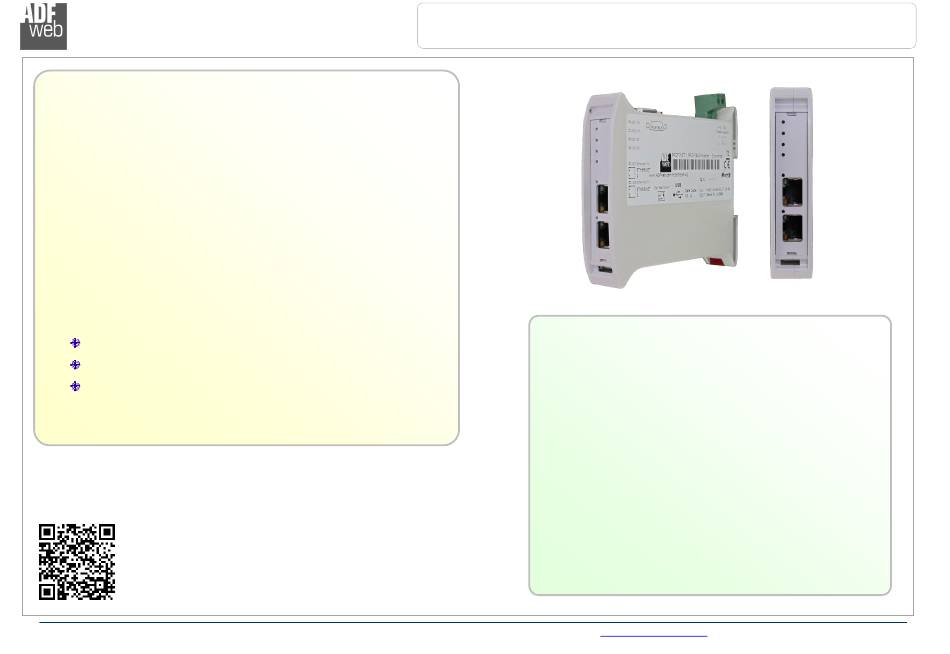

Industrial Electronic Devices
User Manual
Revision 1.000
English

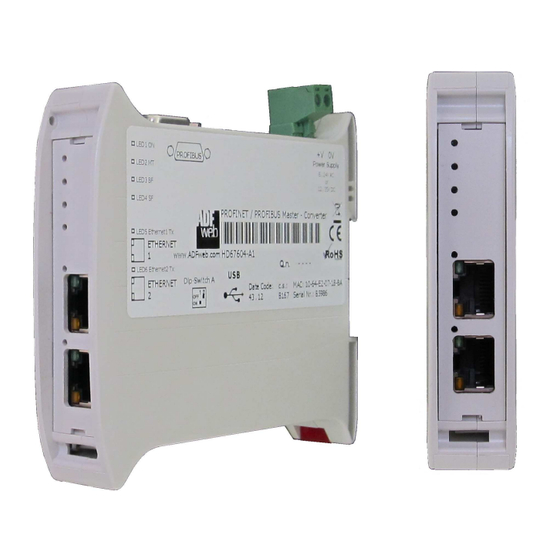

PROFINET / EtherNet/IP Slave - Converter
(Order Code: HD67660-A1)
Benefits and Main Features:
Triple electrical isolation
Two Ethernet ports
Temperature range: -40°C/+85°C (-40°F/+185°F)
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual PROFINET / EtherNet/IP Slave
Document code: MN67660_ENG
Revision 1.000
INFO:
www.adfweb.com
Page 1 of 30
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADF Web HD67660-A1
Summary of Contents for ADF Web HD67660-A1
- Page 1 Page 1 of 30 Industrial Electronic Devices User Manual Revision 1.000 English PROFINET / EtherNet/IP Slave - Converter (Order Code: HD67660-A1) Benefits and Main Features: Triple electrical isolation Two Ethernet ports Temperature range: -40°C/+85°C (-40°F/+185°F) ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com...
-
Page 2: Table Of Contents
User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 2 of 30 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated;... -
Page 3: Security Alert
User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 3 of 30 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for each individual application, legal and safety regulation. -
Page 4: Example Of Connection
User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 4 of 30 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
Power Supply port 0V = Ground +V = Positive wire V AC: min 8V ; max 24V V DC: min 12V ; max 35V Figure 1: Connection scheme for HD67660-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 6: Characteristics
Page 6 of 30 Industrial Electronic Devices CHARACTERISTICS: The HD67660-A1 is a PROFINET / EtherNet/IP Converter. It allows the following characteristics: Up to 500 bytes in reading and 500 bytes in writing on EtherNet/IP side; Two-directional information between EtherNet/IP and PROFINET;... -
Page 7: Power Supply
POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax HD67660-A1 Consumption at 24V DC: Device W/VA HD67660-A1 Caution: Not reverse the polarity power HD67660-A1 ADFweb.com Srl –... -
Page 8: Function Modes
User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 8 of 30 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the Dip2 of ‘Dip-Switch B’: The first, with Dip2 in Off position (factory setting), is used for the normal working of the device. The second, with Dip2 in On position, is used for upload the Project/Firmware. -
Page 9: Leds
User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 9 of 30 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode ON: Device powered... -
Page 10: Ethernet/Ip
ETHERNET/IP: The Ethernet connection must be made using Connector3 or Connector4 of HD67660-A1 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross cable. -
Page 11: Use Of Compositor Sw67660
User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 11 of 30 Industrial Electronic Devices USE OF COMPOSITOR SW67660: To configure the Converter, use the available software that runs with Windows called SW67660. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 12: New Project / Open Project
User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 12 of 30 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “PROFINET / EtherNet/IP Slave - Converter”... -
Page 13: Software Options
User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 13 of 30 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. -
Page 14: Set Communication
User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 14 of 30 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, PROFINET and EtherNet/IP. By Pressing the “Set Communication” button from the main window for SW67660 (Fig. 2) the window “Set Communication”... -
Page 15: Profinet Xml
User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 15 of 30 Industrial Electronic Devices PROFINET XML: By pressing the “PROFINET XML” button it is possible to save the xml file for the PROFINET side. With this feature you can save the configuration of the converter of the PROFINET side. Note: When you import the .xml file on your PROFINET you have to add the main module and all the submodules present in it. -
Page 16: Update Device
User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 16 of 30 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. If you don’t know the actual IP address of the device you have to use this procedure: Turn off the Device;... - Page 17 User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 17 of 30 Industrial Electronic Devices If you know the actual IP address of the device, you have to use this procedure: Turn on the Device with the Ethernet cable inserted; Insert the actual IP of the Converter;...
-
Page 18: Mechanical Dimensions
User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 18 of 30 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 6: Mechanical dimensions scheme for HD67660-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 19: Ordering Informations
Enclosure Type A: 1M, 35mm DIN Rail mounting Device Family HD67660: PROFINET / Ethernet/IP Slave - Converter Order Code: HD67660-A1 PROFINET / Ethernet/IP Slave - Converter ACCESSORIES: Order Code: AC34001 Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V AC Order Code: AC34002 Rail DIN - Power Supply 110V AC 50/60Hz –... -
Page 20: Plc Configuration (For Ethernet/Ip)
User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 20 of 30 Industrial Electronic Devices PLC CONFIGURATION (for EtherNet/IP): The configuration and commissioning of the EtherNet/IP Converter as described on the following pages was accomplished with the help of the “RSLogix 5000”... - Page 21 “HD67660” and the IP-address assigned is 192.168.0.5. For the Comm Format “Data – SINT” shall be selected as the data type. The HD67660-A1 can uses up to 244 bytes for input assembly instance 101 and 244 bytes for output assembly instance 100.
- Page 22 User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 22 of 30 Industrial Electronic Devices 4) After the configuration is completed, the controller tags are created. ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
- Page 23 User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 23 of 30 Industrial Electronic Devices 5) With “RSLinks Classic Lite”, after have done a network scan (RSWho), and finding the EtherNet/IP device, it is possible to load the EDS file for the device in order to have the “Module Info”...
-
Page 24: Plc Configuration (For Profinet)
User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 24 of 30 Industrial Electronic Devices PLC CONFIGURATION (for PROFINET): The configuration and commissioning of the PROFINET Converter as described on the following pages was accomplished with the help of the TIA Portal V11-software by Siemens. - Page 25 User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 25 of 30 Industrial Electronic Devices 2) Press the “Devices and networks” button (1), from the right drop-down menu, under “Other field devices PROFINET IO Gateway ADFWEB.com HD67660” double click on “Serial” module (2). Note: If you have installed more than one xml file, go to the Information section and in the “Version”...
- Page 26 User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 26 of 30 Industrial Electronic Devices 3) Connect the PLC to the HD67660 module by drawing the Ethernet wire between the two Ethernet ports. Then assign the IP Address defined in the Compositor_SW67660 to the HD67660.
- Page 27 User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 27 of 30 Industrial Electronic Devices 4) Then double click on the “Serial” label and in the field name change it accordingly to the name defined in the Compositor_SW67660 (2).
- Page 28 User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 28 of 30 Industrial Electronic Devices 5) Load the configuration into the PLC. ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
-
Page 29: Disclaimer
User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 29 of 30 Industrial Electronic Devices DISCLAIMER All technical content within this document can be modified without notice. The content of the document content is a recurring audit. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 30: Warranties And Technical Support
User Manual PROFINET / EtherNet/IP Slave Document code: MN67660_ENG Revision 1.000 Page 30 of 30 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
