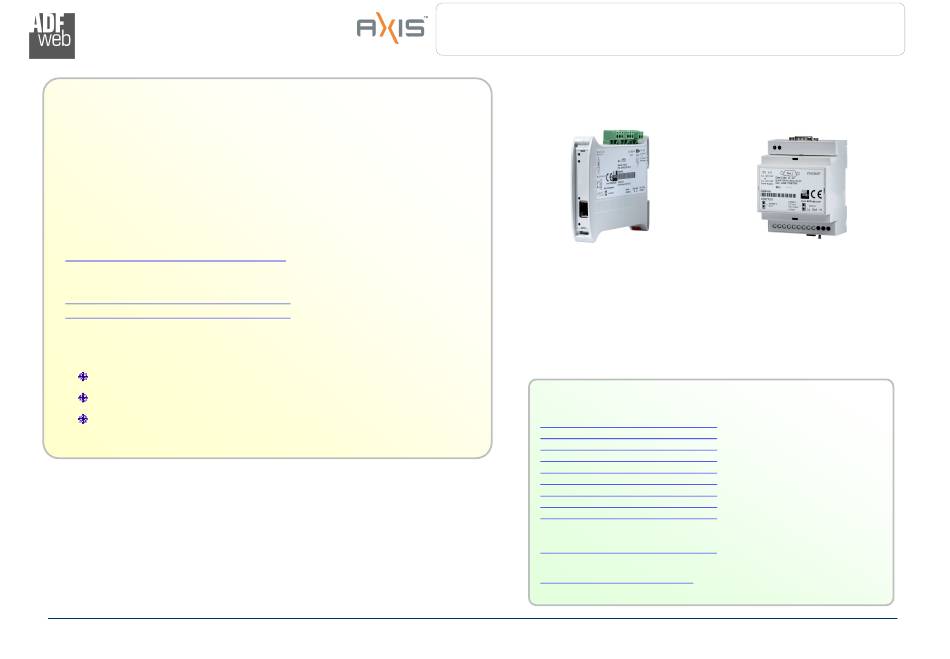

Industrial Electronic Devices

User Manual

Revision 1.001

English

BACnet/IP / BACnet MSTP –

Converter/Router

(Order Code: HD67686-A1 , HD67686-B2)

For Website information:

www.adfweb.com?Product=HD67686

For Price information:

www.adfweb.com?Price=HD67686-A1

www.adfweb.com?Price=HD67686-B2

Benefits and Main Features:

Very easy to configure

Triple Electrical isolation

Temperature range: -40°C/+85°C (-40°F/+185°F)

ADFweb.com S.r.l.

Axis Solutions Pvt Ltd is the Authorized Distributor of

www.axisindia.in | info@axisindia.in

User Manual BACnet/IP / BACnet MSTP - Router

Document code: MN67686_ENG

HD67686-A1

For other BACnet products see also the following link:

Converter BACnet Master to

www.adfweb.com?Product=HD67712

www.adfweb.com?Product=HD67714

www.adfweb.com?Product=HD67716

www.adfweb.com?Product=HD67717

www.adfweb.com?Product=HD67718

www.adfweb.com?Product=HD67719

www.adfweb.com?Product=HD67721

www.adfweb.com?Product=HD67723

www.adfweb.com?Product=HD67725

Do you have your customer protocol? Then go to:

www.adfweb.com?Product=HD67003

Do you need to choose a device? Do you want help?

www.adfweb.com?Cmd=helpme

in India

Revision 1.001

Page 1 of 23

HD67686-B2

(Modbus Slave)

(Modbus TCP Slave)

(PROFIBUS Slave)

(CAN)

(CANopen)

(PROFINET)

(DeviceNet Slave)

(NMEA 2000)

(J1939)

Table of Contents

Need help?

Do you have a question about the AXIS HD67686-A1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADF Web AXIS HD67686-A1

Page 1 User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 1 of 23 Industrial Electronic Devices User Manual Revision 1.001 English BACnet/IP / BACnet MSTP – Converter/Router (Order Code: HD67686-A1 , HD67686-B2) For Website information: www.adfweb.com?Product=HD67686 HD67686-B2 HD67686-A1 For Price information:...
Page 2: Updated Documentation
User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 2 of 23 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that INDEX you need to check that the following document is: UPDATED DOCUMENTATION Updated REVISION LIST...
Page 3: Security Alert
User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 3 of 23 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application.
Page 4: Examples Of Connection
User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 4 of 23 Industrial Electronic Devices EXAMPLES OF CONNECTION: ADFweb.com S.r.l.
Page 5: Connection Scheme
User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 5 of 23 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67686-A1 ADFweb.com S.r.l.
Page 6 User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 6 of 23 Industrial Electronic Devices Figure 1b: Connection scheme for HD67686-B2 ADFweb.com S.r.l.

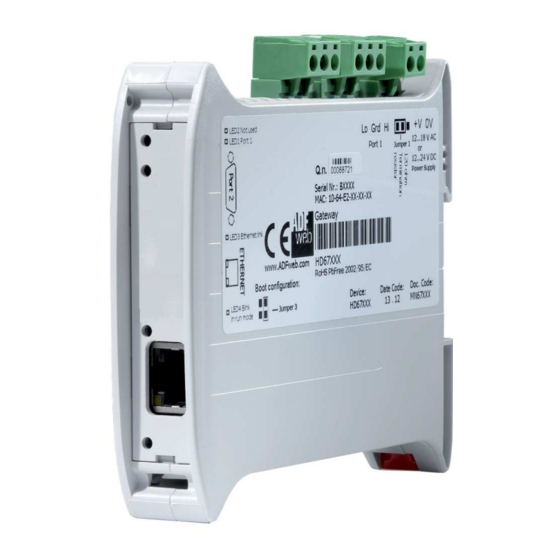

Page 7 User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 7 of 23 Industrial Electronic Devices CHARACTERISTICS: The HD67686-A1 and the HD67686-B2 are BACnet/IP / BACnet MSTP Converters. It allows for the following characteristics: Router function; Completely transparent converter from BACnet/IP to BACnet MSTP and vice versa;...
Page 8: Power Supply
User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 8 of 23 Industrial Electronic Devices POWER SUPPLY: The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin...
Page 9: Function Modes
User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 9 of 23 Industrial Electronic Devices FUNCTION MODES: The device has got two function modes depending on the position of the ‘Dip2 of Dip-Switch A’: The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip2 of Dip-Switch A’...
Page 10 User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 10 of 23 Industrial Electronic Devices LEDS: The device has got four LEDs (five for the HD67686-B2) that are used to give information about the functioning status. The various meanings of the LEDs are described in the table below.
Page 11 User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 11 of 23 Industrial Electronic Devices RS485: To terminate the RS485 line with a 220Ω resistor it is necessary to put ON dip 1, like in figure. The maximum length of the cable should be 1200m (4000 feet).
Page 12 User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 12 of 23 Industrial Electronic Devices ETHERNET: The BACnet/IP connection and the updating of the converters must be made using Connector5 of HD67686 with at least a Category 5E cable.
Page 13 User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 13 of 23 Industrial Electronic Devices USE OF COMPOSITOR SW67686: To configure the Converter, use the available software that runs with Windows called SW67686. It is downloadable on the site www.adfweb.com and its operation is described in this document.
Page 14: New Configuration / Open Configuration
User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 14 of 23 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “BACnet/IP / BACnet MSTP - Converter”...
Page 15: Software Options
User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 15 of 23 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. In the section “Language”...
Page 16: Set Communication
User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 16 of 23 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, BACnet/IP and BACnet MSTP. By Pressing the “Set Communication”...
Page 17 User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 17 of 23 Industrial Electronic Devices Example: The HD67686 is completely transparent and it has the functionalities of a BACnet Router. When a BACnet/IP Master sends a request to the converter, it converters it in BACnet MS/TP. As soon as the BACnet MS/TP slave send the response, the converter converts in BACnet/IP.
Page 18: Update Device
User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 18 of 23 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. If you don’t know the actual IP address of the device you have to use this procedure: Turn off the Device;...
Page 19 User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 19 of 23 Industrial Electronic Devices If you know the actual IP address of the device, you have to use this procedure: Turn on the Device with the Ethernet cable inserted; Insert the actual IP of the Converter;...
Page 20: Mechanical Dimensions
User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 20 of 23 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 6a: Mechanical dimensions scheme for HD67686-A1 Figure 6b: Mechanical dimensions scheme for HD67686-B2 ADFweb.com S.r.l.
Page 21: Ordering Informations
User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 21 of 23 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67686 – x x Connectors Type 1: Removable 5mm Screw Terminal 2: Fixed 5mm Screw Terminal Enclosure Type...
Page 22 User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 22 of 23 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
Page 23: Warranties And Technical Support
User Manual BACnet/IP / BACnet MSTP - Router Document code: MN67686_ENG Revision 1.001 Page 23 of 23 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
