Installation

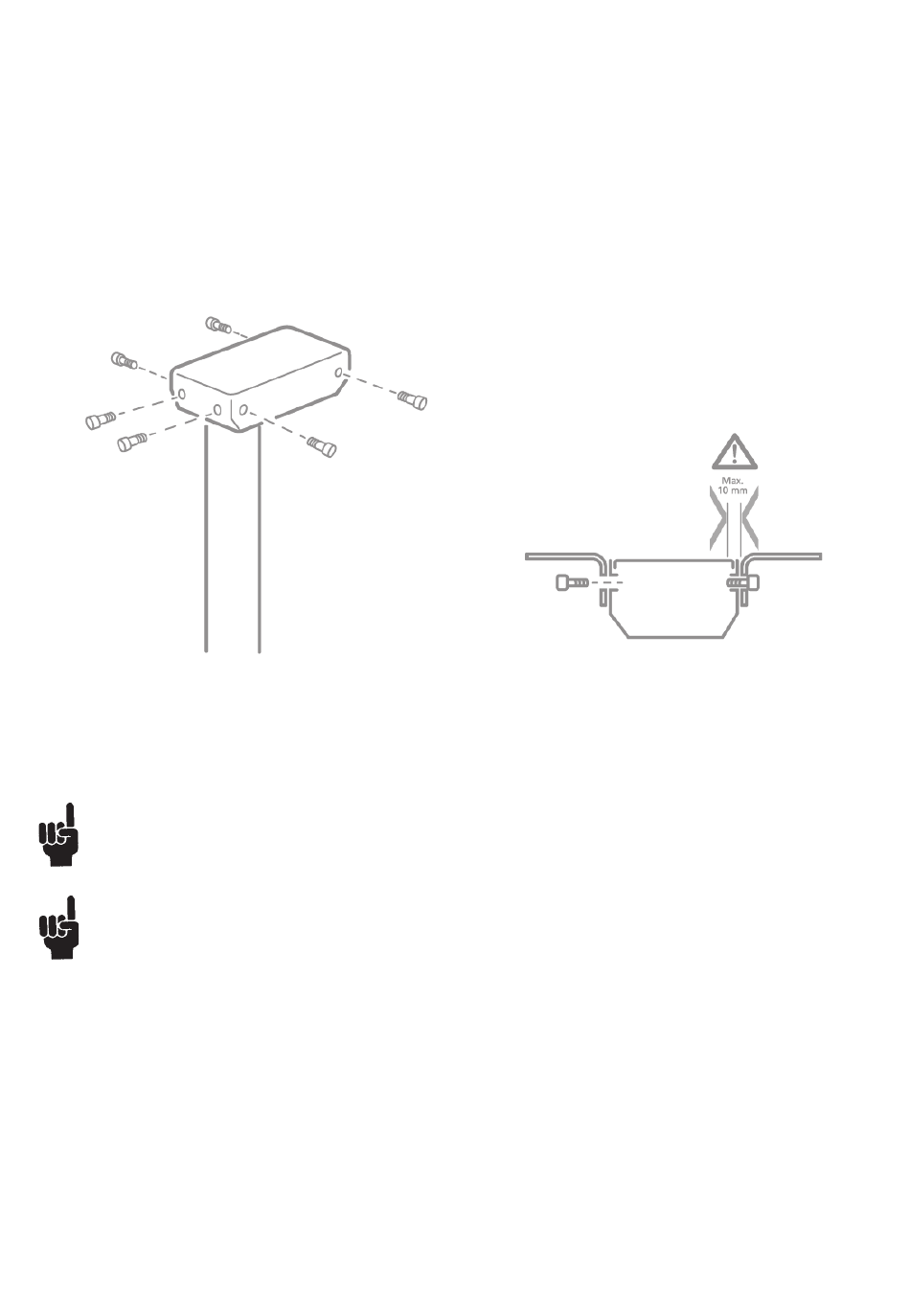

Mounting guidelines for the DESKLINE DL8 IC / DL9 IC / DL10 IC / DL11 IC system
The motor housing is supplied with six M6 threaded holes for mounting on the top frame.
1. Mount motor housing on top frame using six M6 screws with the following specifications:
Quality: Min. grade 8.8
Length: Max. 10 mm (plus top frame thickness). The screw must not go further than max. 10 mm into the motor housing
2. Fasten screws thoroughly (torque: max. 7.5 Nm).
Always use six M6 screws for mounting
the motor housing on the top frame
Sufficient stability of the desk is only obtained if all six M6 screws are used for mounting the motor housing on the
top frame. Tests with fixing the motor housing using only four M6 screws have proved that the torsional stability of
the desk this is insufficient.
LINAK recommends using the DL IC DESKLINE
Alternatively, use the Kick & Click™ top frame and avoid screws to get easy desk assembly.
Mounting screws must not go further than
max. 10 mm into the motor housing
system in push applications with the motor housing mounted upwards.
®
