DL10 IC
The DL10 IC bottom plate is supplied with four M6 threaded holes.
1. Mount column bottom on desk feet using four M6 screws with the following specifications:
Quality: Min. grade 8.8
Length: Min. 10 mm (plus foot thickness);
Max. 16 mm (plus foot thickness);
2. Fasten screws thoroughly (torque: max. 10 Nm).
The holes in the foot must be sufficiently larger than ø6 to ensure space for the screw heads to be screwed fully into the foot.

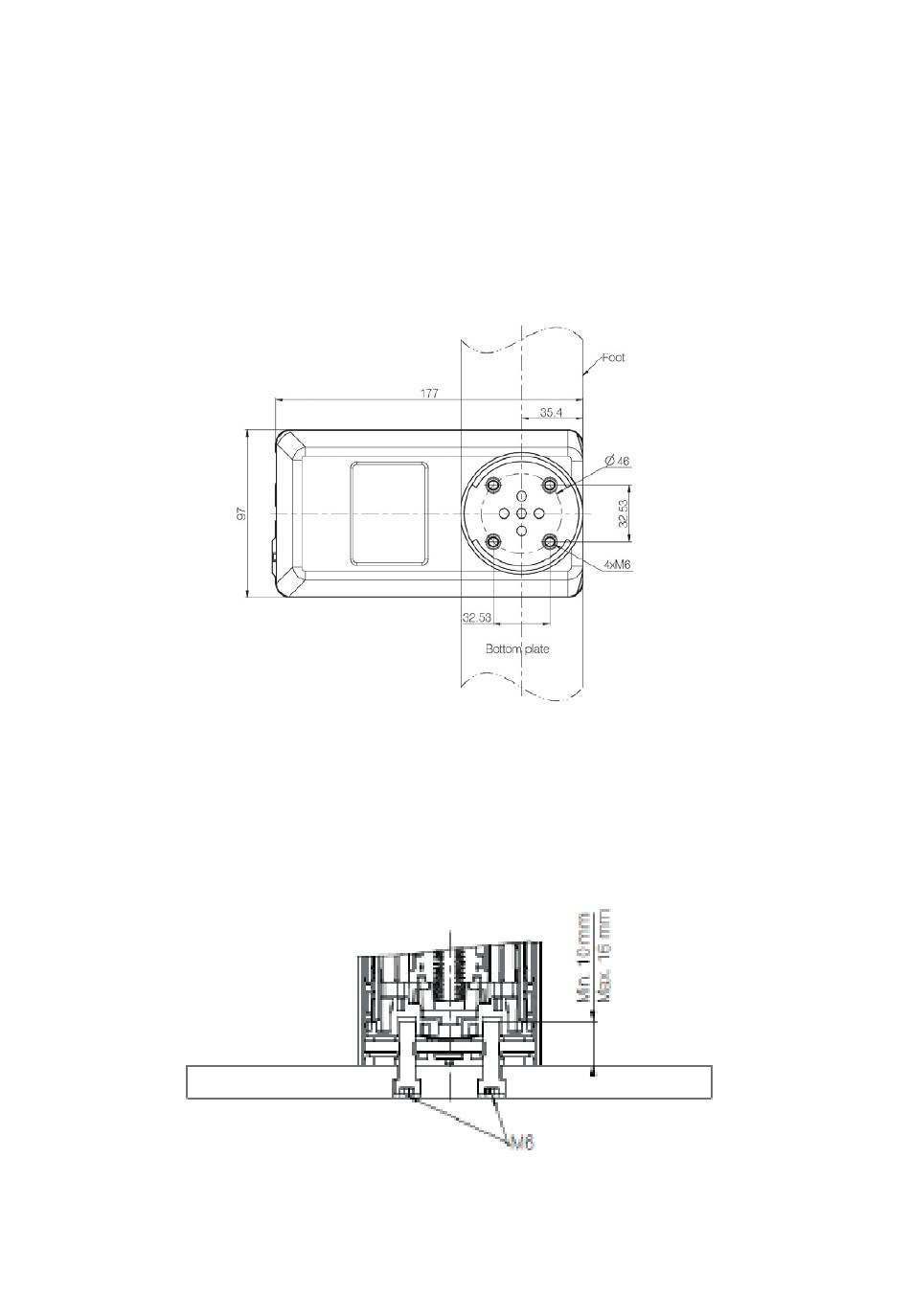

DL10 IC bottom plate
Column bottom mounted on desk foot
