Chapter 3: System Setup
Installing an M.2 Storage Module (2242)

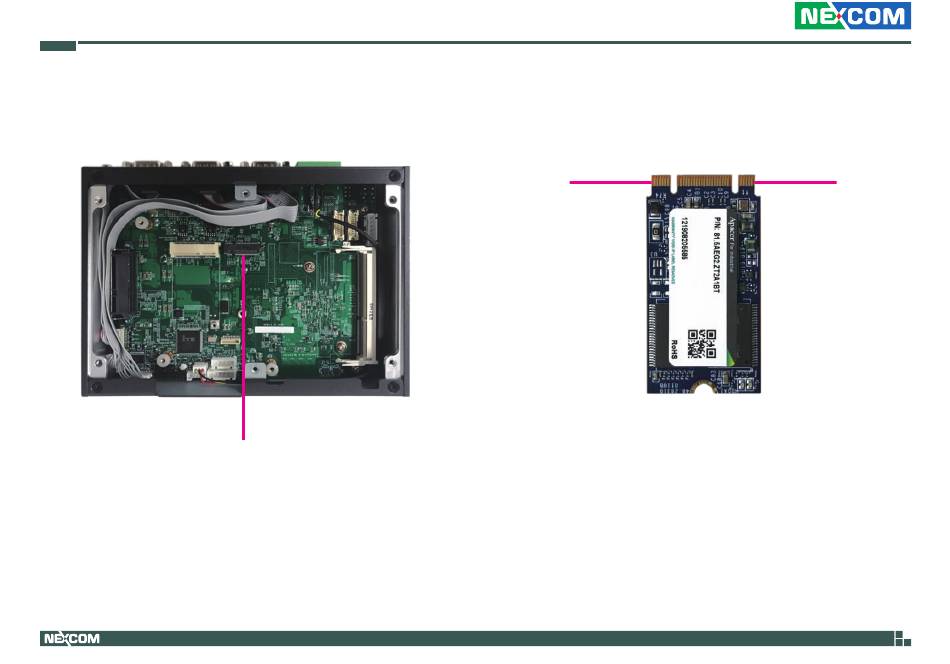

1. Locate the M.2 B-key slot on the board.
2. Make sure the gold-plated six-pin connector on the edge of the module
is on the left, while the five-pin connector is on the right.
Six-Pin
Five-Pin
M.2 B-Key Slot
31
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
NISE 108 User Manual
