AUX MODE
Night Light
EXIT HYST TIME VOLT
AUX MODE
Night Light
Output: Off
EXIT NEXT

FLOAT

AUX MODE
Float
Output: Off
EXIT NEXT
RELAY
AUX MODE

Diversion: Relay

Output: Off
EXIT NEXT
34
Auto
SET MODE
On
Off
Off
SET MODE
Auto
On
Off
Off
SET MODE
Auto

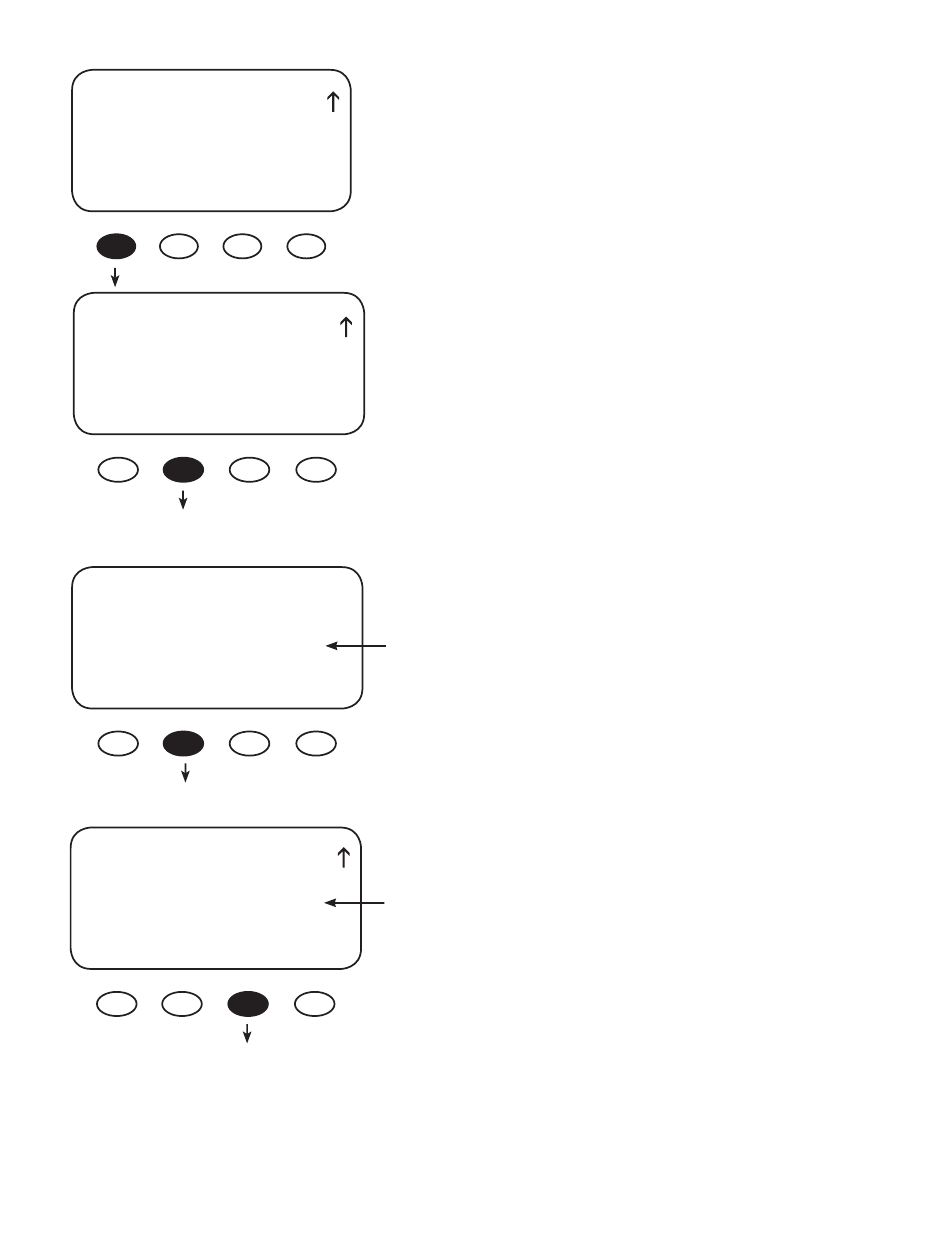

Press the <EXIT> soft key to return to the Night Light
AUX mode.
Press the <NEXT> soft key ro view the AUX Float
screen.
The AUX MODE is active when the Charge Controller
is in Float and producing power. Press the <NEXT>
soft key to advance to the Diversion screen.
When external DC sources (wind, hydro) are
directly connected to a battery bank, any excess
power should be sent to a diversion load, such as
a heating element, via a mechanical or solid state
relay. In Diversion, which features Relay and Solid
State screens, the user programs set points—from
-5.0 volts to 5.0 volts relative to the Absorb, Float and
EQ voltages—to activate the AUX MODE. With wind
or hydro generator applications, keep the Charge
Controller's diversion voltage slightly above its
Absorb and Float voltages for effi cient functioning.
This is primarily an off -grid function. Pressing the
<MODE> soft key displays Auto and On modes in
addition to Off . Pressing the <SET> soft key displays
the Diversion: Relay TIME and VOLT screen.
