Fan Replacement Kit Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the FLEXmax 80 and is the answer not in the manual?

Questions and answers

Related Manuals for Outback Power Systems FLEXmax 80

Summary of Contents for Outback Power Systems FLEXmax 80

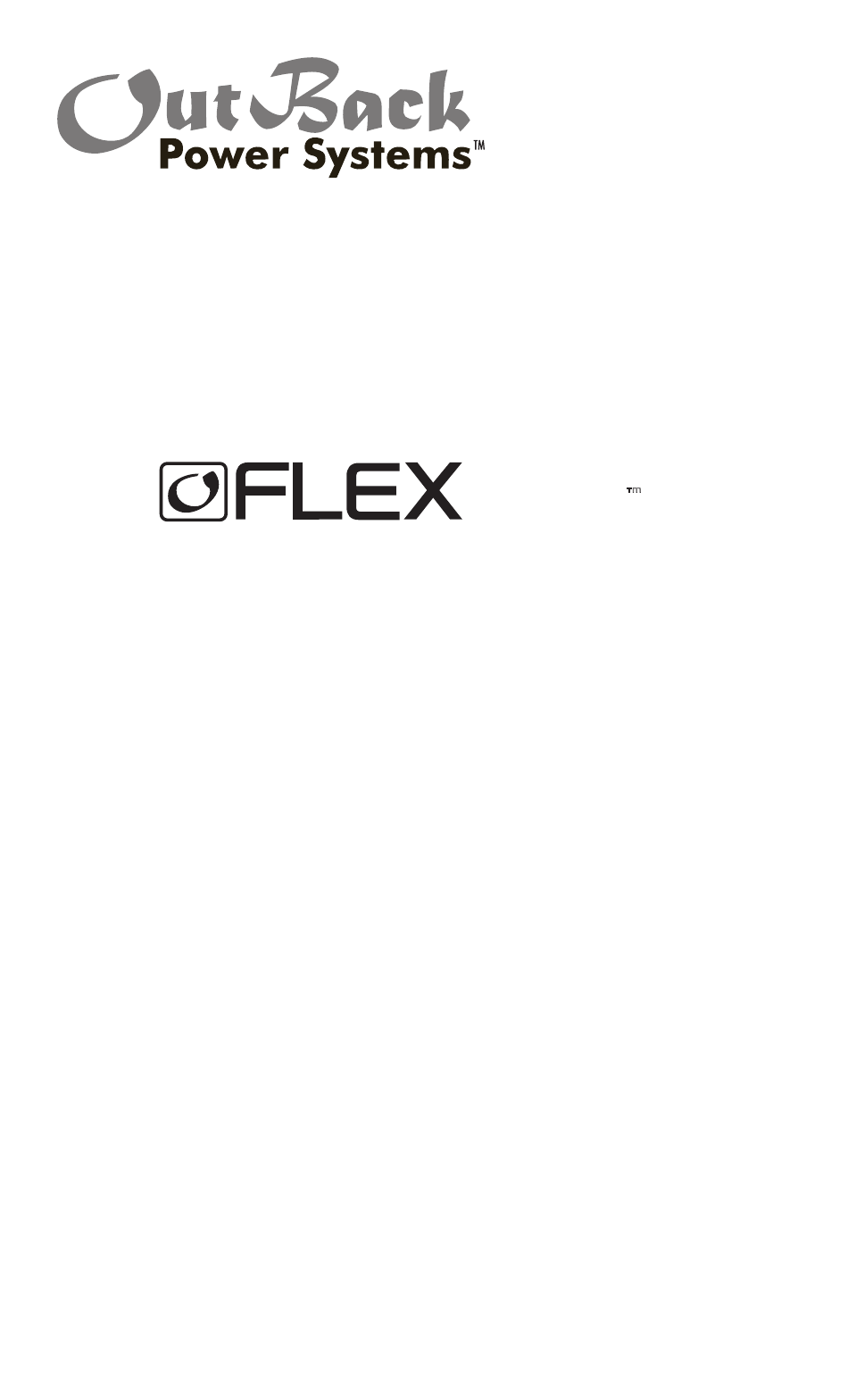

  • Page 1 Fan Replacement Kit Instructions...
  • Page 2 About OutBack Power Systems OutBack Power Systems is a leader in advanced energy conversion technology. Our products include true sine wave inverter/chargers, maximum power point charge controllers, system communication components, as well as breaker panels, breakers, accessories, and assembled systems.
  • Page 3 This product is intended to be installed as part of a permanently grounded electrical system . • The OutBack FLEXmax 80 is designed for indoor installation or installation inside a weatherproof enclosure. • Install all components and wiring according to national and local electrical and building codes.
  • Page 4 FLEXmax 80 Fan Replacement Kit Each fan kit contains the following parts: • (1) 12 VDC Fan • (1) Fan Baffle/Insulator • (1) Machine Screw • (4) 8-32 X 1-1/4 Machine Screws...
  • Page 5 MACHINE SCREW Installation NOTE: Shut off all power sources to the FLEXmax 80 before replacing the fan. 1. Remove the machine screw that secures the fan cover. 2. Press in the sides of the fan cover to release the tabs and pull up on the cover.
  • Page 6 4. With the cover removed, carefully remove the plug from its jack. 5. Remove the four corner screws that secure the fan. 6. Remove the fan from the FLEXmax 80. NOTE: Be careful not to drop any screws into the FLEXmax 80 after removing the fan.
  • Page 7 SIDE OF THE FAN Reinstallation 1. Plug the replacement fan into the electrical jack. NOTE: The fan must blow out from the FLEXmax 80 and should be installed so the directional arrow on its side points away from the insulator.
  • Page 8 Corporate Office European Sales Office 19009 62nd Avenue NE C/ Castelló, 17 Arlington, WA USA 08830 - Sant Boi de Llobregat (+1) 360-435-6030 BARCELONA, España Phone: +34.93.654.9568 www.outbackpower.com 900-0011-01-00 REV A...
