8. Accessing the MAIN Menu

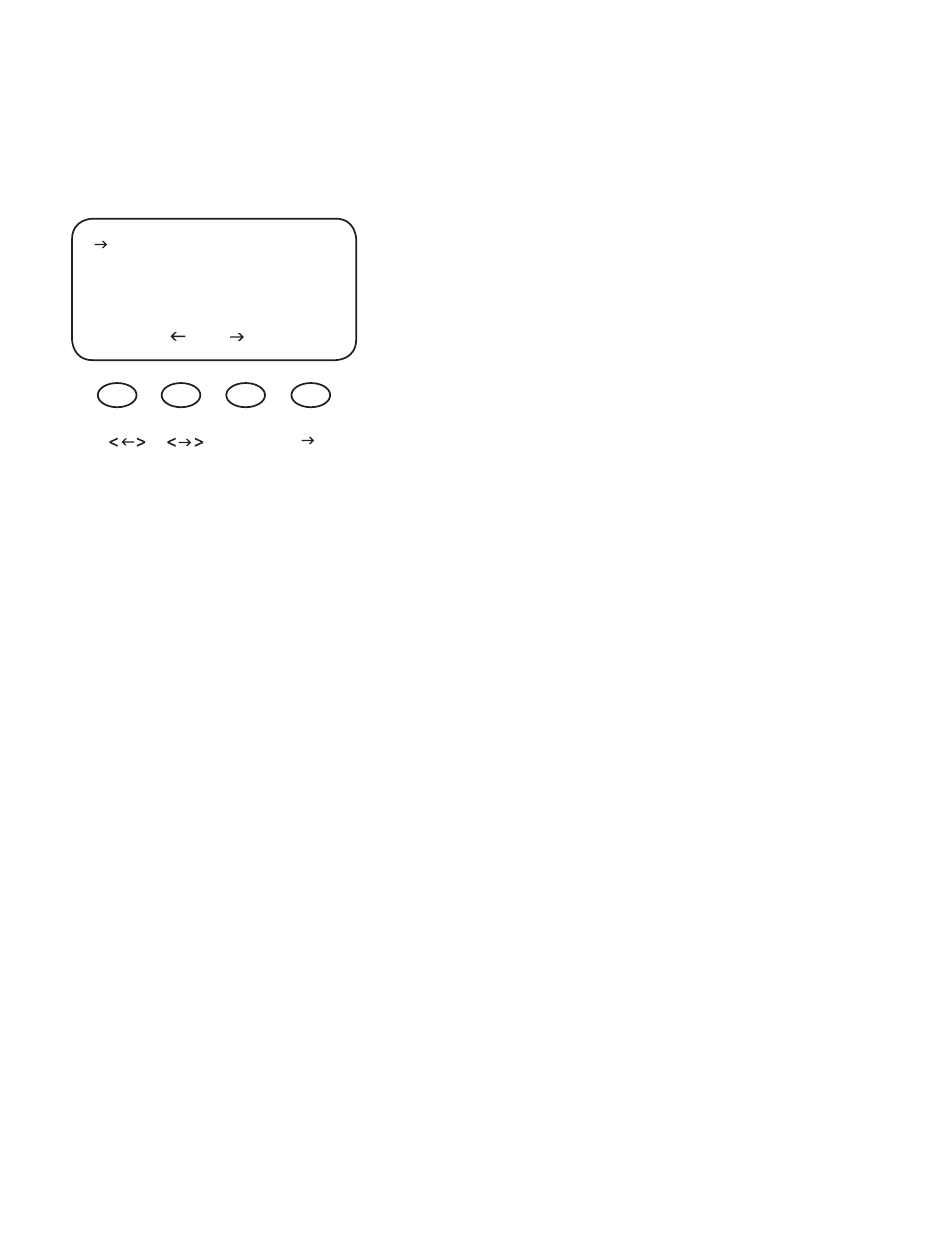

The MAIN Menu allows the user to adjust and calibrate the Charge Controller for maximum perfor-
mance. From the STATUS screen, press the fi rst soft key on the left to open the MAIN Menu screen.
Charger Aux Light
EQ
Misc Advanced
Logging
EXIT
Press
or
the left of the desired screen. The arrow
allows access to any screen to its right.
From the MAIN Menu, a user can choose among the following Charge Controller functions by align-
ing the arrow:
• Charger—CHARGER SETUP
- Adjusts the Current Limit, Absorb, and Float recharging voltage set points
• Aux—AUX OUTPUT CONTROL
- Secondary control circuit for a vent fan, error alarm, and other system-related additions
• Light—BACKLIGHT CONTROL
- Adjusts the backlighting of LCD screen and soft key buttons
• EQ—BATTERY EQUALIZE
- Activates battery equalization recharging (manually or automatically)
• Misc—MISCELLANEOUS
- Additional settings and service information
• Advanced —ADVANCE MENU
- Optimizing/fi ne-tuning the Charge Controller (these are advanced Menus that should be left
alone until the user has a good working knowledge of the Charge Controller and its operations)
• Logging—DATA LOGGING
- Displays recorded power production information
• STATS—Statistics
- Displays recorded peak system information and cumulative kilowatt hours and amp hours
22
Stats
GO
to move the " " to
Press the <GO> soft key after aligning the arrow in
front of the selected menu choice.
Pressing the <EXIT> soft key in the MAIN Menu
returns to the STATUS screen.
