8. AUX Mode and Its Functions

The AUX is a secondary control circuit—essentially, a small power supply that provides a 12VDC (up
to 200 milliamps) output current. It is either active (12VDC on) or inactive (0VDC). Most AUX modes or
functions are designed for specialized applications and are infrequently used.
• To access the AUX MODE from the MAIN Menu, press the <
the Aux selection (see next page).
• A 200 milliamps or less, 12VDC/2.4W device can be wired directly to the AUX terminal; higher output
DC loads require a 12VDC coil relay—also rated up to 200 milliamps or less for the DC coil—which
itself is connected to the AUX output. An internal, re-settable Positive Temperature Co-effi cient (PTC)
fuse protects the AUX internal components from overcurrent or a short circuit.
• For certain AUX control applications the use of a solid state relay is preferred. This is particularly
benefi cial with applications such as the Diversion mode where fast switching (often called PWM
control) allows a more constant battery voltage to be maintained. Both DC and AC load
switching solid state relays are widely available from many sources. Eurotherm and Power-IO
are two suggested solid state relay manufacturers.
• Only one AUX MODE can operate at a time (even if other modes have been preset).
• See Figure 5, page 36, for an AUX set-up wiring diagram example.

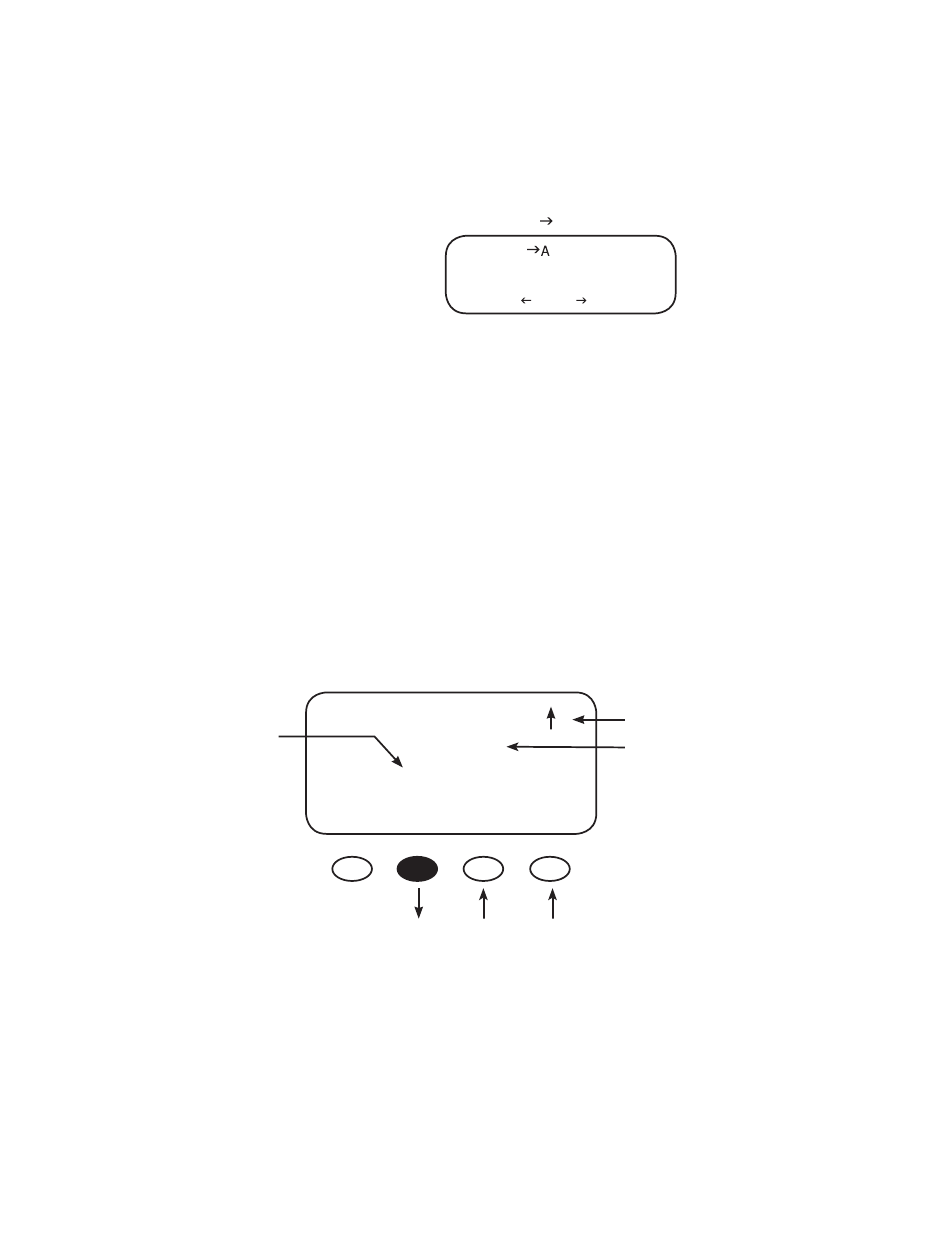

In this Menu, On and Off
indicators show the present
state of the Aux terminals.
Pressing the <MODE> soft
key changes the outputs
value (On, Off , or Auto)
On indicates the Aux Output
is in an active state; Off
indicates an inactive state.
TERMS
• AUX MODE: what is displayed on the Menu
• Aux Output: 12VDC is either available or unavailable at the Aux Terminal
• Aux Terminal: the jack to which a relay is wired
24
Charger
EQ
Logging Stats
EXIT
AUX MODE
Night Light
Output: Off
EXIT NEXT SET
Pressing the <NEXT> soft key
changes to the next mode.
> soft key until the arrow is in front of
ux Light
Misc Advance
GO
This arrow indicates AUX
Polarity applies to this function
allowing the user to reverse the
conditions that activate this
function.
The second line indicates the
Off
present mode for the Aux Output.
When this line blinks, it indicates a
MODE
pending AUX Mode.
When the preferred mode is
displayed, press the <SET> soft
key to select it.
