ERROR OUTPUT

AUX MODE
ERROR OUTPUT
Output: On
EXIT NEXT
AUX MODE
ERROR OUTPUT
EXIT
ERROR LOW BATT VOLTS
<11.5
BACK -
AUX MODE
ERROR OUTPUT
EXIT
AUX MODE
ERROR OUTPUT
Output: On
EXIT NEXT
31
On
On
SET MODE
Off
Auto
01 hrs
VOLT
+
01 hrs
VOLT
On
SET MODE

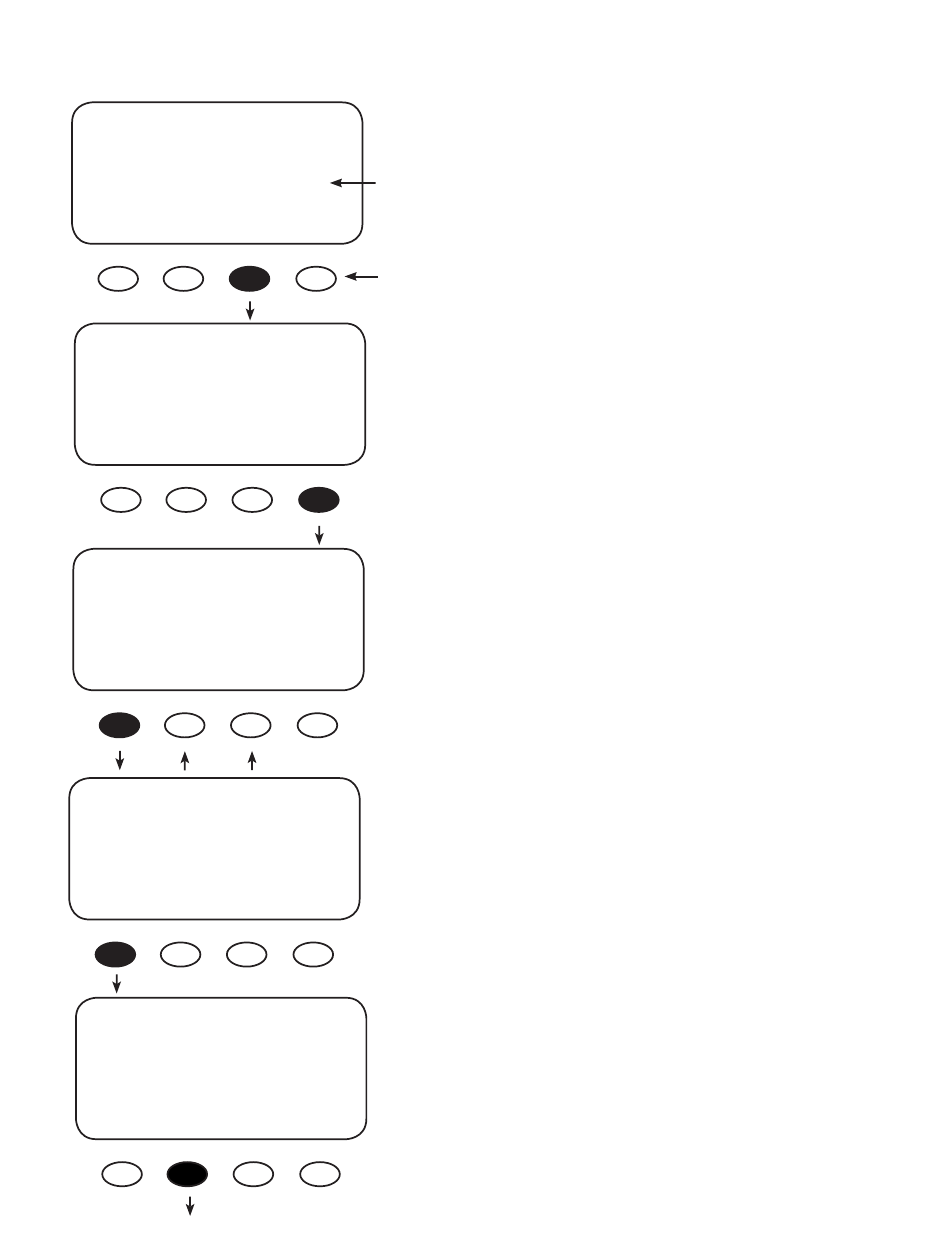

The ERROR OUTPUT default state is On, meaning 12
VDC is present at the AUX terminal. If the Charge
Controller has not charged the batteries for 26
hours or more continuously, the inaudible ERROR
OUTPUT goes into an Off state. The ERROR OUTPUT
is intended for remote locations to signal (e.g., a
telecommunication signal to a computer) when the
Charge Controller has not charged the battery for 26
hours or more. Press the <SET> soft key to advance
to the ERROR OUTPUT volt screen.
The ERROR OUTPUT screen displays the number of
hours the Charge Controller has not been producing
any power (the number of hours in Sleep Mode). Press
the <VOLT> soft key to adjust the ERROR LOW BATT
VOLTS screen.
User-determined value—not less than 10V—will
trigger an alarm or, through a user-supplied modem,
send a signal from a remote installation indicating
the battery charge has reached this value. This
informs the user of a low battery problem. Use the
< - > and < + > soft keys to change this value. Press
the <BACK> soft key to return to the AUX MODE
ERROR OUTPUT screen.
Press the <EXIT> soft key to bring up the original
ERROR OUTPUT screen.
Press the <NEXT> soft key to view the Night Light
screen.
