Important
98-165591-B
If you are making your own power cable, you must connect the Enable
signal (2-), otherwise you cannot switch on the EXPLORER 6075LX! You have
two options:
• Connect pin 2- (Enable) to GND (pin 2+). This means you can only switch
the EXPLORER 6075LX on and off using the Power switch on the Base Unit.
• Connect a remote on/off switch between pin 2- (Enable) and pin 2+
(GND). This means that when the Power switch on the Base Unit is on, you
can use your own remote switch to turn the unit on and off.
1-: Not connected
2+: GND
Black wire

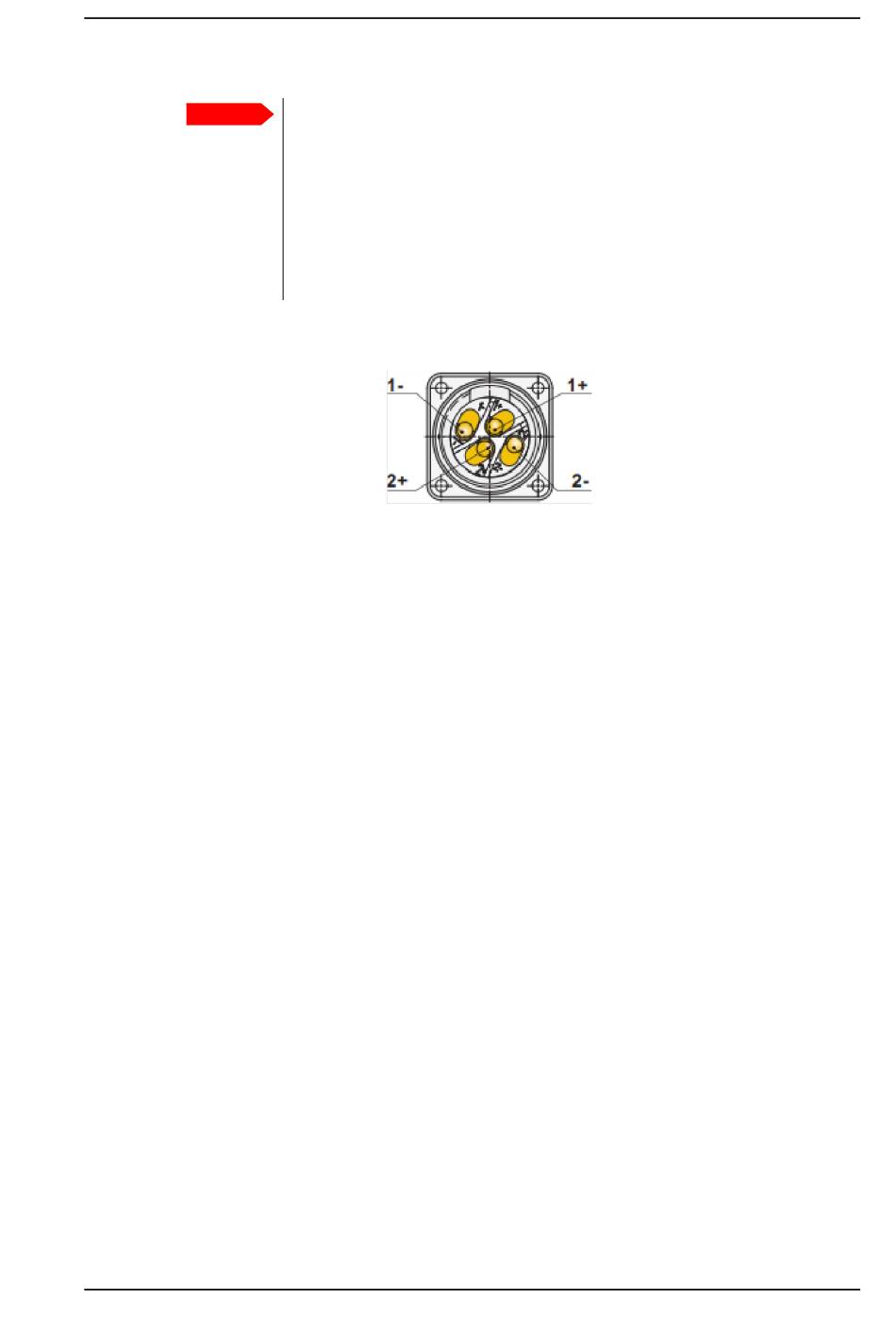

Figure 3-14: DC power, cable connector pinout.
Chapter 3: Assembly & start up
To assemble the EXPLORER 6075LX
1+: 24-48 VDC
(Red wire)
Cable connector
view from back
of connector
2-: Enable
3-9
