2.1.2 Satellite service
The EXPLORER 6075LX operates in the Ka-band (19.2 to 30 GHz) and uses the Inmarsat
Global Xpress service, see below.
Global Xpress (GX) service
The Global Xpress service from Inmarsat delivers consistent high-performance download
speeds of up to 50 Mbps and 5 Mbps over the uplink. The following figure shows the
coverage map of the GX service.
90°
80°
70°
60°
50°
40°
30°
20°
10°
0°
10°
20°
30°
40°
50°
60°
70°
80°
90°
180° 160°
I-5 F2
Global Xpress network available
over at least 99% of this area
a. Source: www.inmarsat.com
The satellite positions and predefined satellite profiles are listed in the table below.
Satellite profile
GX profile
Manual 62.6E GX
Manual 55.0W GX
Manual 179.6E GX
Manual 56.5E GX
Service activation
The service is activated by your service provider. For details, contact your service provider.
98-165591-B
EXPLORER 6075LX Stabilized Auto-Acquire Antenna System for Inmarsat Global Xpress
140° 120° 100° 80° 60°
I-5 F4 I-5 F1 I-5 F3
Extendable Global Xpress
coverage via steerable beams

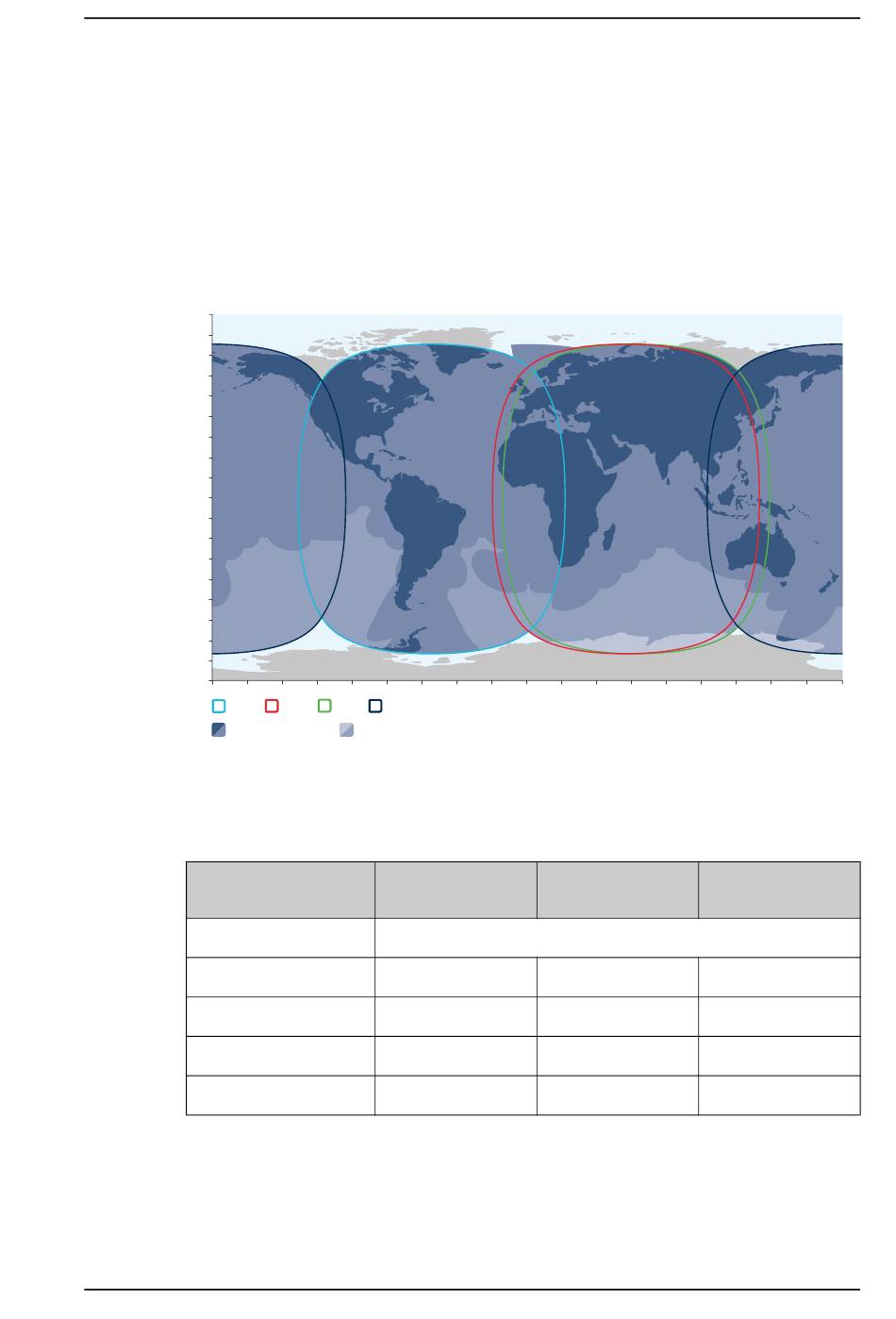

Figure 2-2: GX coverage map
