11. Appendix

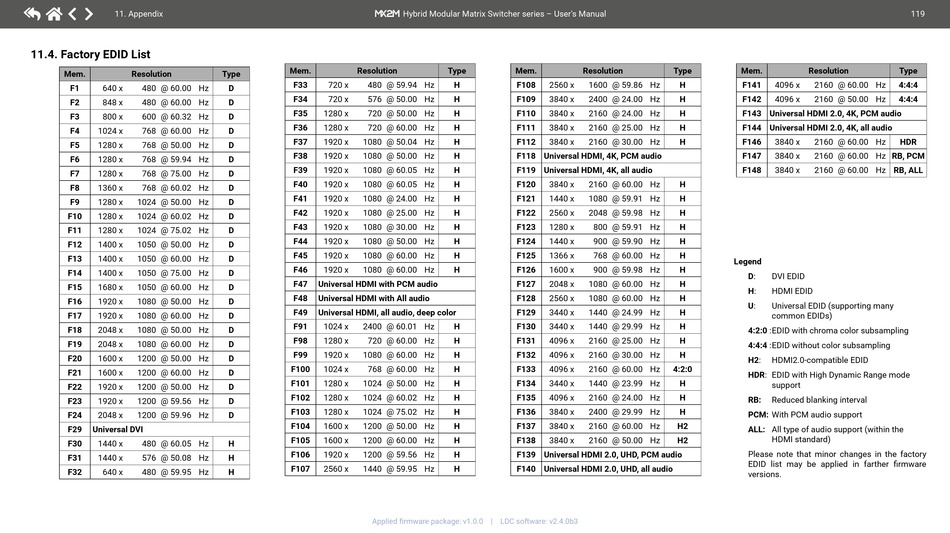

11.4. Factory EDID List
Mem. Resolution
F1 640 x 480 @ 60.00 Hz
F2 848 x 480 @ 60.00 Hz
F3 800 x 600 @ 60.32 Hz
F4 1024 x 768 @ 60.00 Hz
F5 1280 x 768 @ 50.00 Hz
F6 1280 x 768 @ 59.94 Hz
F7 1280 x 768 @ 75.00 Hz
F8 1360 x 768 @ 60.02 Hz
F9 1280 x 1024 @ 50.00 Hz
F10 1280 x 1024 @ 60.02 Hz
F11 1280 x 1024 @ 75.02 Hz
F12 1400 x 1050 @ 50.00 Hz
F13 1400 x 1050 @ 60.00 Hz
F14 1400 x 1050 @ 75.00 Hz
F15 1680 x 1050 @ 60.00 Hz
F16 1920 x 1080 @ 50.00 Hz
F17 1920 x 1080 @ 60.00 Hz
F18 2048 x 1080 @ 50.00 Hz
F19 2048 x 1080 @ 60.00 Hz
F20 1600 x 1200 @ 50.00 Hz
F21 1600 x 1200 @ 60.00 Hz
F22 1920 x 1200 @ 50.00 Hz
F23 1920 x 1200 @ 59.56 Hz
F24 2048 x 1200 @ 59.96 Hz
F29 Universal DVI
F30 1440 x 480 @ 60.05 Hz
F31 1440 x 576 @ 50.08 Hz
F32 640 x 480 @ 59.95 Hz
Mem. Resolution
Type
F33 720 x 480 @ 59.94 Hz
D
F34 720 x 576 @ 50.00 Hz
D
F35 1280 x 720 @ 50.00 Hz
D
F36 1280 x 720 @ 60.00 Hz
D
F37 1920 x 1080 @ 50.04 Hz
D
F38 1920 x 1080 @ 50.00 Hz
D
F39 1920 x 1080 @ 60.05 Hz
D
F40 1920 x 1080 @ 60.05 Hz
D
F41 1920 x 1080 @ 24.00 Hz
D
F42 1920 x 1080 @ 25.00 Hz
D
F43 1920 x 1080 @ 30.00 Hz
D
F44 1920 x 1080 @ 50.00 Hz
D
F45 1920 x 1080 @ 60.00 Hz
D
F46 1920 x 1080 @ 60.00 Hz
D
F47 Universal HDMI with PCM audio
D
F48 Universal HDMI with All audio
D
F49 Universal HDMI, all audio, deep color
D
F91 1024 x 2400 @ 60.01 Hz
D
F98 1280 x 720 @ 60.00 Hz
D
F99 1920 x 1080 @ 60.00 Hz
D
F100 1024 x 768 @ 60.00 Hz
D
F101 1280 x 1024 @ 50.00 Hz
D
F102 1280 x 1024 @ 60.02 Hz
D
F103 1280 x 1024 @ 75.02 Hz
D
F104 1600 x 1200 @ 50.00 Hz
F105 1600 x 1200 @ 60.00 Hz
H
F106 1920 x 1200 @ 59.56 Hz
H
F107 2560 x 1440 @ 59.95 Hz
H
Applied firmware package: v1.0.0 | LDC software: v2.4.0b3
Hybrid Modular Matrix Switcher series – User's Manual
Type Mem.
H F108 2560 x
H F109 3840 x
H F110 3840 x
H F111 3840 x
H F112 3840 x
H F118 Universal HDMI, 4K, PCM audio
H F119 Universal HDMI, 4K, all audio
H F120 3840 x
H F121 1440 x
H F122 2560 x
H F123 1280 x
H F124 1440 x
H F125 1366 x
H F126 1600 x
F127 2048 x
F128 2560 x
F129 3440 x
H F130 3440 x
H F131 4096 x
H F132 4096 x
H F133 4096 x
H F134 3440 x
H F135 4096 x
H F136 3840 x
H F137 3840 x
H F138 3840 x
H F139 Universal HDMI 2.0, UHD, PCM audio
H F140 Universal HDMI 2.0, UHD, all audio
Resolution Type Mem.
1600 @ 59.86 Hz H F141
2400 @ 24.00 Hz H F142
2160 @ 24.00 Hz H F143 Universal HDMI 2.0, 4K, PCM audio
2160 @ 25.00 Hz H F144 Universal HDMI 2.0, 4K, all audio
2160 @ 30.00 Hz H F146
F147
F148
2160 @ 60.00 Hz H
1080 @ 59.91 Hz H
2048 @ 59.98 Hz H
800 @ 59.91 Hz H
900 @ 59.90 Hz H
768 @ 60.00 Hz H
Legend
900 @ 59.98 Hz H
D:
1080 @ 60.00 Hz H
H:
1080 @ 60.00 Hz H
U:
1440 @ 24.99 Hz H
1440 @ 29.99 Hz H
4:2:0 : EDID with chroma color subsampling
2160 @ 25.00 Hz H
4:4:4 : EDID without color subsampling
2160 @ 30.00 Hz H
H2:
2160 @ 60.00 Hz 4:2:0
HDR: EDID with High Dynamic Range mode
1440 @ 23.99 Hz H
2160 @ 24.00 Hz H
RB:
2400 @ 29.99 Hz H
PCM: With PCM audio support
2160 @ 60.00 Hz H2
ALL: All type of audio support (within the
2160 @ 50.00 Hz H2
Please note that minor changes in the factory
EDID list may be applied in farther firmware
versions.
119
Resolution Type
4096 x 2160 @ 60.00 Hz 4:4:4
4096 x 2160 @ 50.00 Hz 4:4:4
3840 x 2160 @ 60.00 Hz HDR
3840 x 2160 @ 60.00 Hz RB, PCM
3840 x 2160 @ 60.00 Hz RB, ALL
DVI EDID
HDMI EDID
Universal EDID (supporting many
common EDIDs)
HDMI2.0-compatible EDID
support
Reduced blanking interval
HDMI standard)
