Programmable Configuration Data
Table A-2
Master
I2C1
A.3

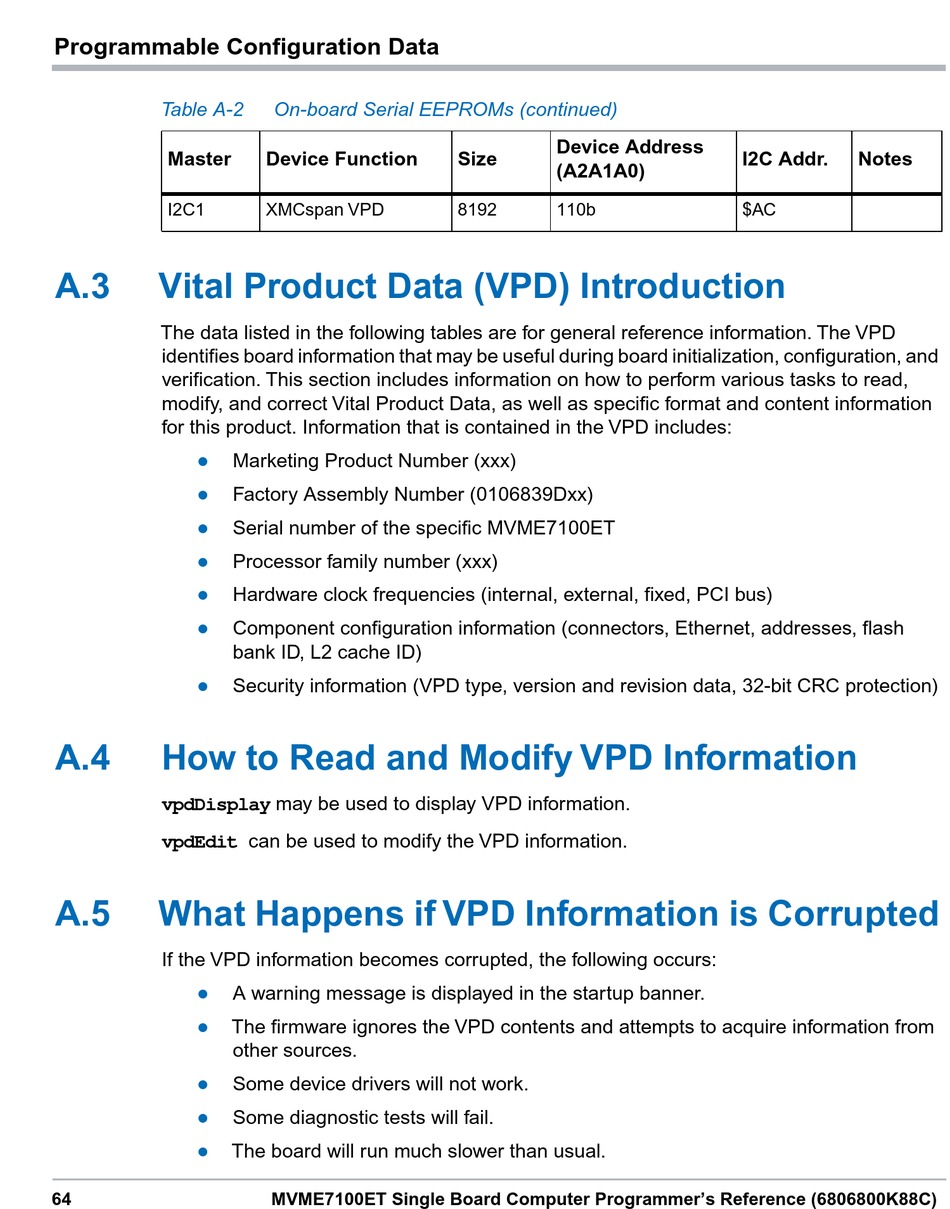

Vital Product Data (VPD) Introduction

The data listed in the following tables are for general reference information. The VPD
identifies board information that may be useful during board initialization, configuration, and
verification. This section includes information on how to perform various tasks to read,
modify, and correct Vital Product Data, as well as specific format and content information
for this product. Information that is contained in the VPD includes:
 Marketing Product Number (xxx)
 Factory Assembly Number (0106839Dxx)

Serial number of the specific MVME7100ET
 Processor family number (xxx)
 Hardware clock frequencies (internal, external, fixed, PCI bus)
 Component configuration information (connectors, Ethernet, addresses, flash
bank ID, L2 cache ID)
 Security information (VPD type, version and revision data, 32-bit CRC protection)
A.4

How to Read and Modify VPD Information

vpdDisplay may be used to display VPD information.
vpdEdit can be used to modify the VPD information.
A.5

What Happens if VPD Information is Corrupted

If the VPD information becomes corrupted, the following occurs:
 A warning message is displayed in the startup banner.
 The firmware ignores the VPD contents and attempts to acquire information from
other sources.
 Some device drivers will not work.
 Some diagnostic tests will fail.
 The board will run much slower than usual.
64
On-board Serial EEPROMs (continued)
Device Function
XMCspan VPD
MVME7100ET Single Board Computer Programmer's Reference (6806800K88C)
Device Address
Size
(A2A1A0)
8192 110b
Programmable Configuration Data
I2C Addr. Notes
$AC
