Mechanical Installation

3 Mechanical Installation

3.1 Unpacking

3.1.1 Items Supplied
Items supplied may vary according to product configu-
ration.
•
Make sure the items supplied and the information
on the nameplate correspond to the order confir-
mation.
•
Check the packaging and the frequency converter
visually for damage caused by inappropriate
handling during shipment. File any claim for
damage with the carrier. Retain damaged parts
for clarification.
VLT R
AQUA Drive
www.danfoss.com
1
T/C: FC-202P45KT4E20H1XGXXXXSXXXXAXBXCXXXXDX
2
P/N: 131F6653 S/N: 038010G502
4
45kW(400V) / 60HP(460V)
5
IN: 3x380-480V 50/60Hz 82/73A
6
OUT: 3x0-Vin 0-590Hz 90/80A
7
o
CHASSIS/ IP20 Tamb.45 C/113 F
* 1 3 1 F 6 6 5 3 0 3 8 0 1 0 G 5 0 2 *
Listed 76X1 E134261 Ind. Contr. Eq.
CAUTION:
See manual for special condition/mains fuse
10
voir manual de conditions speclales/fusibles
WARNING:
Stored charge, wait 15 min.
`
Charge residuelle, attendez 15 min.
1 Type code
2 Order number
3 Serial number
4 Power rating
Input voltage, frequency and current (at low/high
5
voltages)
Output voltage, frequency and current (at low/high
6
voltages)
7 Enclosure type and IP rating
8 Maximum ambient temperature
9 Certifications
10 Discharge time (Warning)

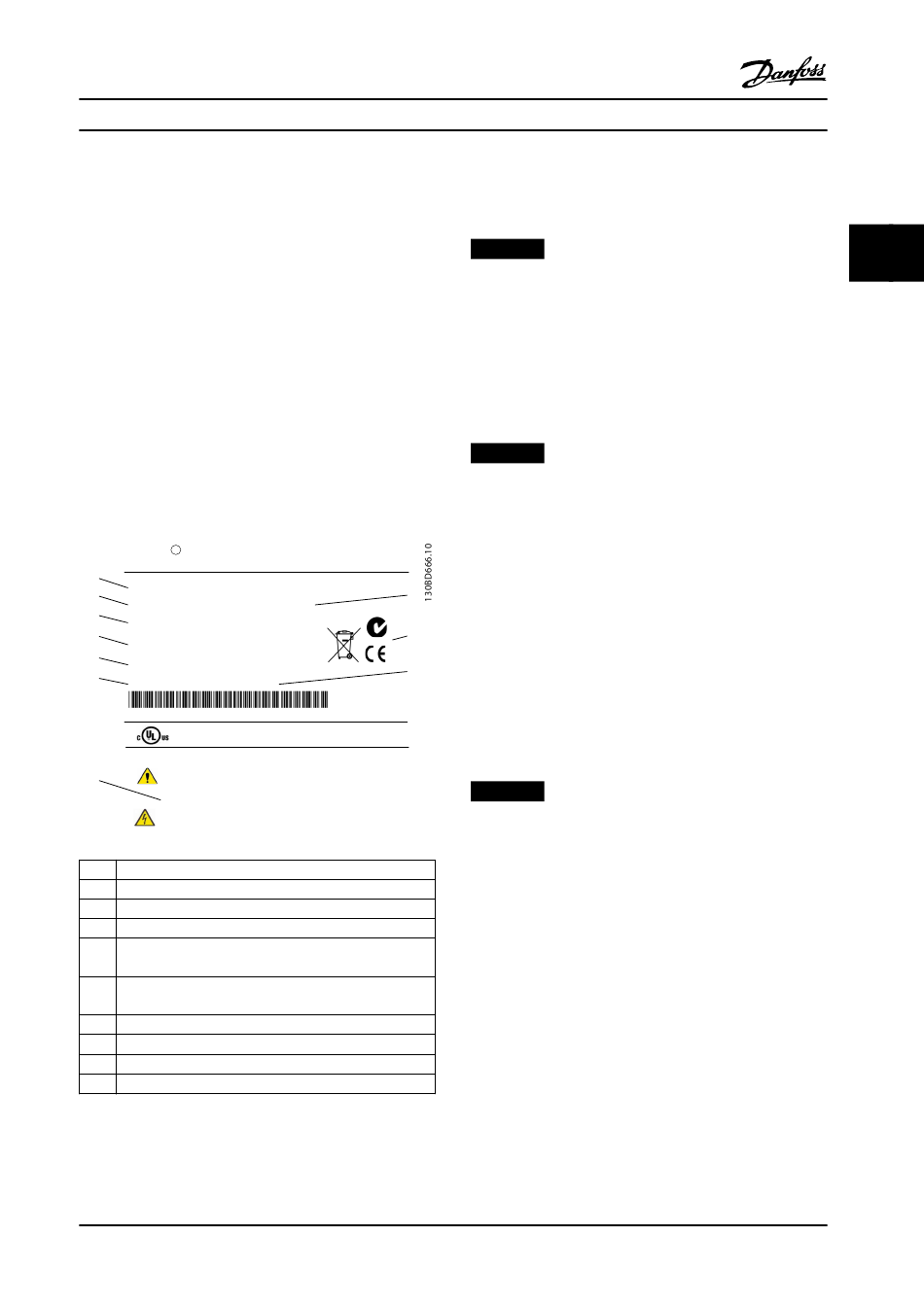

Figure 3.1 Product Nameplate (Example)
MG20MC22
Operating Instructions
3
9
8
o
MADE IN
DENMARK
`
Danfoss A/S © 01/2015 All rights reserved.
NOTICE!
Do not remove the nameplate from the frequency
converter. Removing the nameplate voids the warranty.
3.1.2 Storage
Ensure that the requirements for storage are fulfilled. Refer
to chapter 8.4 Ambient Conditions for further details.

3.2 Installation Environments

NOTICE!
In environments with airborne liquids, particles, or
corrosive gases, ensure that the IP/type rating of the
equipment matches the installation environment. Failure
to meet requirements for ambient conditions can reduce
the lifetime of the frequency converter. Ensure that
requirements for air humidity, temperature, and altitude
are met.
Vibration and shock
The frequency converter complies with requirements for
units mounted on the walls and floors of production
premises, as well as in panels bolted to walls or floors.
For detailed ambient conditions specifications, refer to
chapter 8.4 Ambient Conditions.

3.3 Mounting

NOTICE!
Improper mounting can result in overheating and
reduced performance.
Cooling
•
Ensure that top and bottom clearance for air
cooling is provided. See Figure 3.2 for clearance
requirements.
3 3
