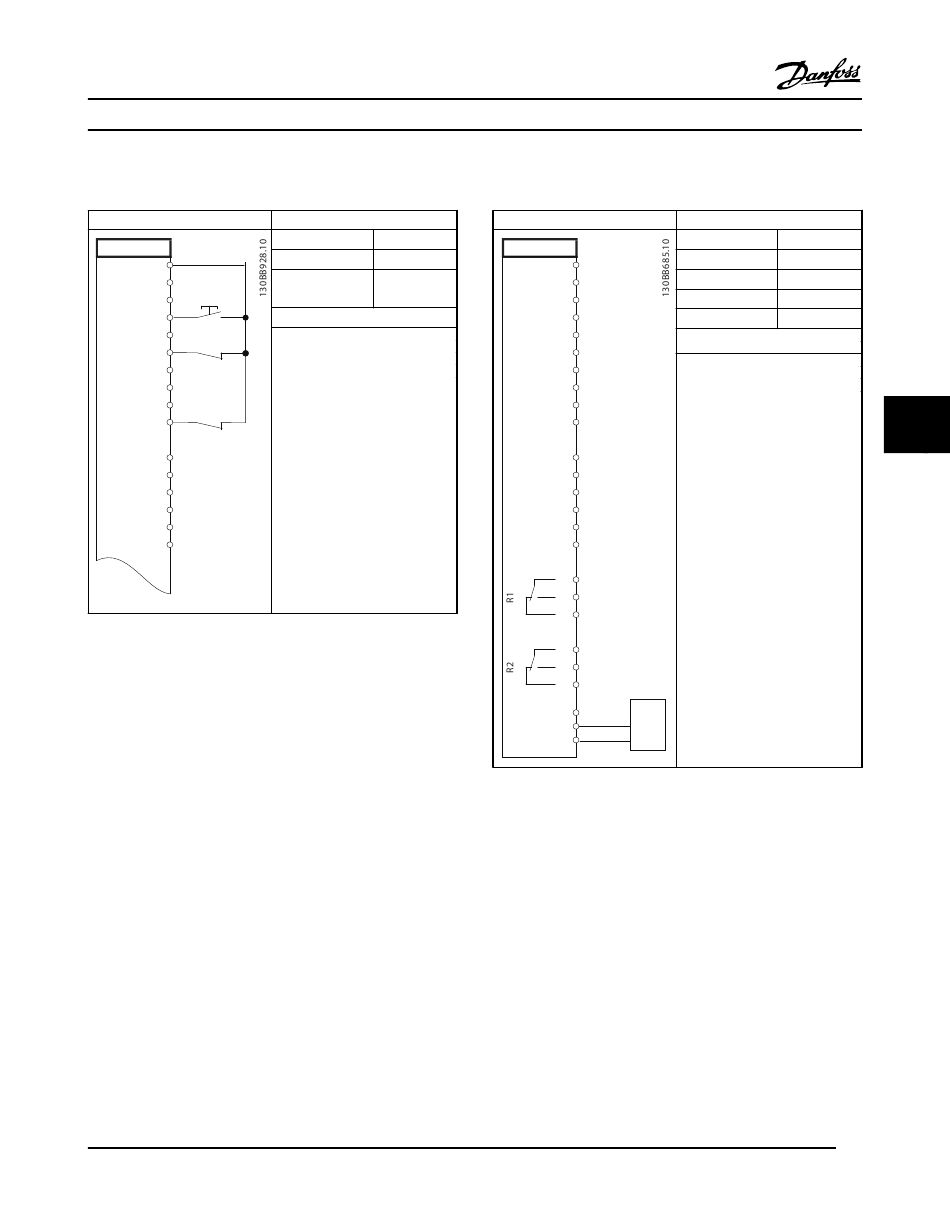

Application Set-up Examples
6.1.3 External Alarm Reset
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.8 External Alarm Reset
®
VLT HVAC Drive Instruction Manual
Parameters
Function Setting
5-11 Terminal 19 [1] Reset
Digital Input
* = Default Value
Notes/comments:
D IN 37 is an option.
MG11AJ22 - Rev. 2013-09-13
6.1.4 RS-485
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
01
02
03
04
05
RS-485
06
61
+
68
69
-
Table 6.9 RS-485 Network Connection
Parameters
Function Setting
8-30 Protocol FC*
8-31 Address 1*
8-32 Baud Rate 9600*
* = Default Value
Notes/comments:
Select protocol, address and
baud rate in the above-
mentioned parameters.
D IN 37 is an option.
