Deutschmann Automation GmbH & Co. KG
Technical data

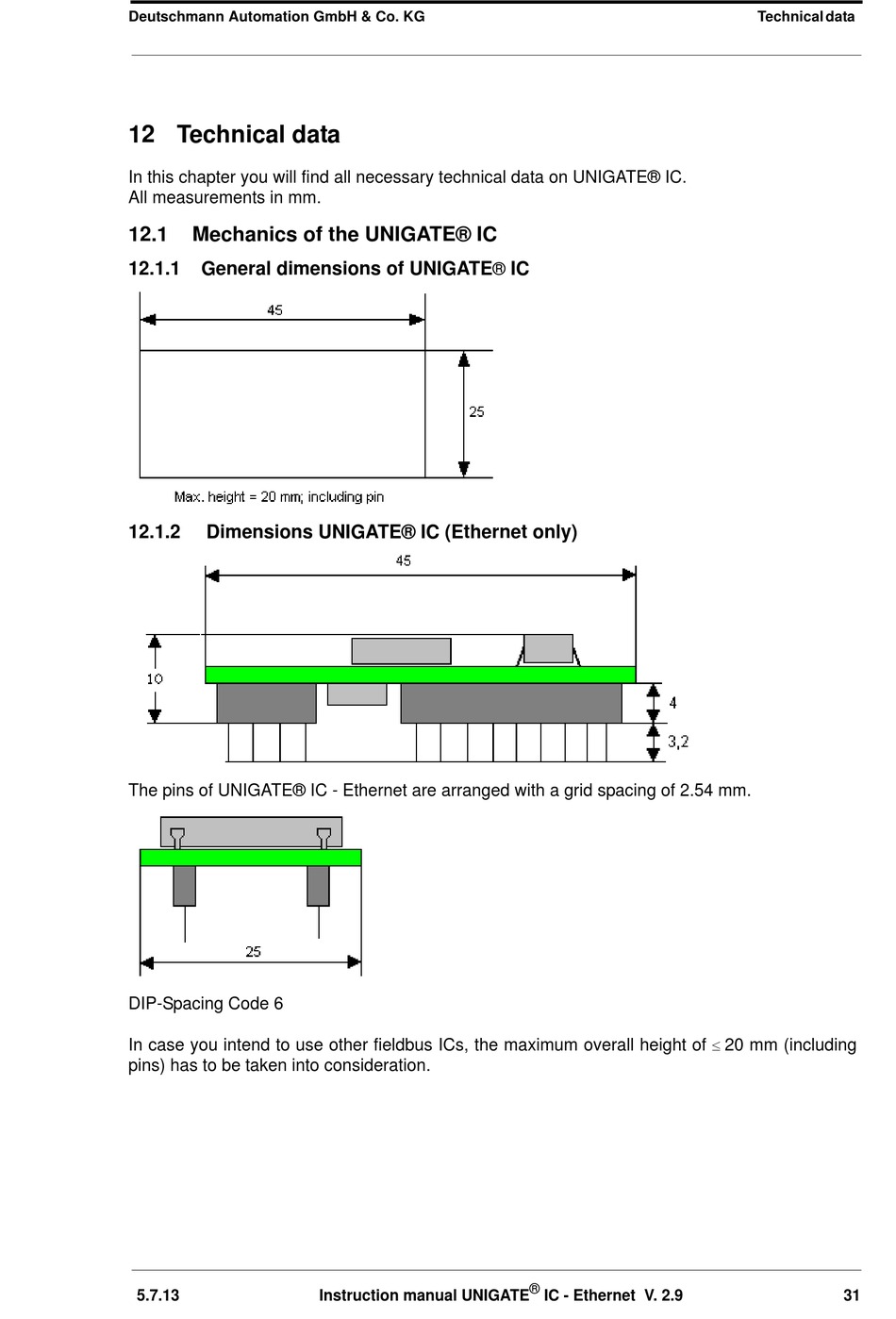

12 Technical data
In this chapter you will find all necessary technical data on UNIGATE® IC.
All measurements in mm.
12.1
Mechanics of the UNIGATE® IC
12.1.1
General dimensions of UNIGATE
IC
®
12.1.2
Dimensions UNIGATE® IC (Ethernet only)
The pins of UNIGATE® IC - Ethernet are arranged with a grid spacing of 2.54 mm.
DIP-Spacing Code 6
In case you intend to use other fieldbus ICs, the maximum overall height of
20 mm (including
pins) has to be taken into consideration.
®
5.7.13
Instruction manual UNIGATE
IC - Ethernet V. 2.9
31
