Hardware and Installation Manual

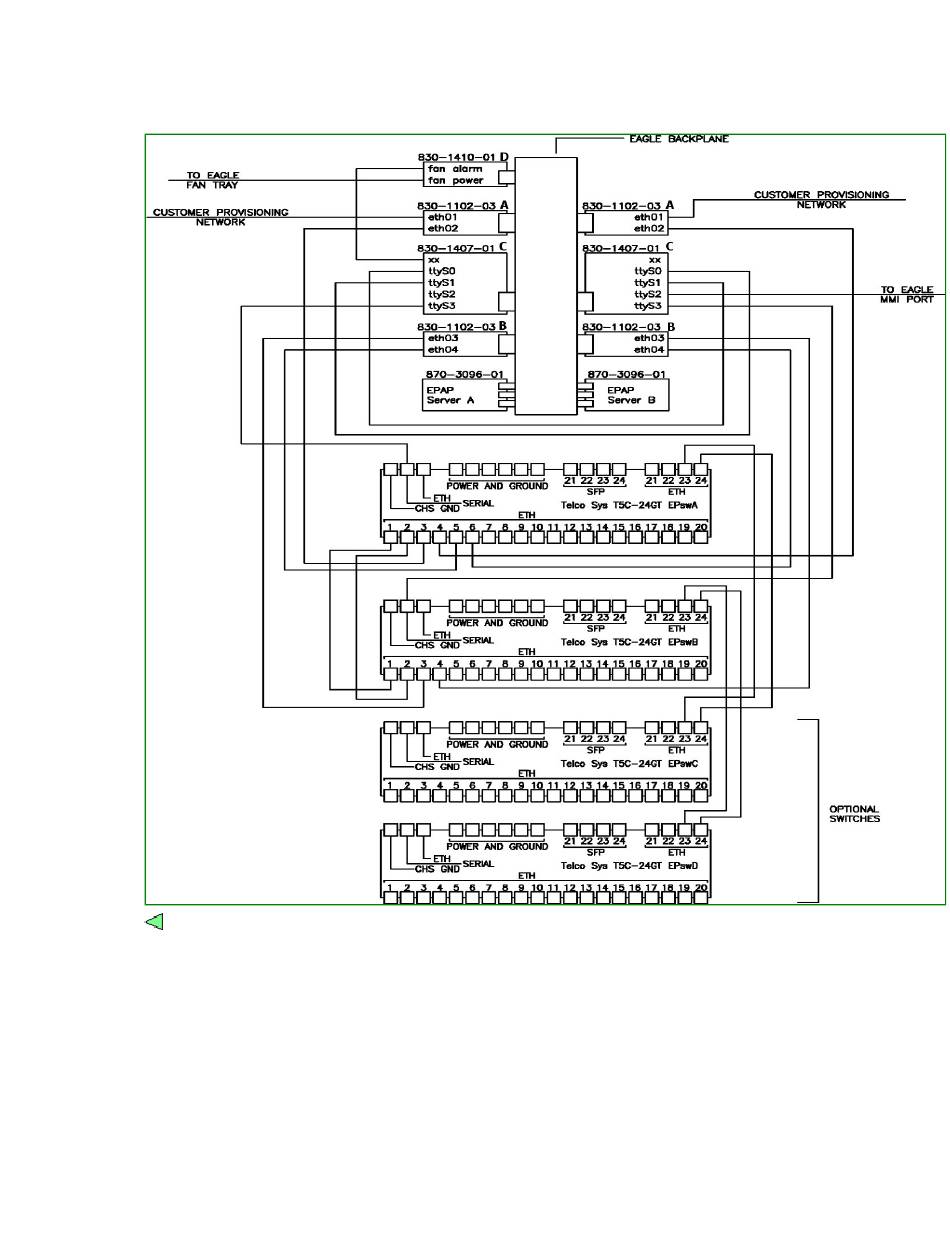

Figure 16: EPAP Network Connections
A. Adapter installed in the Upper position, odd slot
B. Adapter installed in the Lower position, odd slot
C. Adapter installed in the Lower and Upper position, even slot
D. Adapter installed on EAGLE backplane fan Connector (Power and Alarm)
910-6535-001 Revision D, February 2014
ExAP or LSMS Network Integration
50
