Hardware and Installation Manual
Installing an E5-APP-B Card
To install an E5-APP-B card into an EAGLE shelf:
Note: The E5-APP-B Card should arrive in the LOCKED state. If it arrives UNLOCKED, skip to step
4.
1. On the E5-APP-B card, slide the Ejector switch (4) up to the UNLOCKED position. See
E5-APP-B Card Inject Hardware Switch,

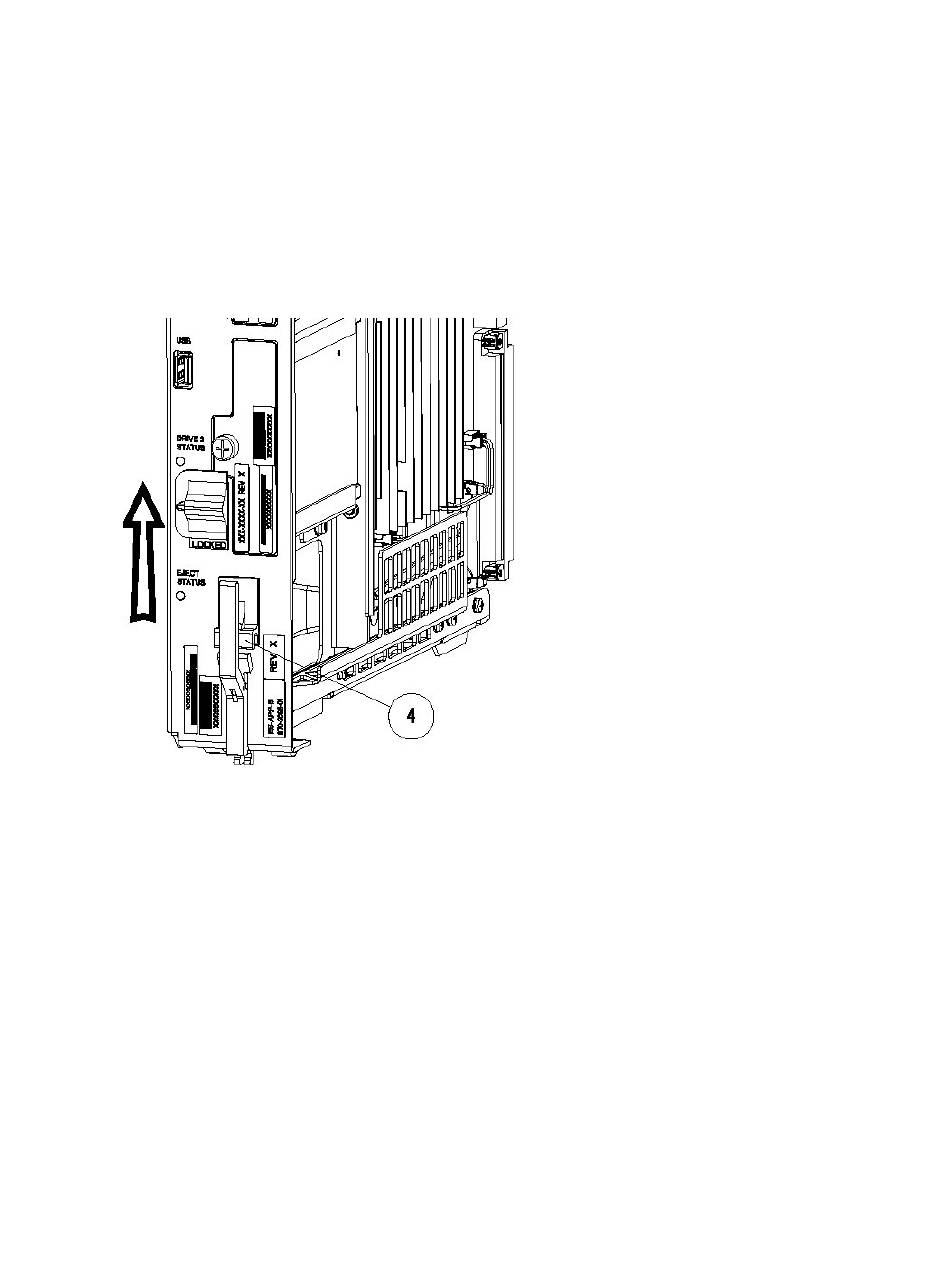

Figure 10: E5-APP-B Card Inject Hardware Switch, UNLOCKED
2. Grasp the upper and lower card Inject/Eject (I/E) lever release (3) just underneath the I/E lever,
and press it to meet the I/E lever. This is the mechanical interlock for the card (see
E5-APP-B Card Inject
3. While holding the I/E interlock and lever, pull the levers (2) away from the card until they are
parallel to the floor.
Figure 11: E5-APP-B Card UNLOCKED
inserting E5-APP-B Card into the EAGLE shelf.
910-6535-001 Revision D, February 2014
UNLOCKED.
Levers).
illustrates the angle of the interlocks and levers just before
Installing and Removing E5-APP-B Cards
Figure 10:
Figure 12:
41
