Hardware and Installation Manual

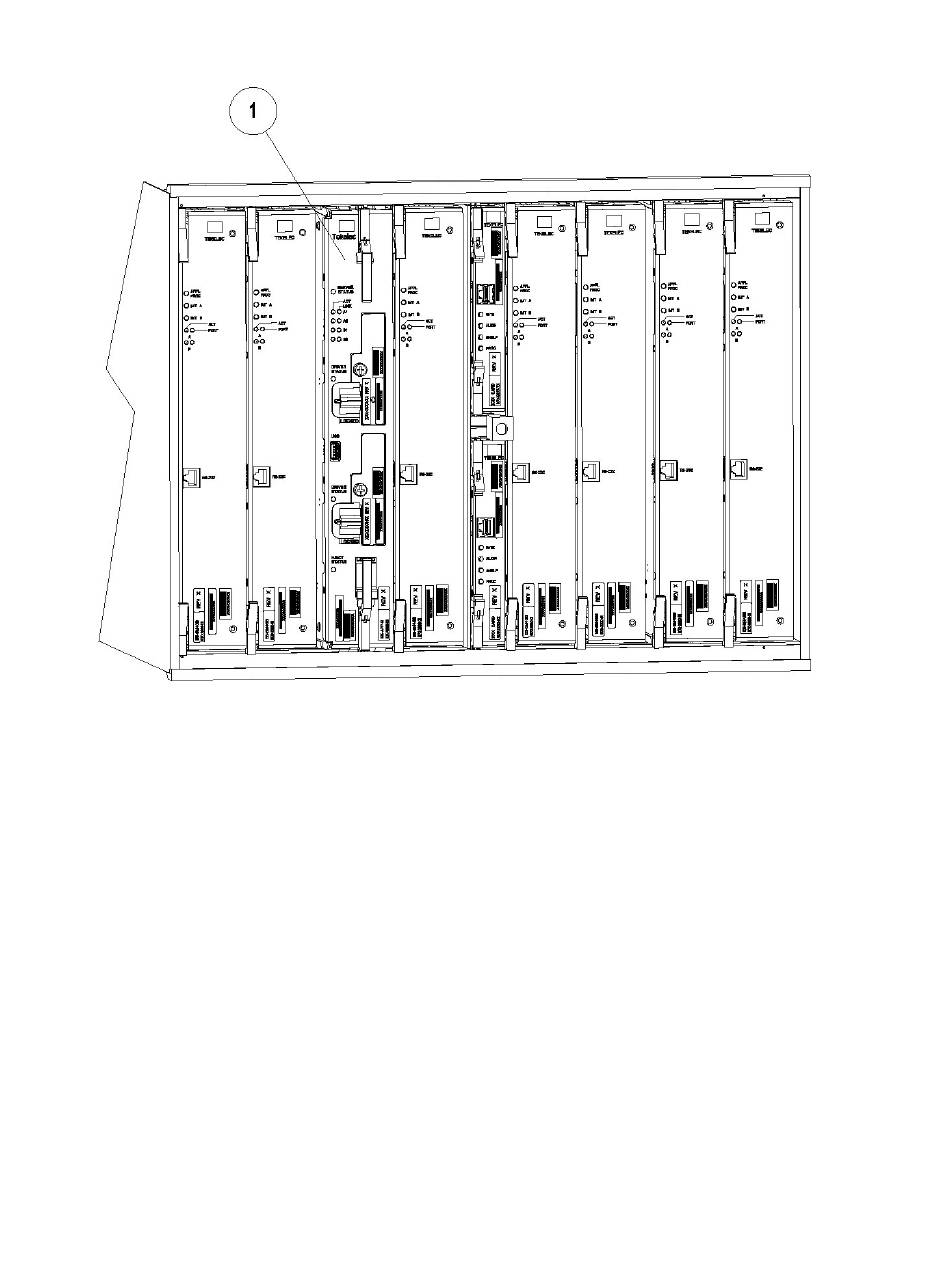

Figure 7: E5-APP-B Card In Shelf
E5-APP-B Card Features
A single E5-APP-B card is a general-purpose application server (AS) that offers high transaction rates
with low latency. It supports a variety of application solutions for the wireless and wireline
telecommunications infrastructure to provide the building blocks for next-generation signaling systems.
The E5-APP-B card is a scalable computing platform constructed with state-of-the-art components
packaged on a double-wide card designed to fit into two slots of an EAGLE shelf. Each E5-APP-B card
has two removable drive modules. E5-APP-B cards are installed in pairs for redundancy and high
availability.
Figure 8: E5-APP-B Card
especially Field Replaceable Units (FRUs), are located.
910-6535-001 Revision D, February 2014
shows a single E5-APP-B card. This view shows where hardware components,
E5-APP-B Card Overview
31
