Figure 2: Drive Module Label Locations - Oracle EAGLE Application B Card Hardware And Installation Manual

Hardware and Installation Manual
1. Request that the Customer Care Center assist you in determining whether the drive module
assembly that needs to be replaced is in drive A or drive B.
2. Find the part number information on the drive module. See
for illustration.

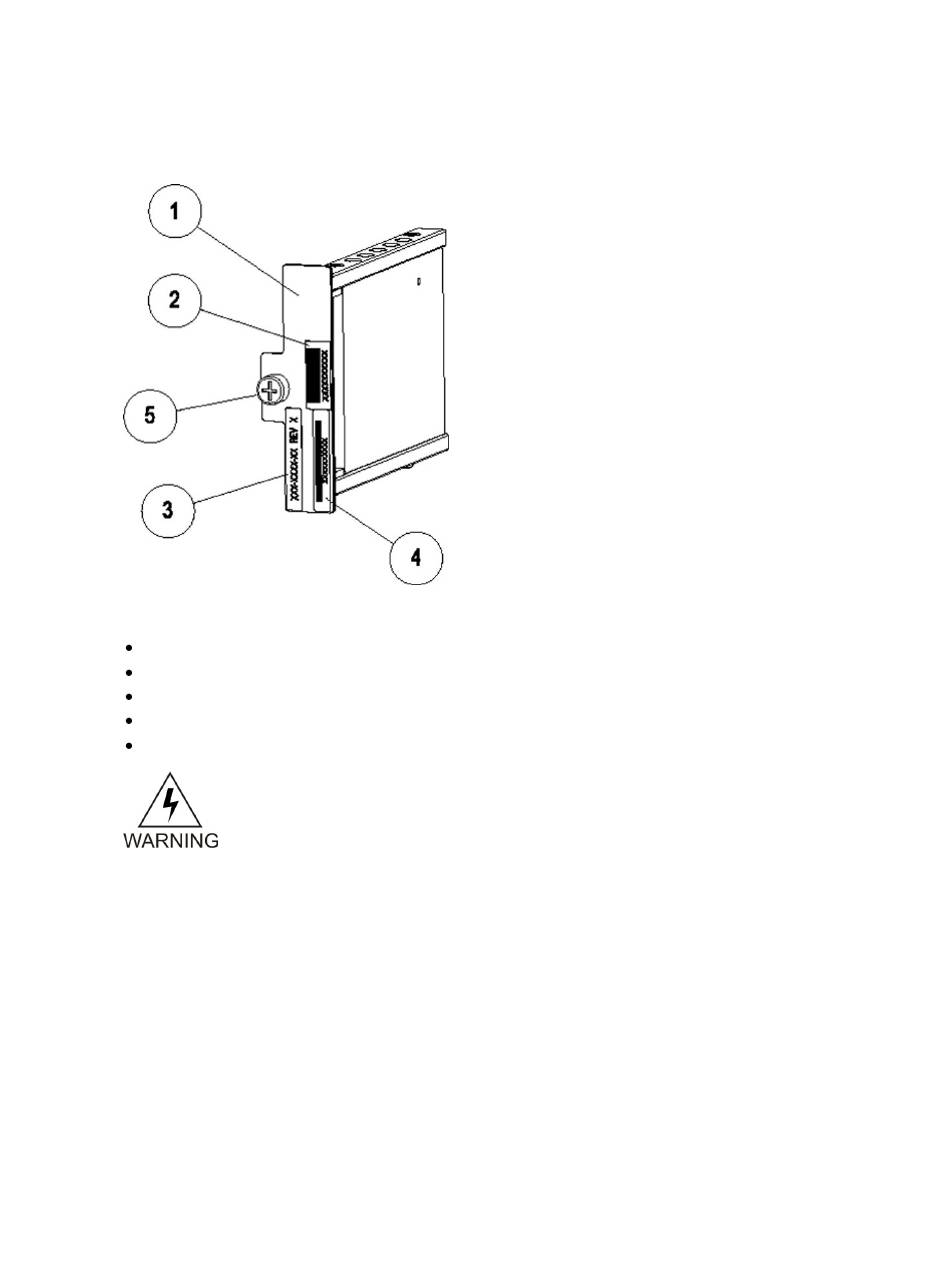

Figure 2: Drive Module Label Locations

Drive module Assembly (1)
CLEI Label (2)
Part Number and Revision Label (3)
Serial Number Label (4)
Locking Screw (5)
Warning: Always wear an ESD wrist strap grounded to the bench or frame when
working on electronic components.
3. Report the requested part number information on the drive module label.
