CYBEX 770T Service Manual page 251

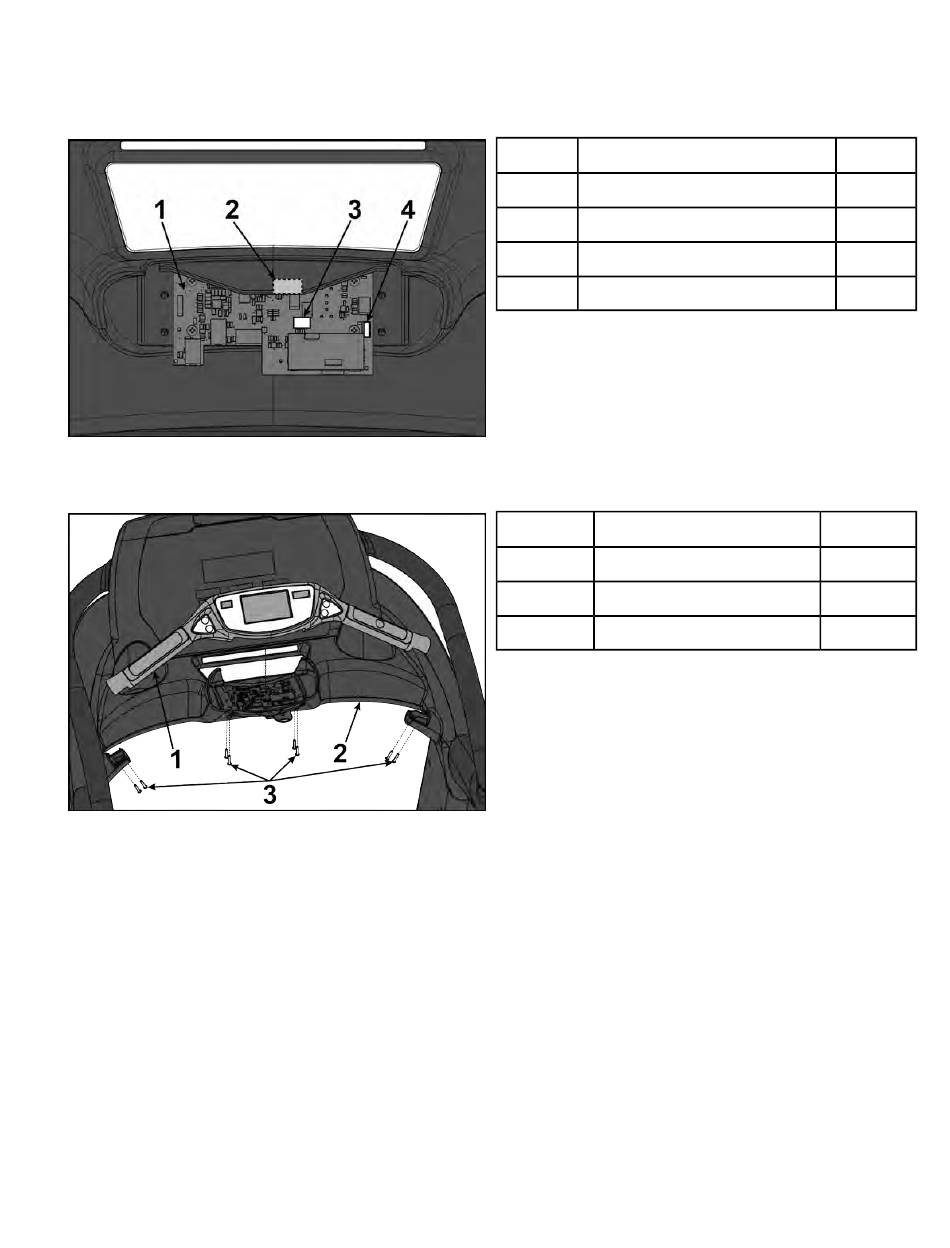

Install handset assembly
1. Place handset assembly in position and plug in the following cables: graphics board (J12), handset
membrane (J9), contact heart rate grips (J7) and the ground wire.
2. Route iPod cable through notch in access cover.
3. Install eight screws securing handset assembly to console using a Phillips screwdriver.
Complete installation
1. Plug the power cord into the power outlet.
2. Verify the power cord is not being pinched under the front of the treadmill.
3. Operate the unit at all levels to verify proper operation.
Wireless Audio Receiver Module
Tools Required:
• Phillips screwdriver
• ESD (Electrostatic Discharge) grounding strap
Parts required to install Wireless Audio Receiver Module.
Cybex 770T/790T Treadmill Part Number
Page 251 of 261
Item Description
1 MCC board
2 Graphics board (J12)
3 Handset membrane (J9)
4 Contact heart rate grips (J7)
Item Description
1 Handset assembly
2 Console
3 Screw
Qty.
1
1
1
1
Qty.
1
1
8
