CYBEX 770T Service Manual page 150

2. Install the two bolts securing the deck pivot shaft to the frame using a 1/2" Socket wrench.
Make sure the deck pivot brackets are installed correctly.
3. Install the two bolts, split washers and flat washers securing the front of the deck pivot bracket using
a 5/32" Allen wrench.
Install running deck

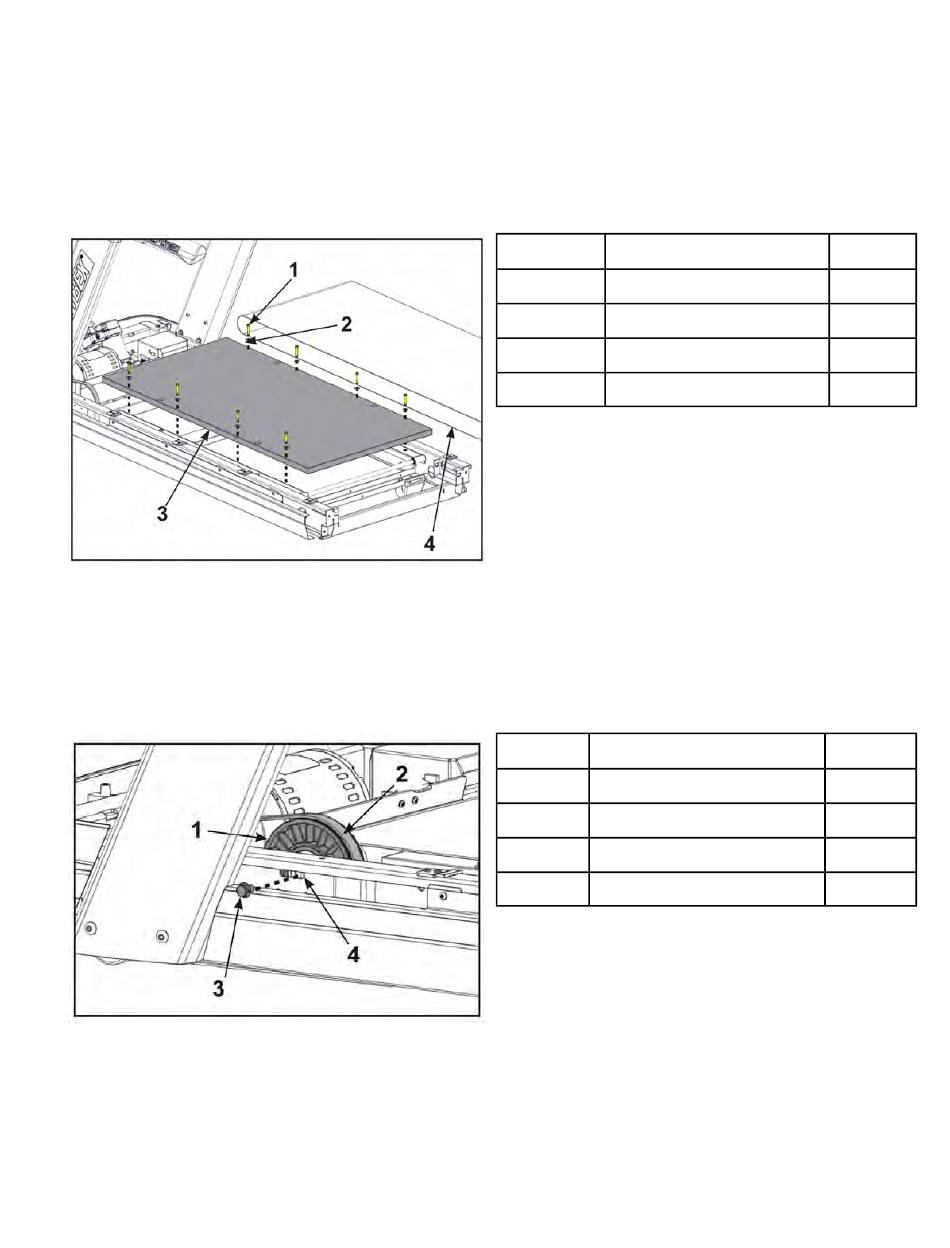

1. Place the deck in the correct position on the frame.
2. Install and tighten the eight screws and eight flat washers that hold the deck in place using a 7/16"
Socket wrench.
Install front roller
1. Slide the front roller into the running belt.
2. Slide the drive belt around the front roller before attaching the front roller.
Cybex 770T/790T Treadmill Part Number
Page 150 of 261
Item Description
1 7/16" Bolts
2 Flat washer
3 Running deck
4 Running belt
Item Description
1 Front roller
2 Drive belt
3 Mounting bolt
4 Tensioning slot
Qty.
8
8
1
1
Qty.
1
1
1
1
