CYBEX 770T Service Manual page 240

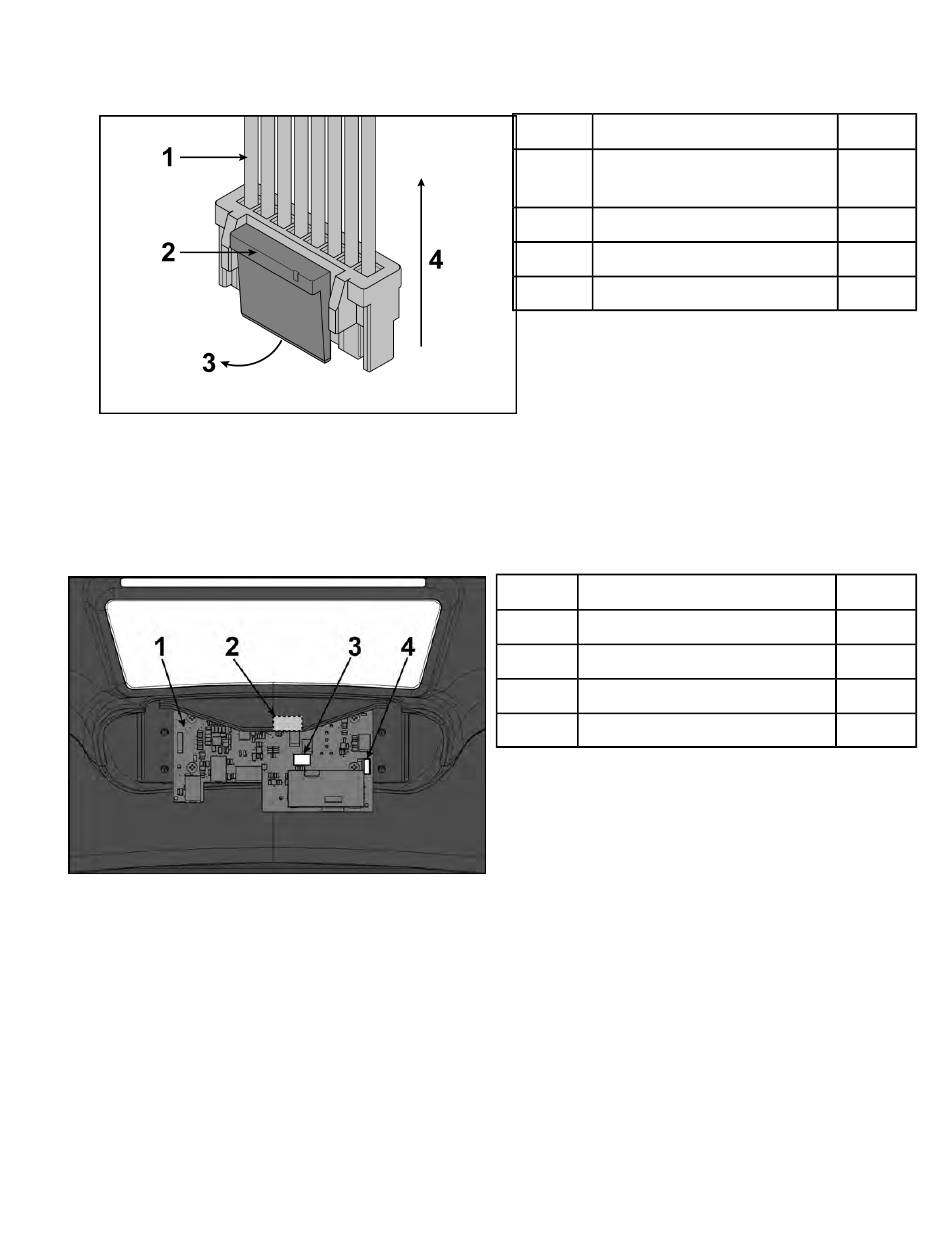

3. Unplug cables from MCC board by un-latching connectors with the following procedure:
a) Press in the top of the cable connector.
b) Ensure latch disengages the connector.
c) Unplug cable by holding down latch and pulling straight out from connector. Do not pull on wires,
remove by connector.
4. Carefully lift handset assembly and unplug the following cables: graphics board (J12), handset
membrane (J9), contact heart rate grips (J7) and the ground wire (located under the MCC board).
Cybex 770T/790T Treadmill Part Number
Page 240 of 261
Item Description
DO NOT PULL CONNEC-
1
TOR OUT BY THE WIRES!
2 Step a, Latch
3 Step b
4 Step c
Item Description
1 MCC board
2 Graphics board (J12)
3 Handset membrane (J9)
4 Contact heart rate grips (J7)
Qty.
1
1
1
1
Qty.
1
1
1
1
